Installation
CLEARANCES TO COMBUSTIBLES:
IMPORTANT: Attach the Mini’s Hearth Pad when installing the unit on a combustible floor. The supplied
hearth pad meet all the requirement of a proper hearth pad. If you do not use the supplied hearth pad a
hearth pad must be used when on combustible material.
If the Mini is installed on carpet the use of a solid material must be used under leveling legs.
ALCOVE CLEARANCES:
This unit may be installed in an alcove. Maintain these
clearances to combustibles.
Minimum Alcove width 36 inches (91.5 cm)
Minimum Alcove height 48 inches (122 cm)
Maximum Alcove depth 30 inches (76 cm)
Install vent at clearances specified by the
vent manufacturer.
Side Wall
Back Wall
Adjacent Wall
8"
(20cm)
3"
(7.5cm)
4" (10cm)
36"
(91.5cm)
30"
(76cm)
48"
(122cm)
These dimensions are minimum clearances but
it is recommended that you ensure sufficient
room for servicing, routine cleaning and
maintenance.
Side wall to unit 8 inches (20 cm)
Back wall to unit 4 inches (10 cm)
Corner to unit 3 inches (7.5 cm)

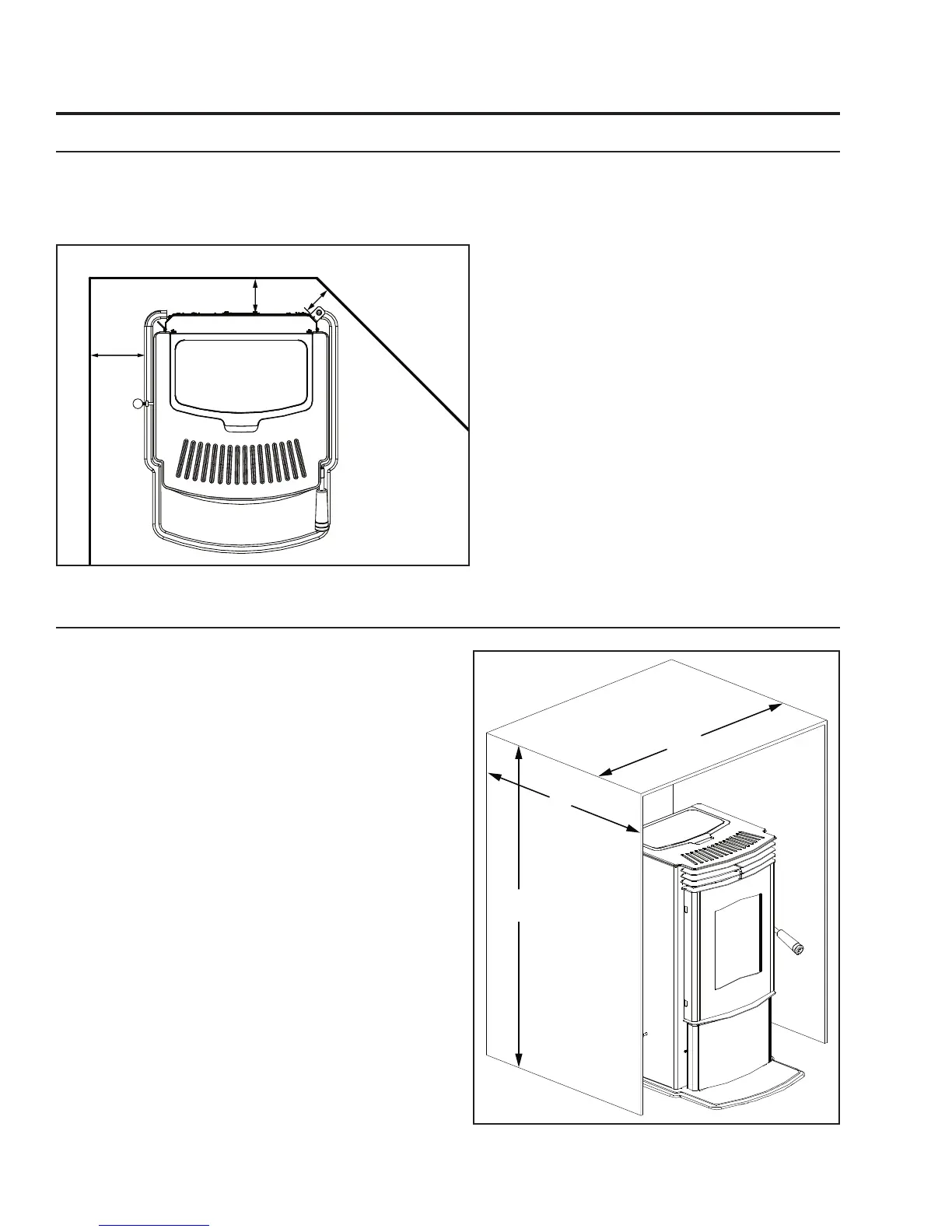

Figure 7: Mini Clearance to Combustibles.
Figure 8: Mini Minimum Alcove Size.
8
