Installation
HEARTH MOUNT INSTALLATION:
Rain cap
Storm collar
Seal plate (cover plate)
Existing masonry flue
Vent pipe (single wall
stainless flex pipe or
solid PL vent)
Fireplace damper
location
Clean out tee
Existing fireplace
Flexible vent connector
(use this 5 foot [152cm]
section of pipe to vent
past fireplace damper
or small shelf)
R
O
O
MA
IR
FA
N
O
N
/O
FF
O
N
/
O
F
F
FE
E
DR
A
TE
TR
IM
C
O
M
B
U
S
TIO
N
B
LO
W
E
RTR
I
M
H
E
A
TLE
V
EL
A
U
T
O/
O
F
F
H
I
G
H
/
L
O
W
MA
N
U
AL
A
UGE
R
MO
D
E

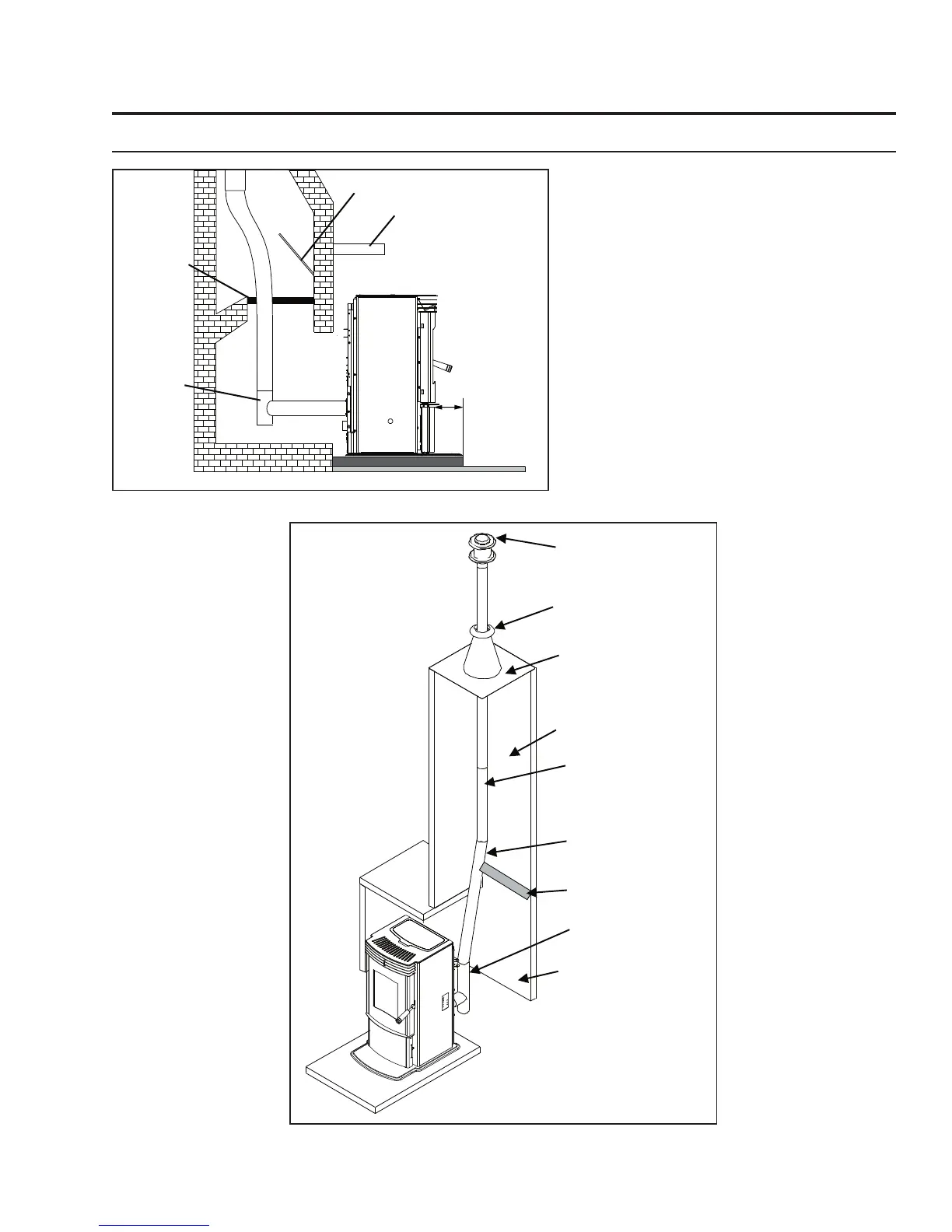

Figure 21: Freestanding hearth mount installation overview.
Refer to Figures 20 and 21.
1. Install the hearth pad.
2. Lock the fireplace damper in the open
position.
3. Install a positive flue connector at the
fireplace dampers or seal the chimney at
the top.
4. Connect a tee to the exhaust pipe.
5. Install flexible stainless steel liner or listed
pellet vent to the top of the chimney.
Flue
Connector
Figure 20: Freestanding hearth mount installation.
