FORM ET115.24-NOM11 (118)
ABOVE UNIT
ABOUT PIVOT POINT
CORNER PANELS ROTATE
0"
REQUIRED CLEARANCE
4" [102] MIN
REQUIRED CLEARANCE
BELOW UNIT
0" CLEARANCE BETWEEN UNIT AND STRUCTURE
CORNER PANELS ROTATED 90°
CAN BE LIFTED AND REMOVED
11" [279] MIN
REQUIRED CLEARANCE
BESIDE UNIT
CORNER PANELS
SHOWN ROTATED 90°
UNIT
INSTALLED
HALF
OPENED
FULLY
OPENED

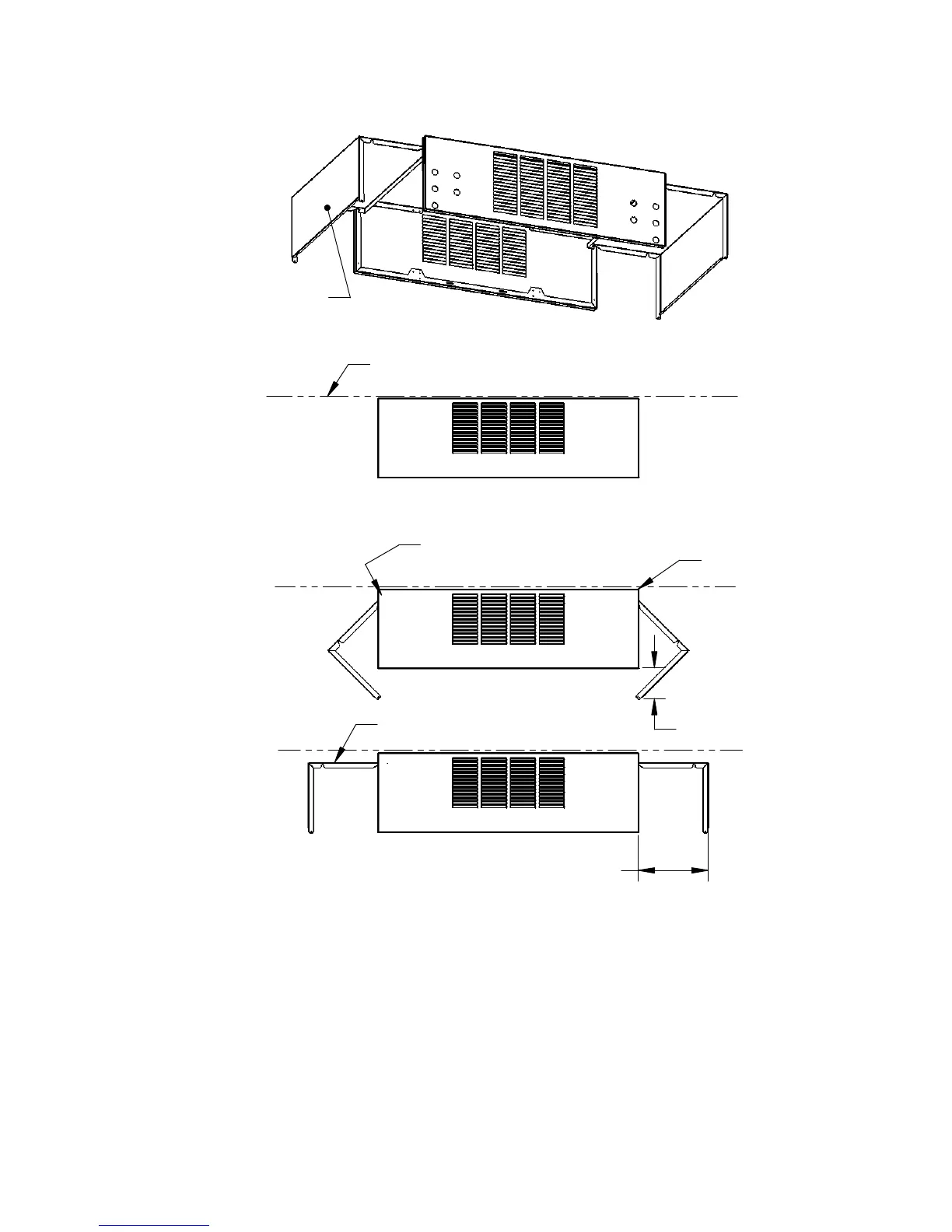

SERVICE AND CLEARANCE REQUIREMENTS: HEIGHT RESTRICTED APPLICATION
HORIZONTAL, LOW PROFILE EXPOSED UNITS
