ENVIRO-TEC
13
FORM ET115.24-NOM11 (118)

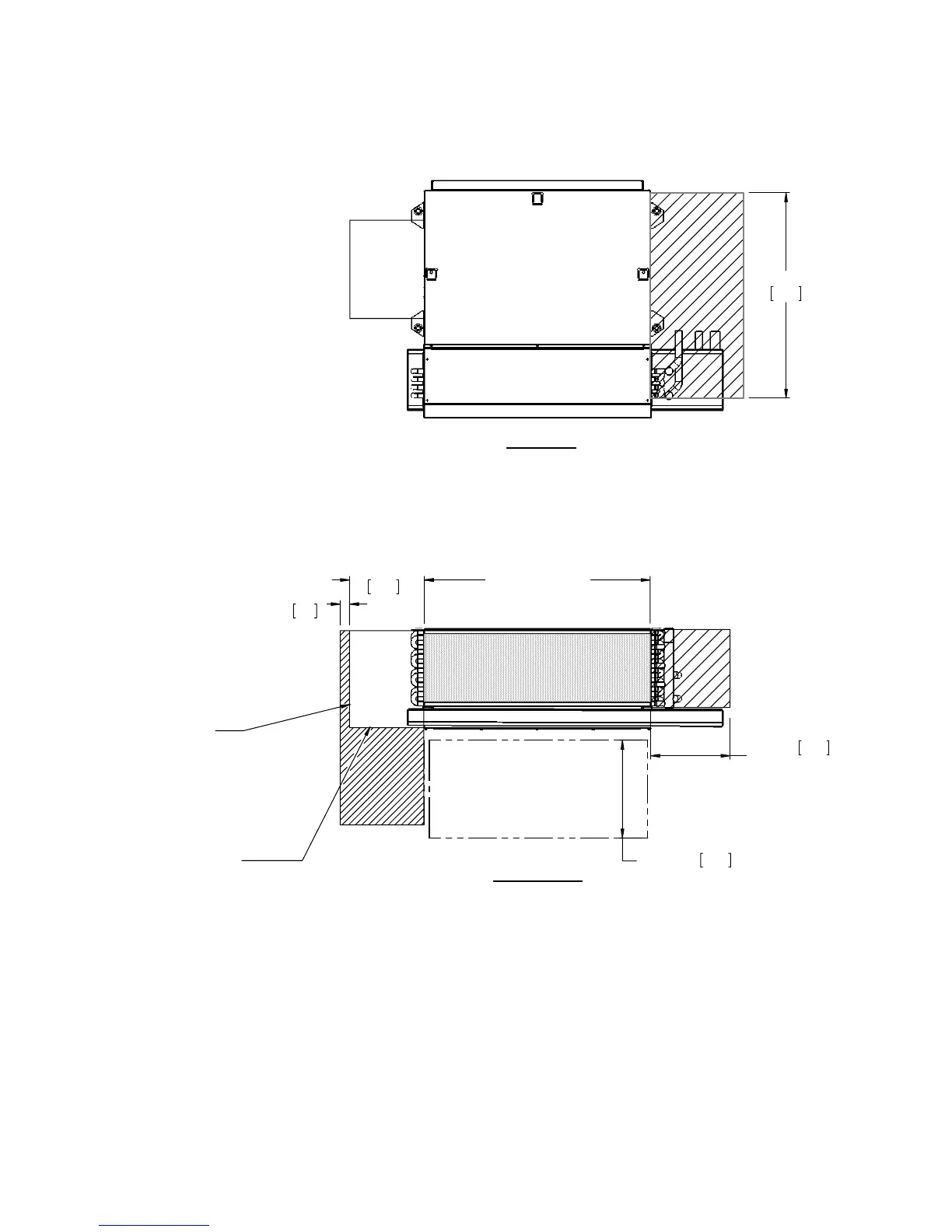

SERVICE AND CLEARANCE REQUIREMENTS: EXTERNAL SPACE REQUIREMENTS
8"
206
8 1/2"
216
OPTIONAL AUXILIRY
DRIP PAN
3"
77
SUPPLY AIR
OPENIG WIDTH
R10 1/2"
264
CONTROL ENCLOSURE
SEE NOTE 9
FRONT VIEW
LH SHOWN RH
OPPOSITE
22"
559
TOP VIEW
NOTES:
1. All chilled water piping that projects beyond the condensate pan or the optional auxiliary drip pan
must be field insulated by others.
2. Auxiliary drip pan shown above is optional, and is mounted on the outlet side of the drain pan.
3. Drain pan is installed with the outlet tube(s) on cooling coil connection end of coil on 4-pipe units with
optional opposite end connection.
4. Dimensions shown on this drawing apply to standard CW and HW valve packages. Refer to the
Piping Package Catalog for valve package code details. Contact factory for details on valve packages
using non-standard or customer furnished components.
5. Provide sufficient clearance to access electrical components and comply with all applicable codes and
ordinances.
HORIZONTAL, LOW PROFILE PLENUM AND FREE RETURN
8 1/2"
216
OPTIONAL AUXILIARY
DRIP PAN
SUPPLY AIR
OPENING WIDTH
10 1/2"
267
AIR FILTER CLEARANCE
8"
204
1"
25
CONTROL ENCLOSURE
SEE NOTE 5
FRONT VIEW
OPTIONAL
SIDE ACCESS
22"
559
TOP VIEW
NOTES:
1. All chilled water piping that projects beyond the condensate pan or the optional auxiliary drip pan
must be field insulated by others.
2. Auxiliary drip pan shown above is optional, and is mounted on the outlet side of the drain pan.
3. Drain pan is installed with the outlet tube(s) on cooling coil connection end of coil on 4-pipe units with
optional opposite end connection.
4. Dimensions shown on this drawing apply to standard CW and HW valve packages. Refer to the
Piping Package Catalog for valve package code details. Contact factory for details on valve packages
using non-standard or customer furnished components.
5. Provide sufficient clearance to access electrical components and comply with all applicable codes and
ordinances.
