DRAIN
The drain should be checked before initial start-up and
at the beginning of each cooling season to assure that
the lines are clear. If it is clogged, steps should be taken
to clear the debris so that condensate will ow easily.
Periodic checks of the drain should be made during the
cooling season to maintain a free owing condensate.
CONDENSATE FLOAT SWITCH INSTALLATION
Ensure oat switch assembly is rmly secured to the
bracket. Ensure top of oat is below rim of pan. Switch
will trip when the water level reaches a point even
with top of oat when oat is in the down position.
Sensitivity may be adjusted by threading switch
assembly downward out of bracket if necessary.
Test switch by lifting oat with unit on. Unit should
stop running if switch is correctly wired. Test switch
sensitivity by lling pan and conrm switch stops unit
before pan overows.
Supplier’s install instructions
1. Disconnect power to unit at main panel.
2. Clip switch bracket onto side of pan at low end
and press rmly into place ensuring switch wires
are positioned up ensure oat moves freely.
3. Secure bracket into side of pan using self-tapping
sheet metal screw through upper hole in bracket.
4. Ensure oat switch assembly is rmly secured
to bracket. Ensure top of oat is below rim of
pan. Switch will trip when water level reaches
a point even with top of oat (when oat is in
down position). Sensitivity may be adjusted by
threading switch assembly downward out of
bracket if necessary.
5. Ensure wiring matches the wiring diagram
provided with the unit.
6. Test switch by lifting oat with unit on. Unit
should stop running if switch is correctly wired.
7. Test switch sensitivity. Fill pan and conrm that
switch stops unit before pan overows.
8. Follow all Lock-Out Tag-Out procedures when
performing condensate oat switch maintenance.

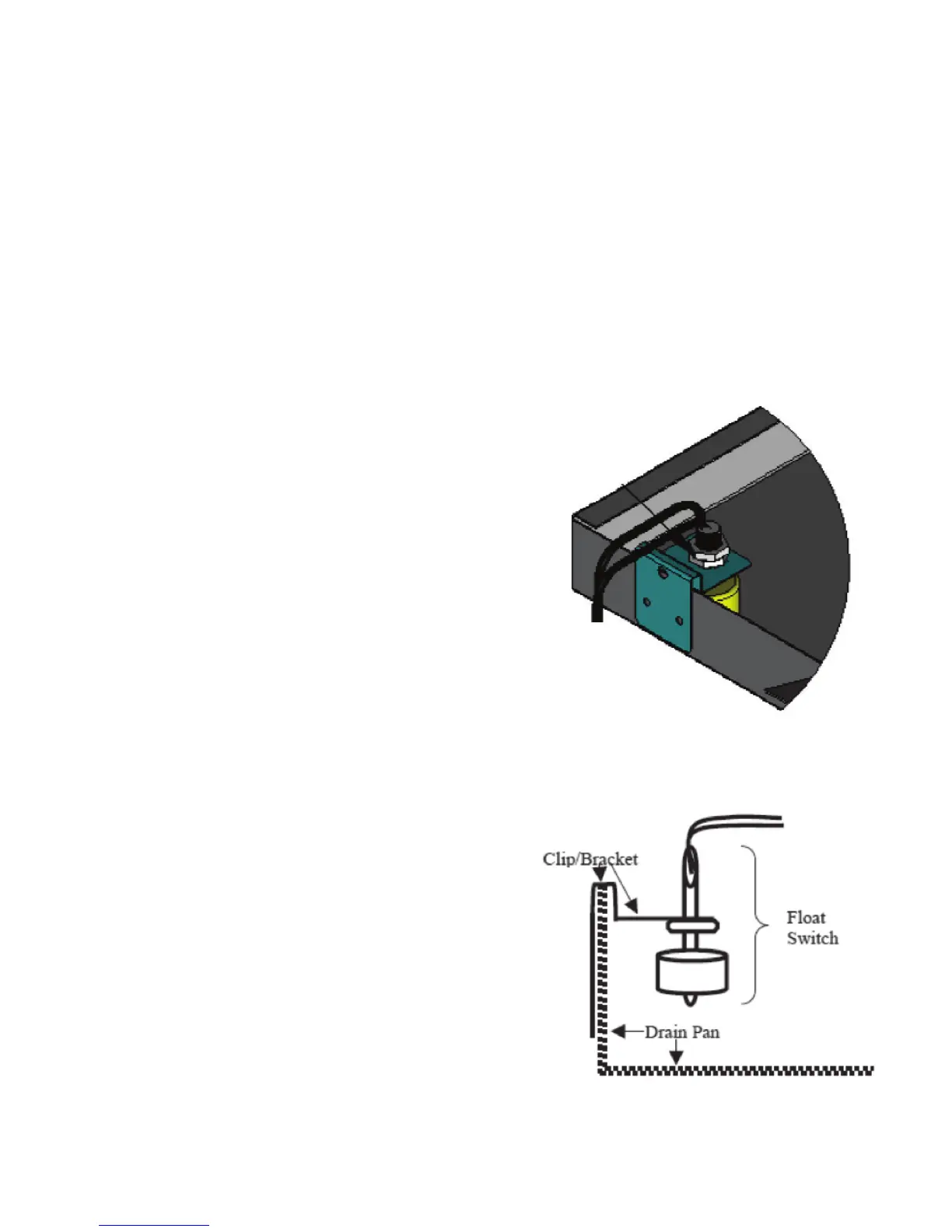

Figure 8b: Drain pan oat switch diagram
Figure 8a: Drain pan oat switch installed
Should the growth of algae and/or bacteria be a
concern, consult an air conditioning and refrigeration
supply organization familiar with local conditions for
chemicals available to control these agents. If cleaners
are used, they should be compatible with the materials
of construction for the coil and drain pan.
