Enviro WINDSOR User Manual

Installation

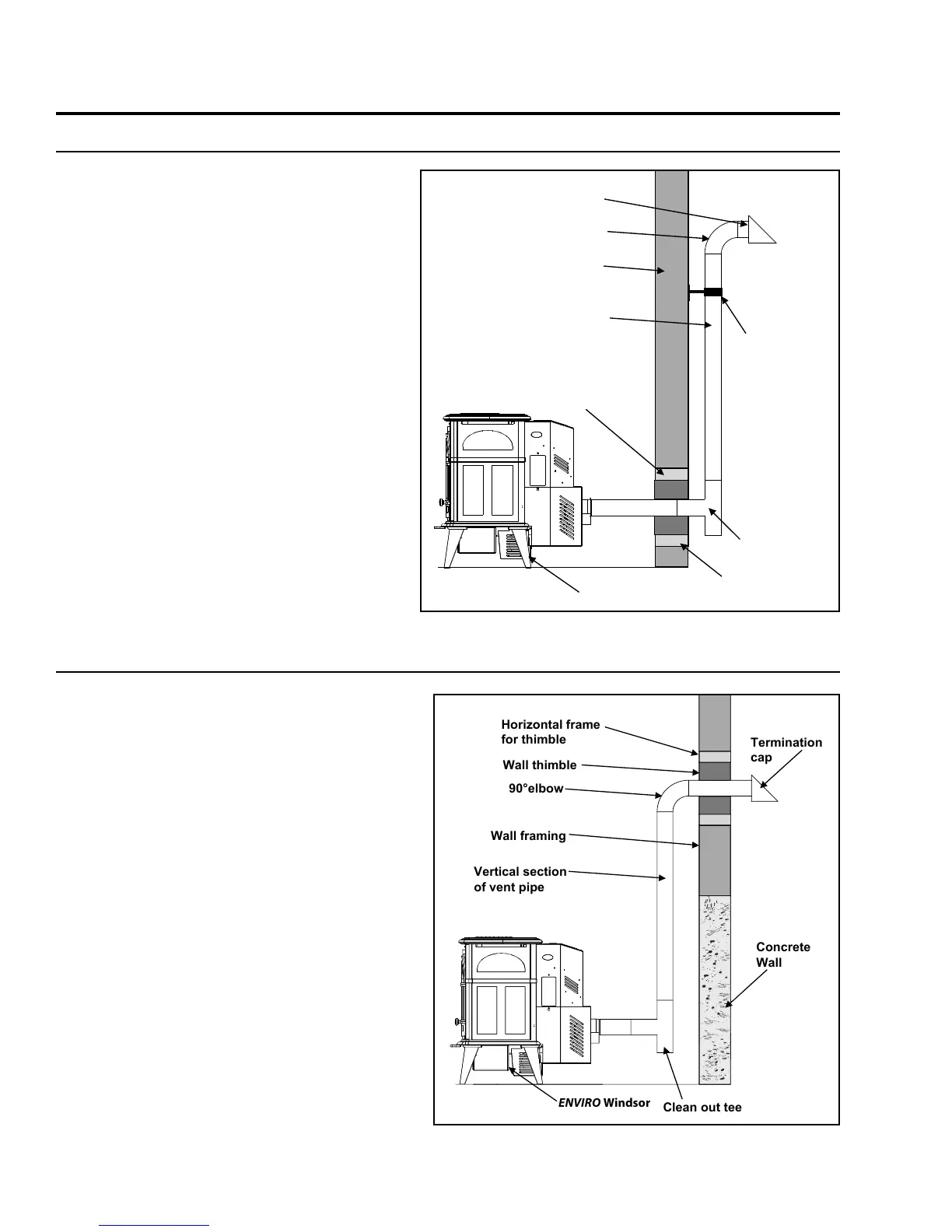

VERTICAL RISE WITH HORIZONTAL TERMINATION INSTALLATION (RECOMMENDED):
A 45° elbow with a rodent screen may be used
in place of the termination cap (or stainless
steel termination hood).
THROUGH CONCRETE WALL WITH VERTICAL RISE INSTALLATIONS:
A 45° elbow with a rodent screen may be used
in place of the termination cap (or stainless
steel termination hood).
This is the recommended installation to use if
there is a concrete or retaining wall in line with
exhaust vent on pellet stove.
The termination must be 12” (305 mm) from
the outside wall and 12” (305 mm) above the
ground.
Figure 17: Vertical rise with Horizontal Termination.
Figure 16: Through Wall with Horizontal Termination.
18
Wall framing
Wall thimble
Termination
cap
Vertical section
of vent pipe
Horizontal frame
for thimble
Clean out tee
90°elbow
 
Concrete
Wall
Wall framing
Wall thimble
Termination cap
Vertical section
of vent pipe
Clean out tee
 
Wall strap
90°elbow
Horizontal frame
for thimble

Enviro WINDSOR Specifications

General

Hopper Capacity	60 lbs
Ignition	Automatic
Thermostat	Yes
Fuel Type	Pellet
Venting	3" or 4"
