WINDSOR
-
Components
December
2004
P
ar
ts Diagr
am - Components
34
33
35
Table of Contents
Table of Contents
2
Introduction
3
Pellet Quality
3
Rating Label Location
3
Important Safety Data
4
Safety Warnings and Recommendations
4
Operating Instructions
6
Automatic Safety Features
6
Control Board Functions
6
Operating Your Pellet Stove
7
Turning Your Pellet Stove off
7
Routine Cleaning and Maintenance
8
Installation
11
Deciding Where to Locate Your Pellet Appliance
11
Removing Pellet Stove from Pallet
11
Dimensions
12
Clearances to Combustibles
12
Alcove Clearances
13
Mobile Home Installation
13
Exhaust and Fresh Air Intake Locations
14
Outside Fresh-Air Connection
14
Vent Termination Requirements
15
Corner through Wall Installation
16
Horizontal Exhaust through Wall Installation
16
Vertical Rise with Horizontal Termination Installation (Recommended)
18
Through Concrete Wall with Vertical Rise Installations
18
Inside Vertical Installations
19
Outside Vertical Installations
20
Hearth Mount Installation
21
Installation with Exterior Mounted Exhaust Blower
22
Through Wall Vertical Installation with Exhaust Blower
24
Thermostat Installed
25
Slider/Damper Setting
25
Troubleshooting
27
Wiring Diagram
28
Fuses
29
Wiring Diagram
30
Parts List
31

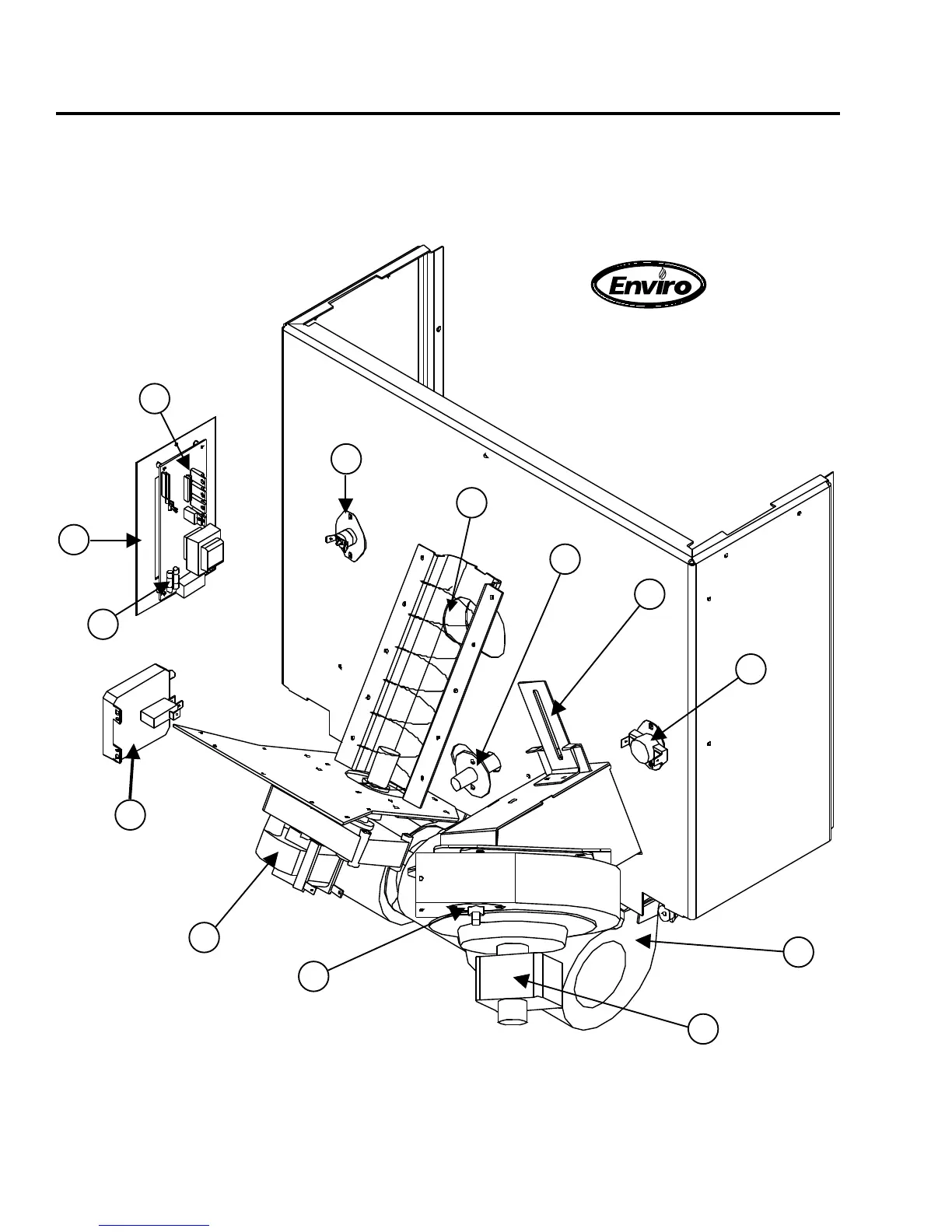

Parts Diagram - Components
34
Parts Diagram - Steel & Cast
35
Warranty
36
Installation Data Sheet
37
Other manuals for Enviro WINDSOR
Technical Manual
34 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Enviro WINDSOR and is the answer not in the manual?
Ask a question
Enviro WINDSOR Specifications
General
Hopper Capacity
60 lbs
Ignition
Automatic
Thermostat
Yes
Fuel Type
Pellet
Venting
3" or 4"
