Storm Collar
Roof Flashing
Roof Rafters
Roof Sheathing
Ceiling Joist
Vertical Vent Pipe
Outside Vent
Termination
Exterior Wall
Sheathing
Rain cap - ensure
cap is at least 2'
(610mm) above
the roof at the
lowest point
24
Installation
THROUGH WALL VERTICAL INSTALLATION WITH EXHAUST BLOWER:
Refer to INSTALLATION - INSTALLATION WITH EXTERIOR MOUNTED EXHAUST BLOWER and INSTALLATION - OUTSIDE VERTICAL
INSTALLATIONS. Ensure that vent pipe is properly secured to wall using wall straps. Maintain clearances to
combustibles on vent pipe as well as unit.

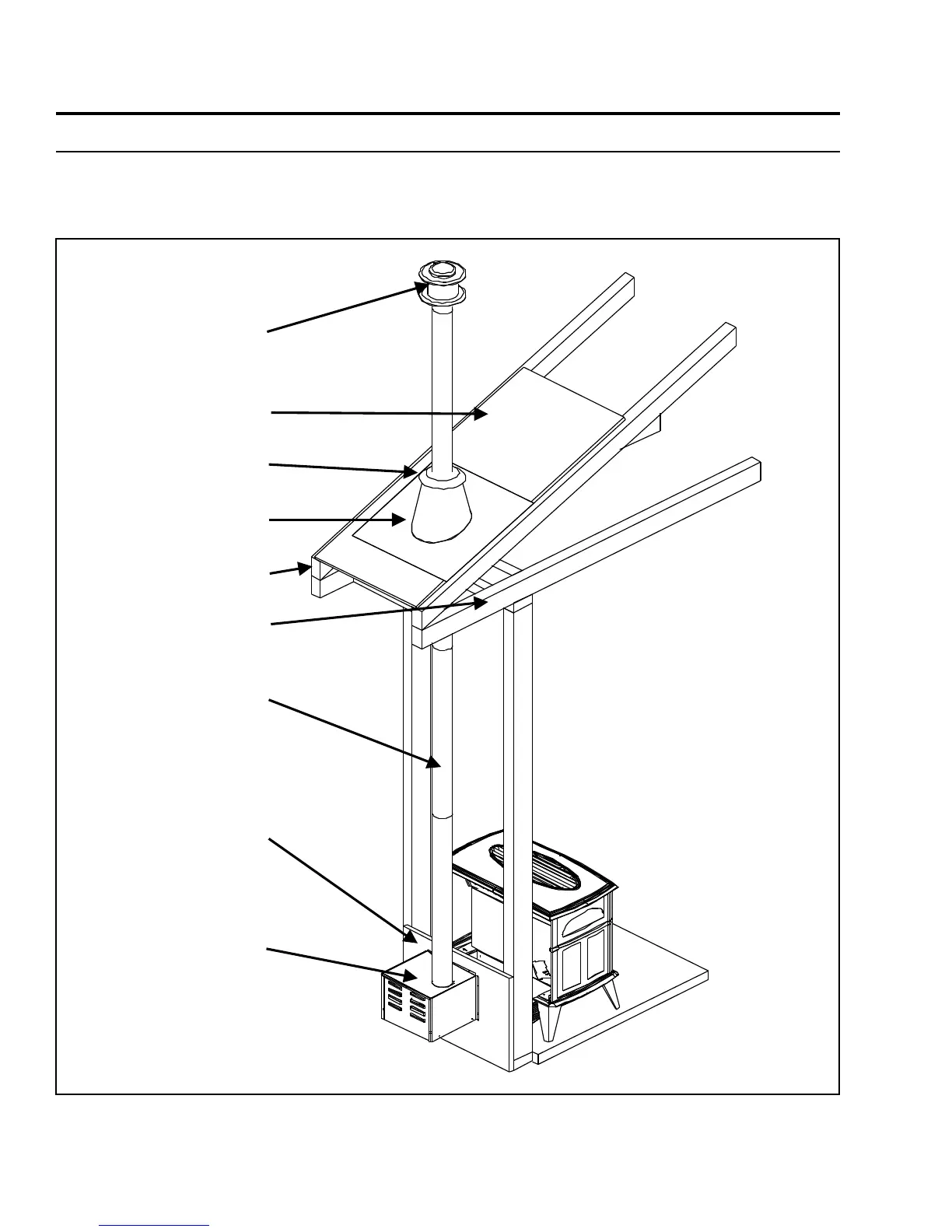

Figure 25: Exhaust Blower Installation; Vertical Termination.
