ONE STAGE LIGHT OIL BURNERS
13 / ...
000608....._2006/09
N° 0002933250
Rev. 26/09/00
MAINTENANCE
Most components can be inspected by removing the hood. To inspect the head you must disassemble the component-carrying
plate which can be hung on hung on the burner body in two different positions to make work as practical as possible. The motor,
transformer and solenoid valve are connected via a connector while the photo-resistor is push-locked into place.

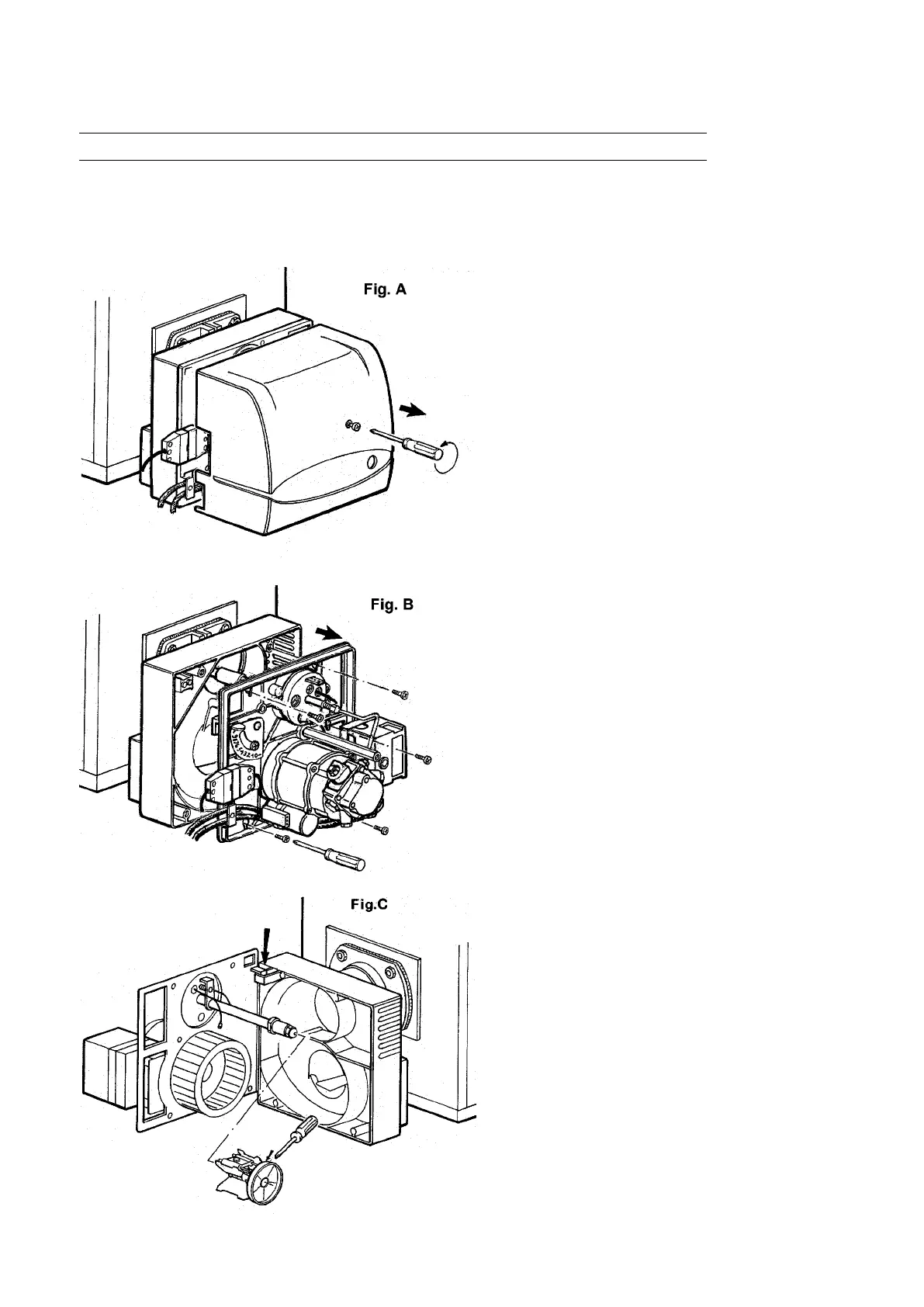

1) Undo the lid screw to gain access to the
interior of the burner.
2) Undo the 4 screws of the plate, as indicated,
in order to access nozzle, electrodes and
pre-heater (if tted).
3) The plate must be hung up as illustrated
in g. C.
