EOGB BTL 0 - Electric Connections

ONE STAGE LIGHT OIL BURNERS
16 / ...
000608....._2006/09
N° BT 2125/2
Rev. 17/07/96
H0 -BLOCK LAMP
H1 -OPERATION LIGHT
FR -PHOTO RESISTANCE
TA -IGNITION TRASFORMER
TS -SAFETY THERMOSTAT
TC -BOILER THERMOSTAT
LOA .. -CONTROL BOX
V1 -ELECTROVALVE
MV -FAN MOTOR
P1 -HOUR METER
L1 - FASE/PHASE/PHASE
PHASE/FASE
- TERRA/GROUND/TERRE
ERDE/TIERRA
N - NEUTRO/NEUTRAL/NEUTRE
NULLEITER/NEUTRO
The electrical lines should be at an adeguate distance from hot parts.It is advisable to make all the connections
with exible elecric wire. Conductor’s minimun section 1,5 mm
2
.

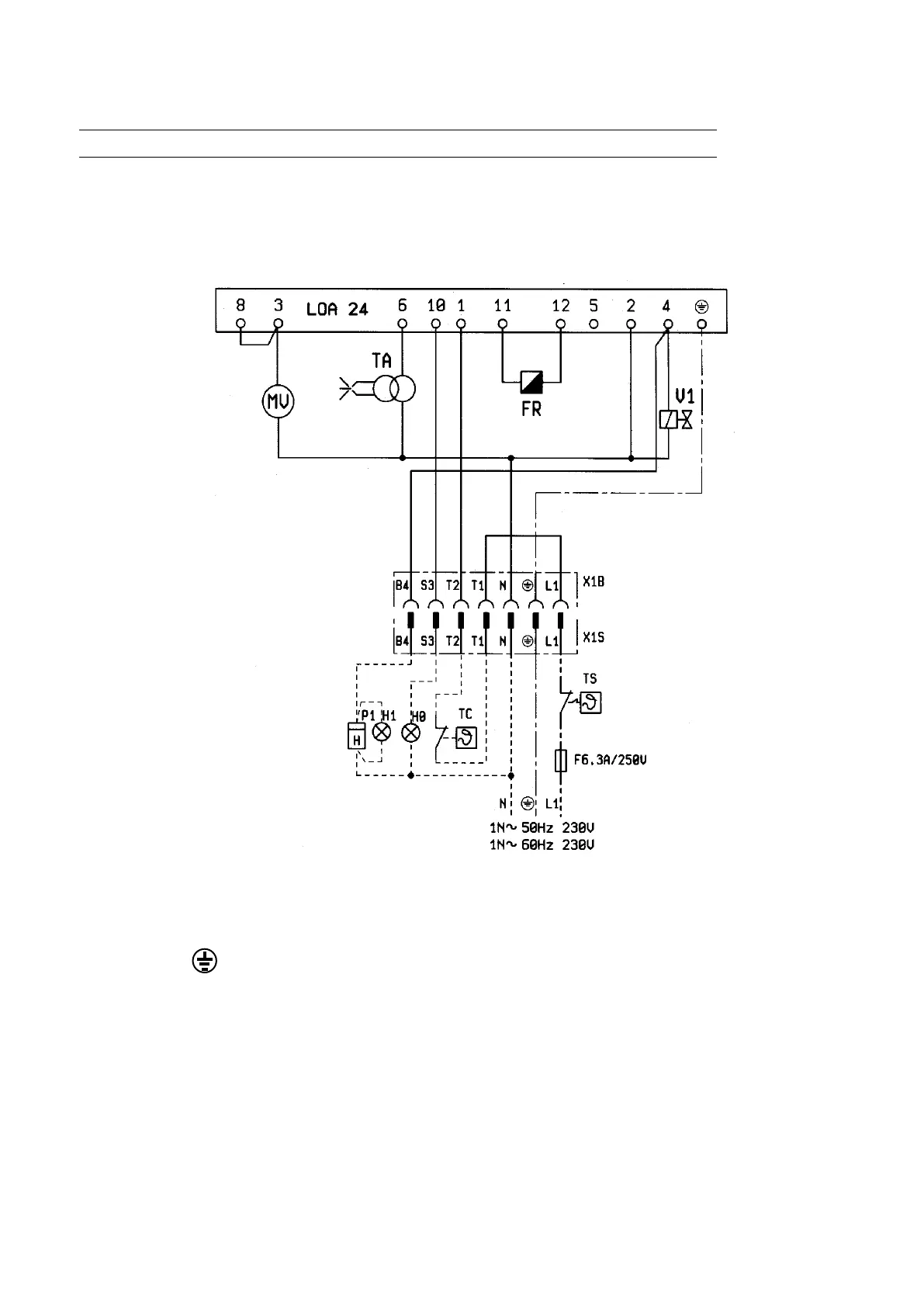

ELECTRIC CONNECTIONS
