ONE STAGE LIGHT OIL BURNERS
15 / ...
000608....._2006/09

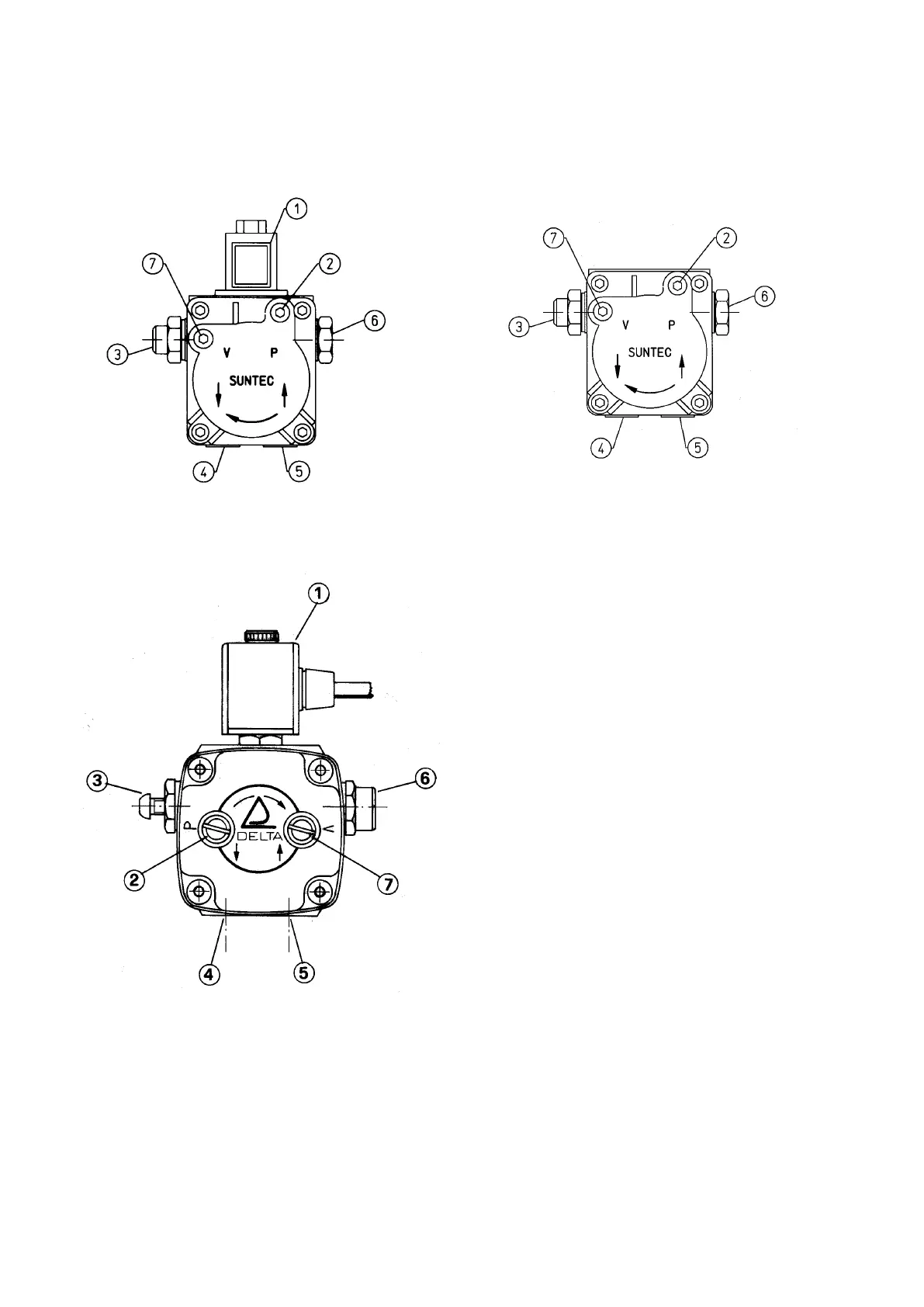

1 ELECTROVALVE (USUALLY CLOSED)
2 PRESSURE TEST POINT AND PURGE POINT
(1/8”)
3 PRESSURE REGULATION SCREW
4 RETURN
5 SUCTION
6 DELIVERY TO NOZZLE
7 VACUUM TEST POINT (1/8”)
N.B. The pump is preset at a 12 bar pressure
SUNTEC AS 47C 1538
BT 8930/1
Rev 21/04/94
N°0002900910
Rev. 04/05/00
SUNTEC AE 47C 1387
DELTA VM 1 LR 24
N° 0002900340
Rev 21/04/94
