EOGB BTL 0 - Page 7

ONE STAGE LIGHT OIL BURNERS
7 / ...
000608....._2006/09

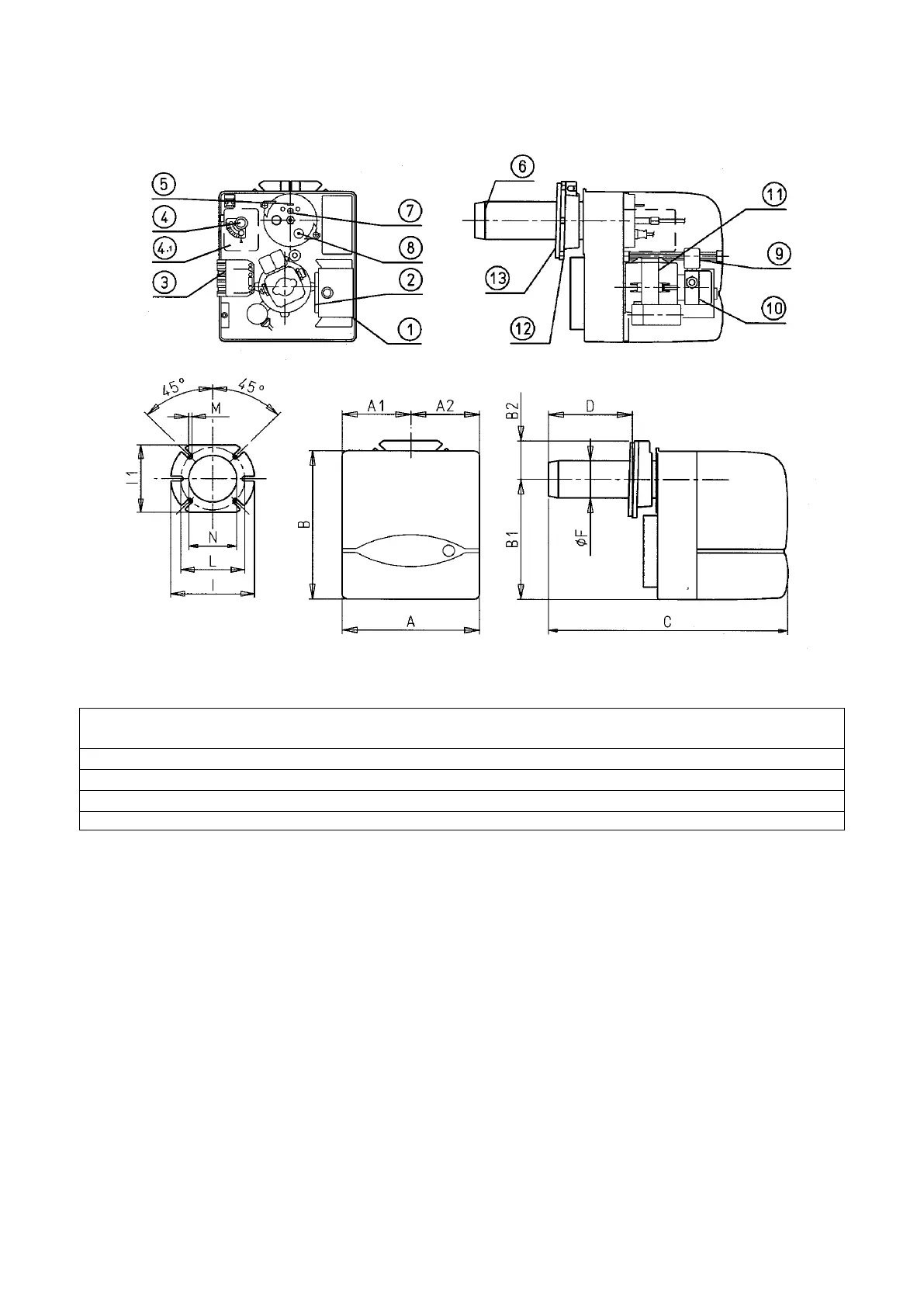

1) Control box
2) Ignition transformer
3) 7 pole connector
4) Air-damper adjusting screw
5) Reference for disk head positioning
6) Combustion head
7) Disk head adjusting screw
8) Photo-resistance
9) Electrovalve
10) Light-oil pump
11) Motor
12) Burner connection ange
13) Insulating gasket
A A1 A2 B B1 B2 C D D F I I1 L L M N
MIN MAX MIN MAX
BTL 0 245 122,5 122,5 270 218,5 70 410 50 105 80 170 140 130 155 M8 85
BTL 4 245 122,5 122,5 270 218,5 70 410 50 105 80 170 140 130 155 M8 85
BTL 6 245 122,5 122,5 270 218,5 70 455 50 150 90 170 140 130 155 M8 95
BTL 10 245 122,5 122,5 270 218,5 70 480 70 158 90 170 140 130 155 M8 95
