5 SOFTWARE OPERATIONS
This section explains the software features. The buttons, checkboxes or active items in the user interface include a
pop-up help function which appears when the mouse is held over the item for few seconds.
5.1 MAIN CONTROLS
This section describes the main controls of the user interface.

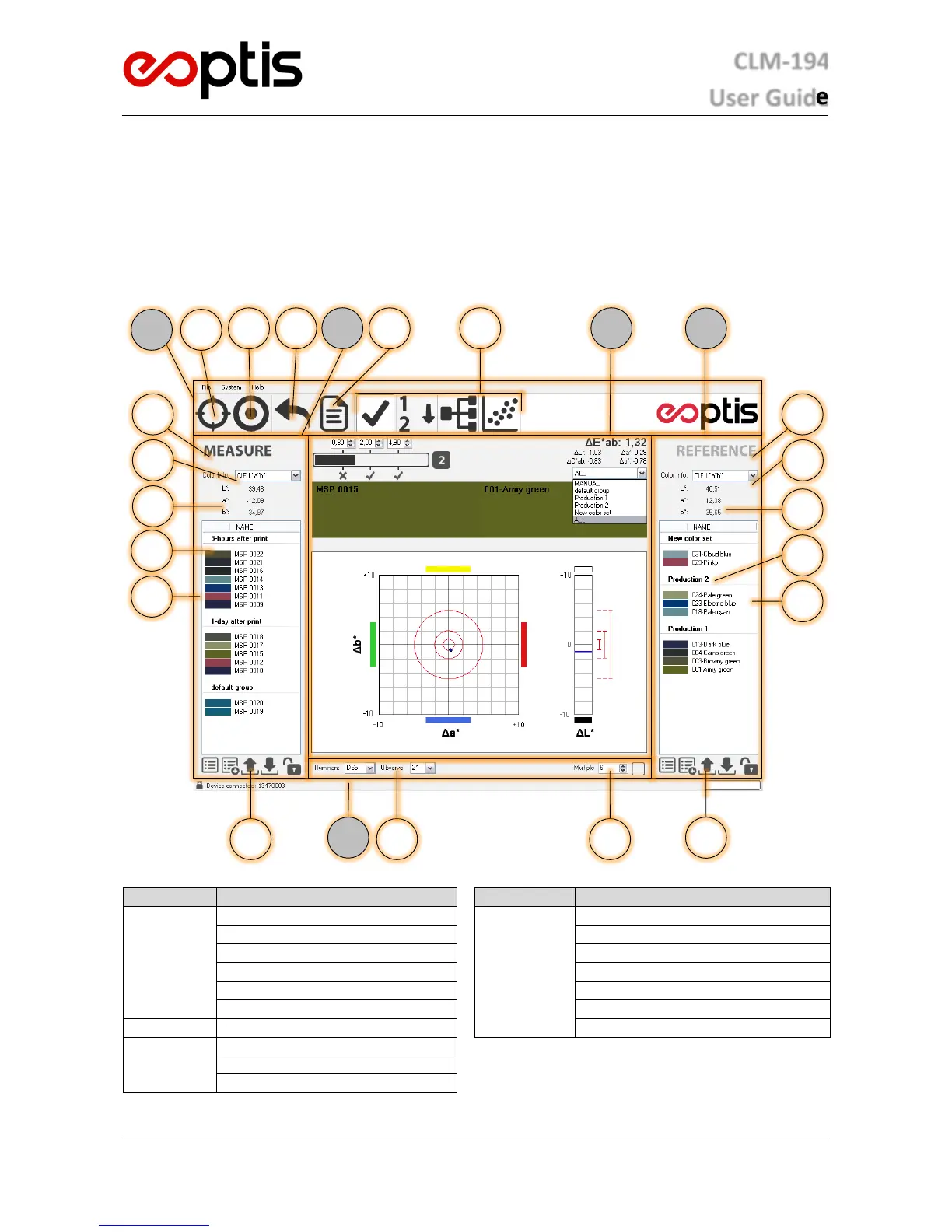

Main controls
Item
Description
Item
Description

Main menu with toolbar

Measure/Reference control panel

Measure Acquisition button

Measure/Reference active indicator

Reference Acquisition button

Colour space selector

Undo button

Colour coordinates

Operating Mode selector

Colour Groups

Save Report button

List of Measures/References

Output control panel

Database control buttons

Advanced control panel

Illuminant/Observer selection

Multiple Acquisition control
6
1
4
2
3
7
10
1
5
8
9
10
6
7
5
8
9
11
12
2
4
3
5
13
