5.6 L*A*B* CHART
The L*a*b* chart displays all the colours in the Measure list on a graphical representation of the
CIELAB colour space. This provides the user with visual information about where the sample lie in
the colour space.

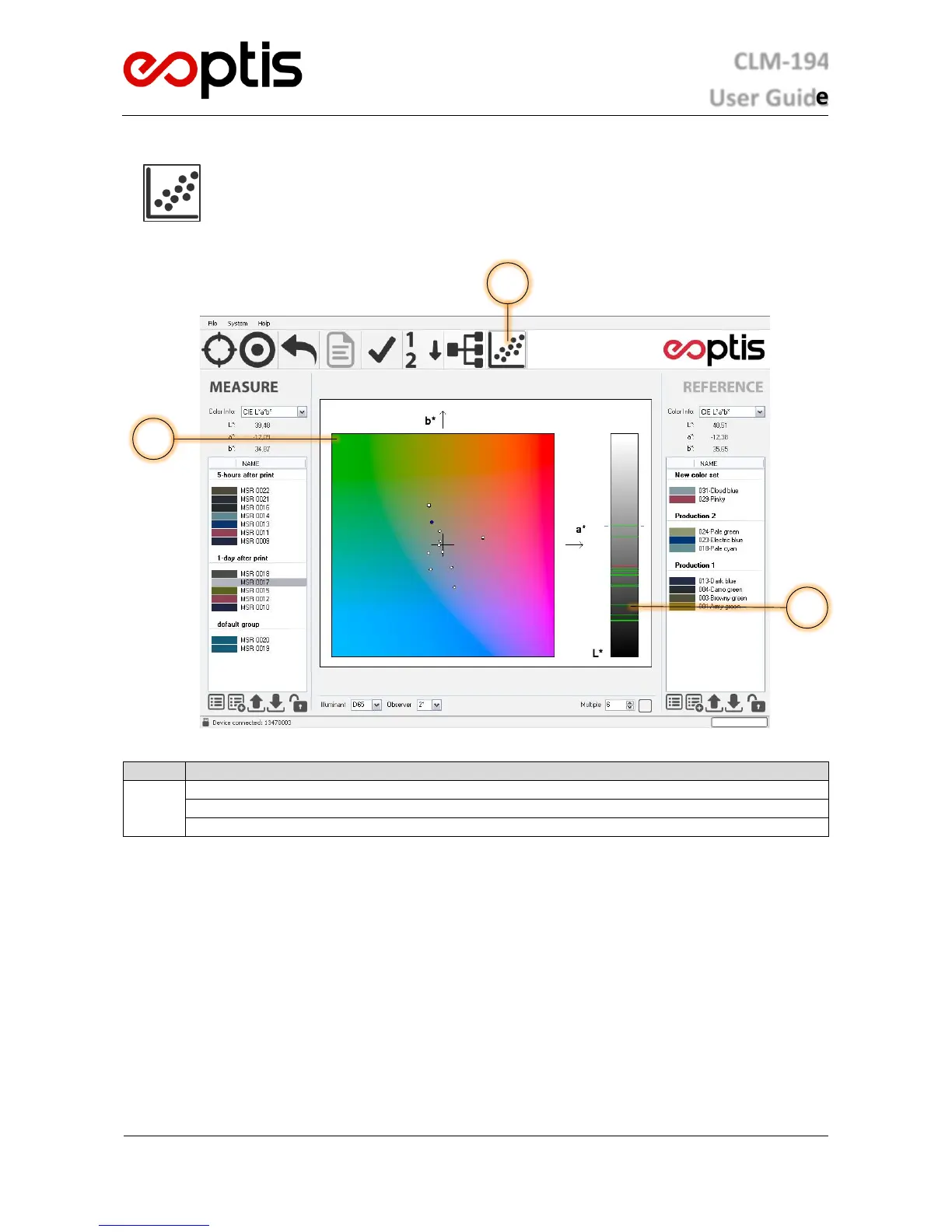

CIELAB Chart interface
Item
Description

CIELAB Chart Mode selector

Chromaticity plot (a*, b*)

Lightness plot (L*)
2
3
1
