EP Equipment PB2000 - Guide to Components; Main Frame

( 4 )
GB-6210 Manual
5
6
4
7
8
2
3
1

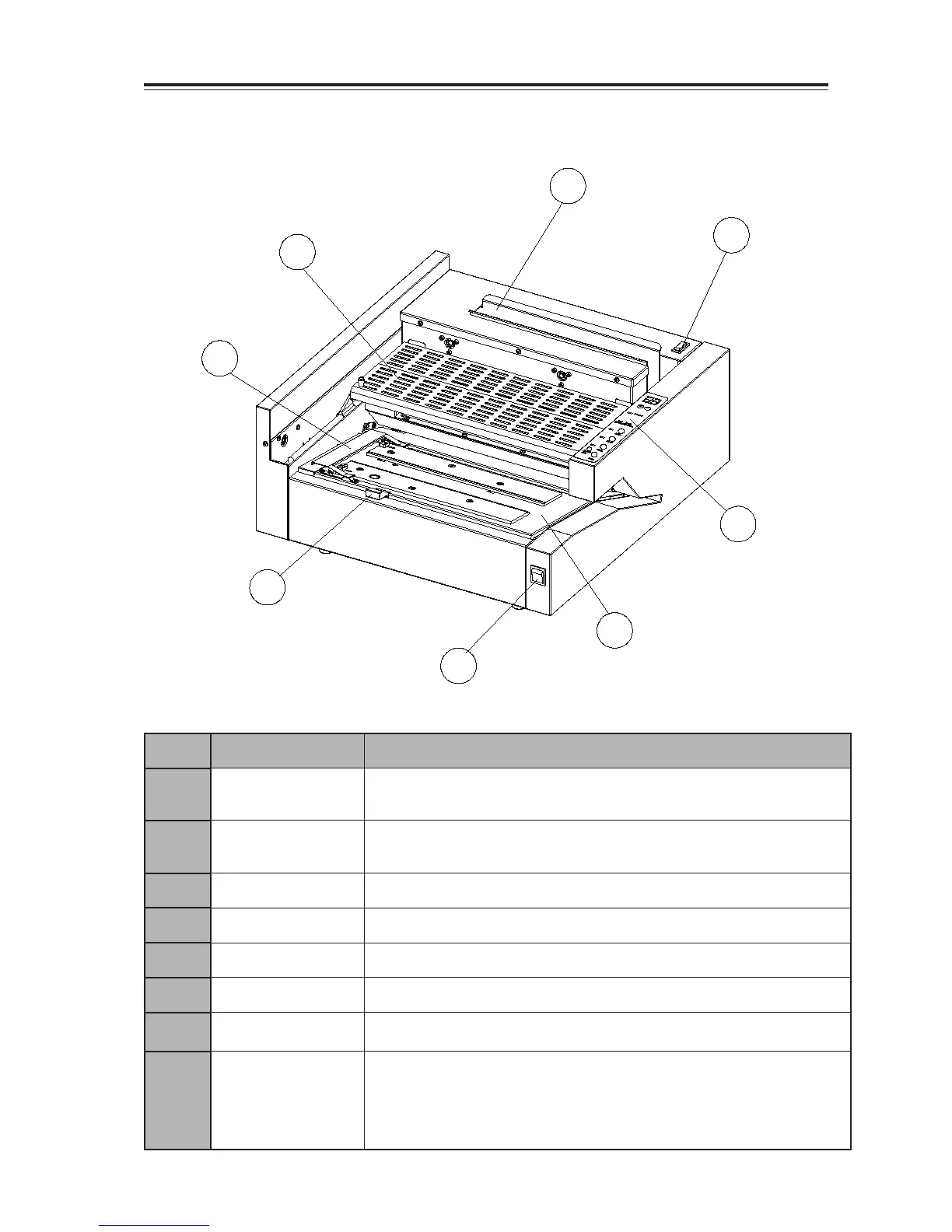

2-1 Main Frame
Name Function
2-1-1
Clamper
This clamps sheets to be bound and carries to the Roughing
cutter and the melt tank
2-1-2
Clamper Open/
Close Switch
Used to open / close the clamper, used only in Hand mode
2-1-3
Control Panel The control panel
2-1-4
Nipper Used to nip cover and sheets to form spine
2-1-5
Main Switch Used to turn ON / OFF main power
2-1-6
Cover Gauge Used to regulate cover position
2-1-7
Cover Set Guide Used to fix cover
2-1-8
Melt Tank Cover
Used to cover the melt tank and roughing cutter. Keep your
hands off from the melt tank and glue application roller and
roughing cutter when the cover is open
2. Guide to Components
