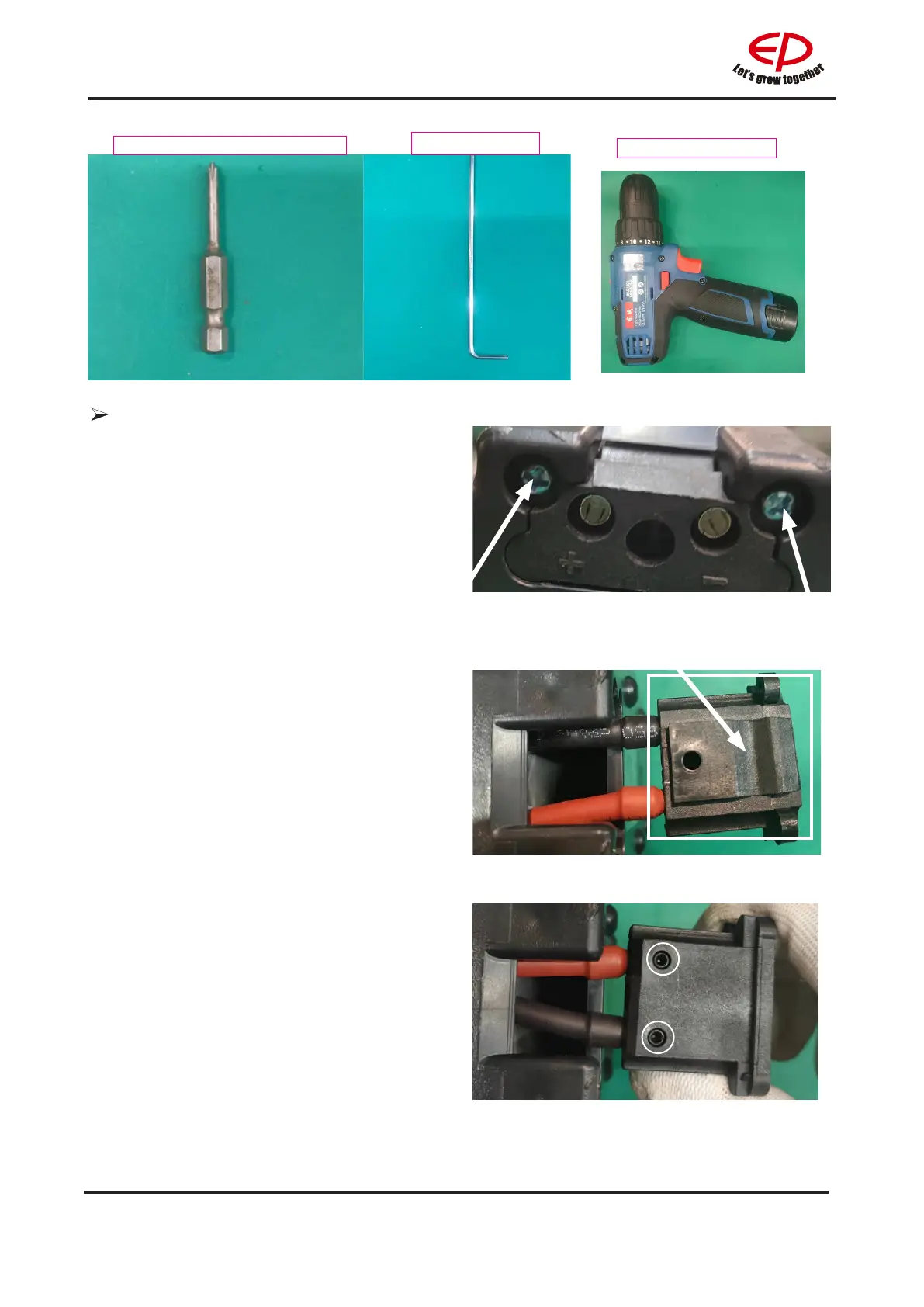

• Unscrew the two screws from the battery
bottom module using electric screwdriver
and PILLIPS Screwdrivers;
• Pull out of the charging and discharging
module;
• Unscrew the two screws from the charging
and discharging module using 2 Allen
wrench;
Electric screwdriver
2 Allen wrench
PILLIPS Screwdrivers
charging and discharging module
Connector pins removal and installation
steps:
