EPH Controls CP4B - Wiring Diagram

5
www.ephcontrols.com
If mains voltage output is required, 230V must be connected to
terminal COM.
Important: Do not connect Mains Voltage to OpenTherm®terminals.
Wiring Diagram
ONO T OFF COM
(OpenTherm)

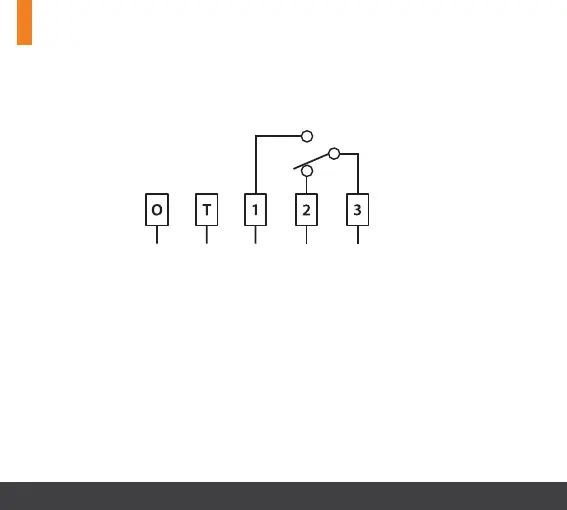

Internal Wiring Diagram for CP4B
