8
CP4M

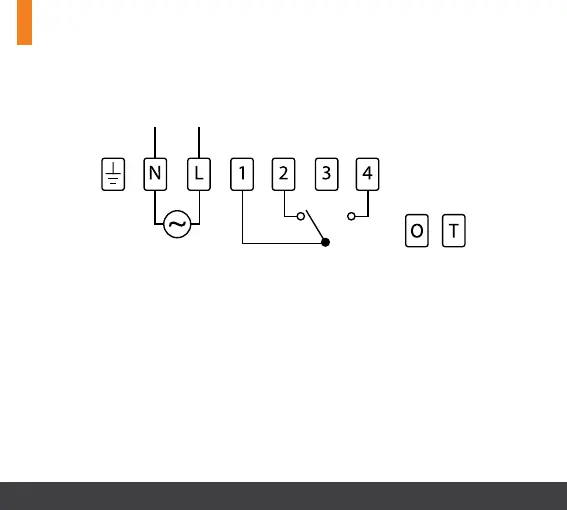

Wiring diagram
If mains voltage output is required, terminal L & 1 must be electrically linked.
The cable link is provided with this thermostat.
200-240Vac
50Hz-60Hz
CONTACT RATING: 250Vac~/7A
OFFCOM
ON
