EPH Controls R17 - Wiring Diagram

6
R17
V2
Wiring Diagram
LN
COM OFF ON
200-240V~
50/60Hz

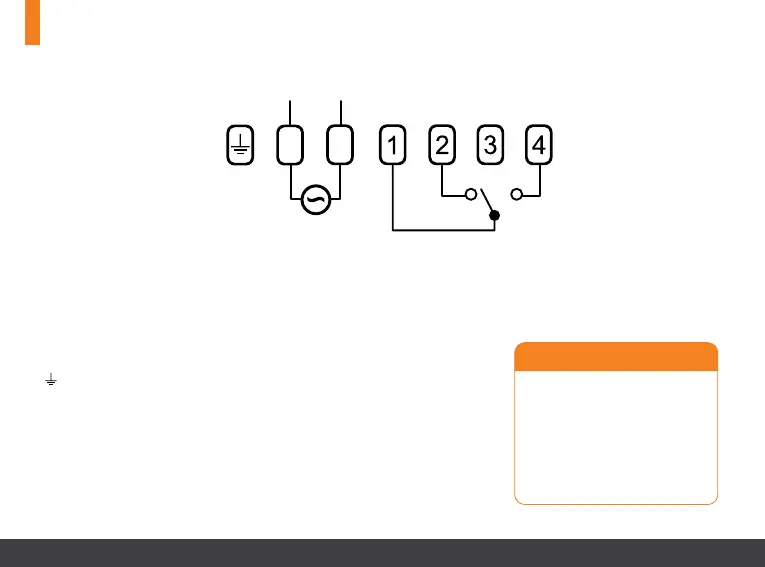

Terminal Connections
Earth
N Neutral
L Live
1 COM - Common Connection
2 OFF - N/C Normally Closed Connection
4 ON - N/O Normally Open Connection
Mains Switching
- Link L to 1.
Low Voltage Switching
- Remove the external controls link
from the boiler PCB.
- Connect 1 and 4 to these terminals.
Switching Options
