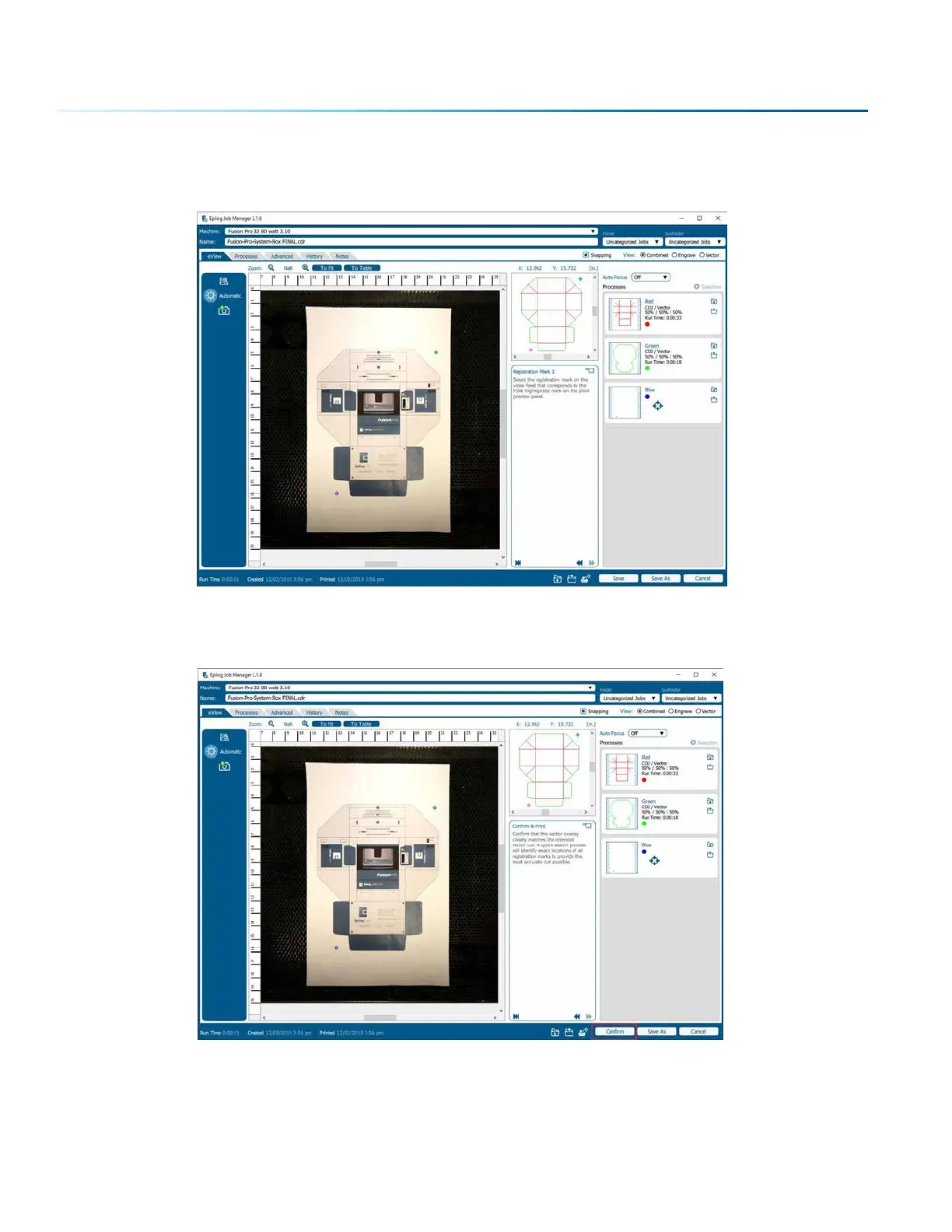

4. The Job Manager will prompt you to select the registration marks on the video feed as they are

highlighted on the print preview panel.

5. The Dashboard will then ask you to confirm that the vector overlay closely matches the intended

vector cut. Select “Confirm”.

- 124 -

SECTION 8: SYSTEM FEATURES
