Epilog Laser Helix - Preparing for New Belt Installation; Routing and Connecting the New Belt

8. Lift the I-beam carefully. Use caution when lifting
the right side of the I-beam. Bring the right side
forward a little to ensure the motor clears the frame
rail.
Re-Installing the X-Axis Assembly

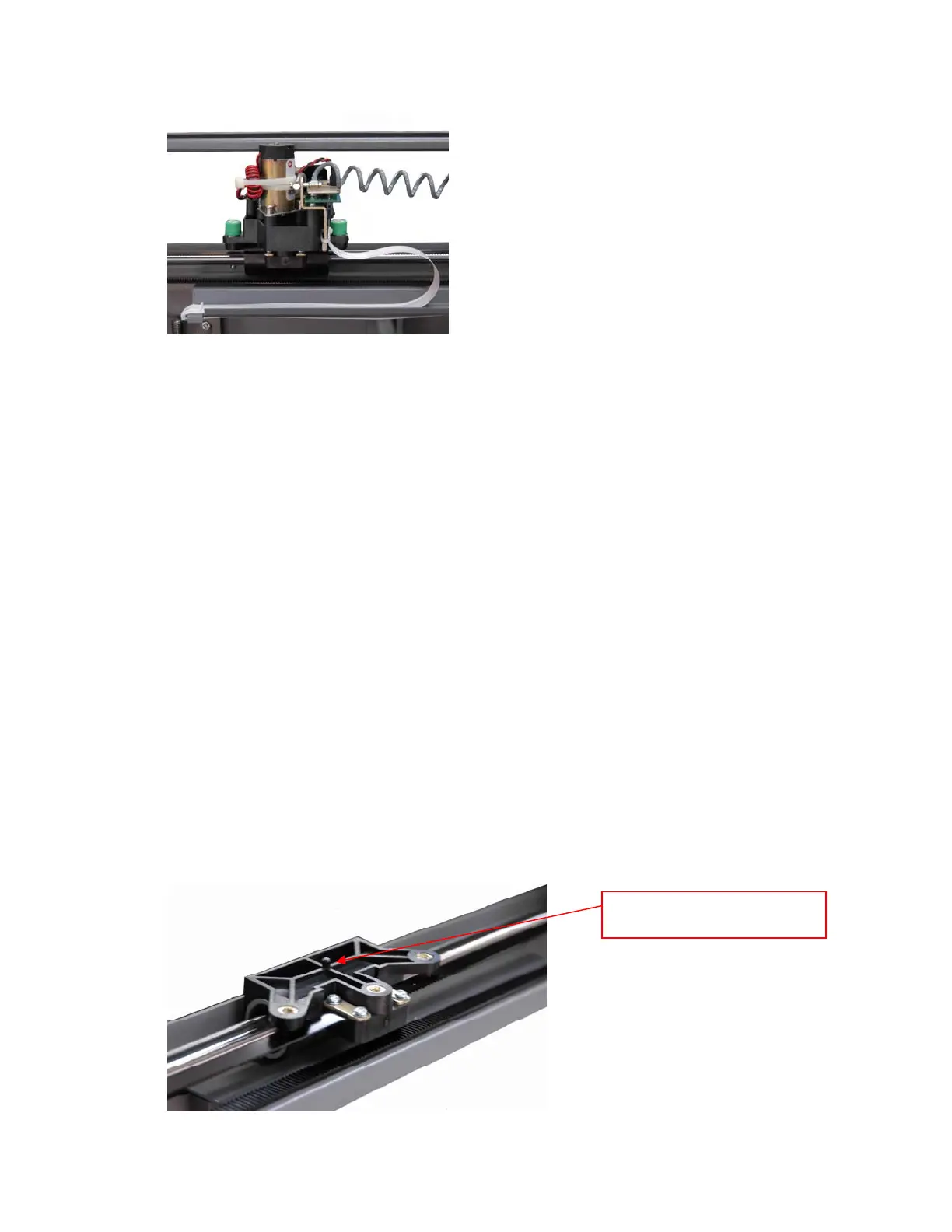

9. Place I-beam on the brackets, making sure to put the
I-beam onto the pins.
P
lacement Pin
