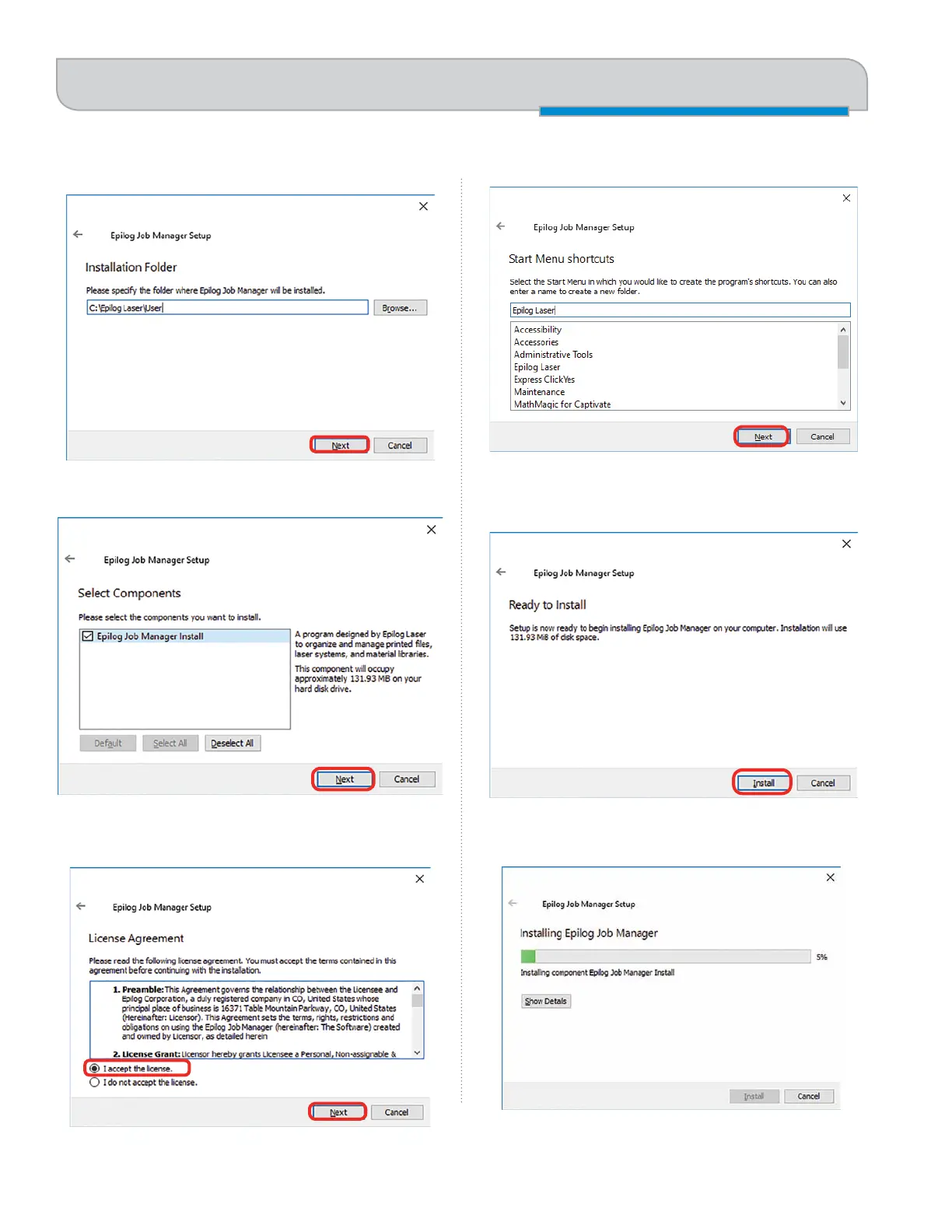

How to Install the Epilog Job Manager

SECTION 4: THE EPILOG JOB MANAGER

6. Click Next.

7. Click Next.

8. Accept the license, then click Next.

9. Click Next.

10. Click Install.

11. The installation will take a few moments.
