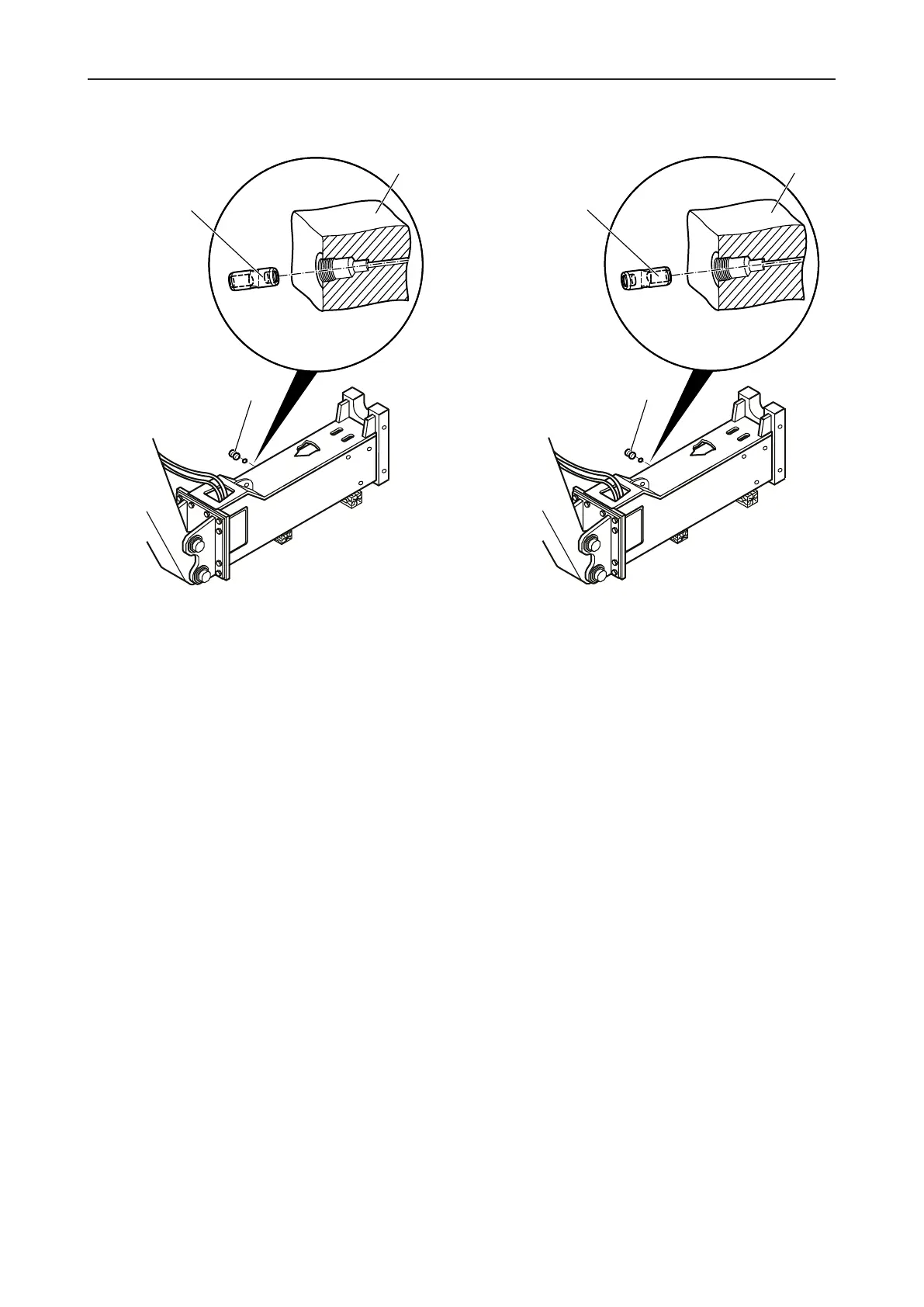

“AutoStart” integration setting
D
C
A
“AutoStop” integration setting
D
C
A
n
Remove the plug(C).
n
Screw a screw (M 10) into the valve piston(D).
n
Pull the valve piston(D) by its screw from the bore in
cylinder(A).
n
Remove the screw from the valve piston(D) and in-
stall it again the other way around.
n
Screw in the plug(C) and tighten it to the required
tightening torque (see chapter Bolt connections /
Tightening torques).
