Operation
Concentrator plus/Vacufuge® plus
English (EN)
5Operation

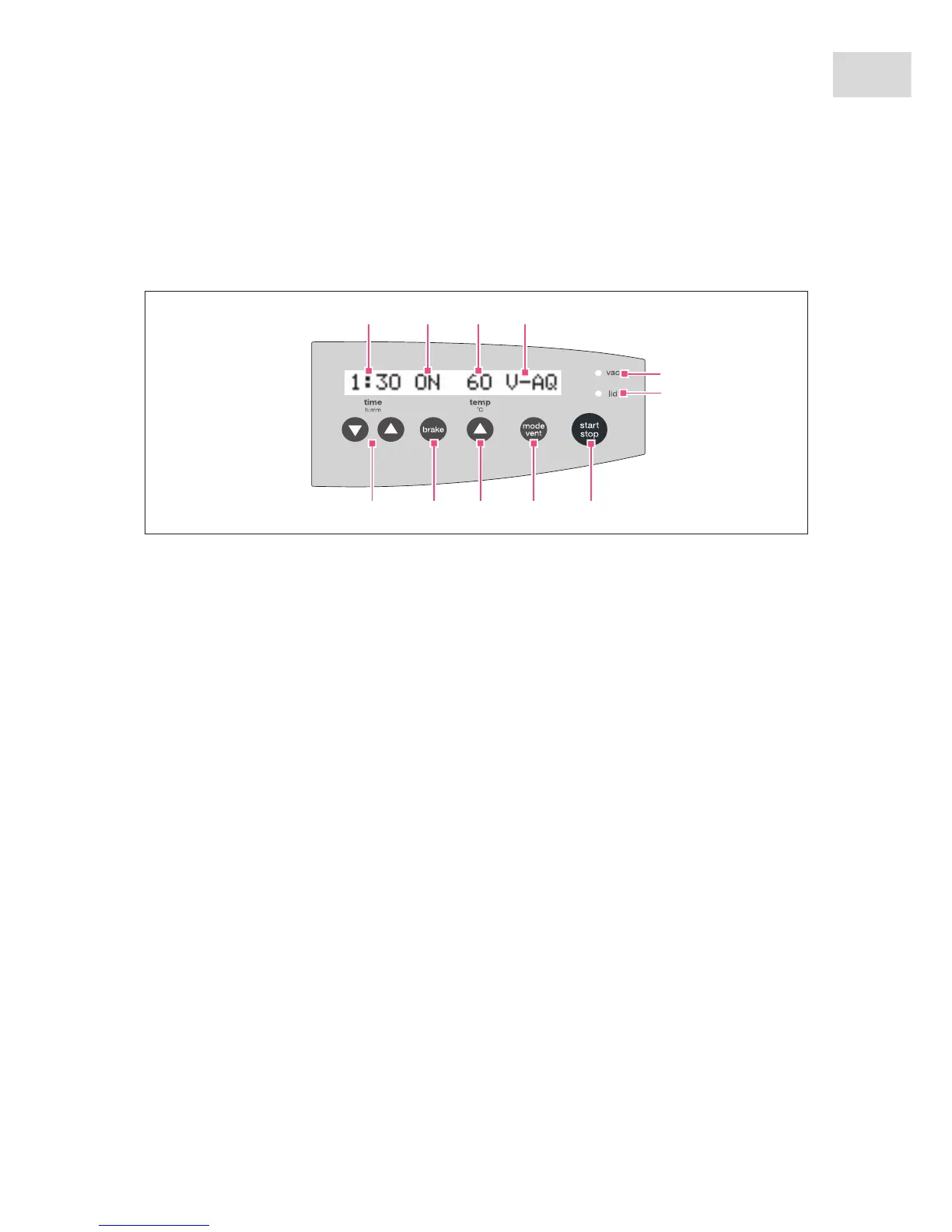

5.1 Overview of operating controls
Before using the device for the first time, familiarize yourself with the operating controls and the device
display.
1Concentration run time
1 min to 9:59 h, unlimited (oo), adjustable in
1 min. increments.
2Braking function
ON: Braking function on. OFF: Braking
function off.
3Temperature
--: Heating off. 30/45/60 °C: Heating on.
4Mode
(see Functions on p. 36)
5Status of the diaphragm vacuum pump (vac)
Off: Pump off. On: Pump running.
6Status of the device lid (lid)
Off: Lid locked. On: Lid unlocked.
7Start or stop concentration
8Set the mode
Manual ventilation of the rotor chamber during a
concentrator/desiccator run while the key is
pressed. Ventilation is displayed.
9Set the temperature
10 Set the braking function
11 Set the concentration run time
7
8
9
10
11
5
6
1 2 3 4
