EPSON Perfection 610 Revision B
Assembly and Disassembly Disassembly Procedures 41
4.2.9 Power Supply Board Removal
1. Release the Carriage Lock. (See Section 4.2.1.)
2. Remove the Document Cover. (See Section 4.2.2.)
3. Remove the Upper Housing. (See Section 4.2.3.)
4. Release the locking connector (pull and release) for the Panel
Board, and then disconnect the cable from the Power Supply Board.
(Refer to Figure 4-30.)
5. Disconnect the locking connector (pick and release) for the AC
cable from the Power Supply Board.

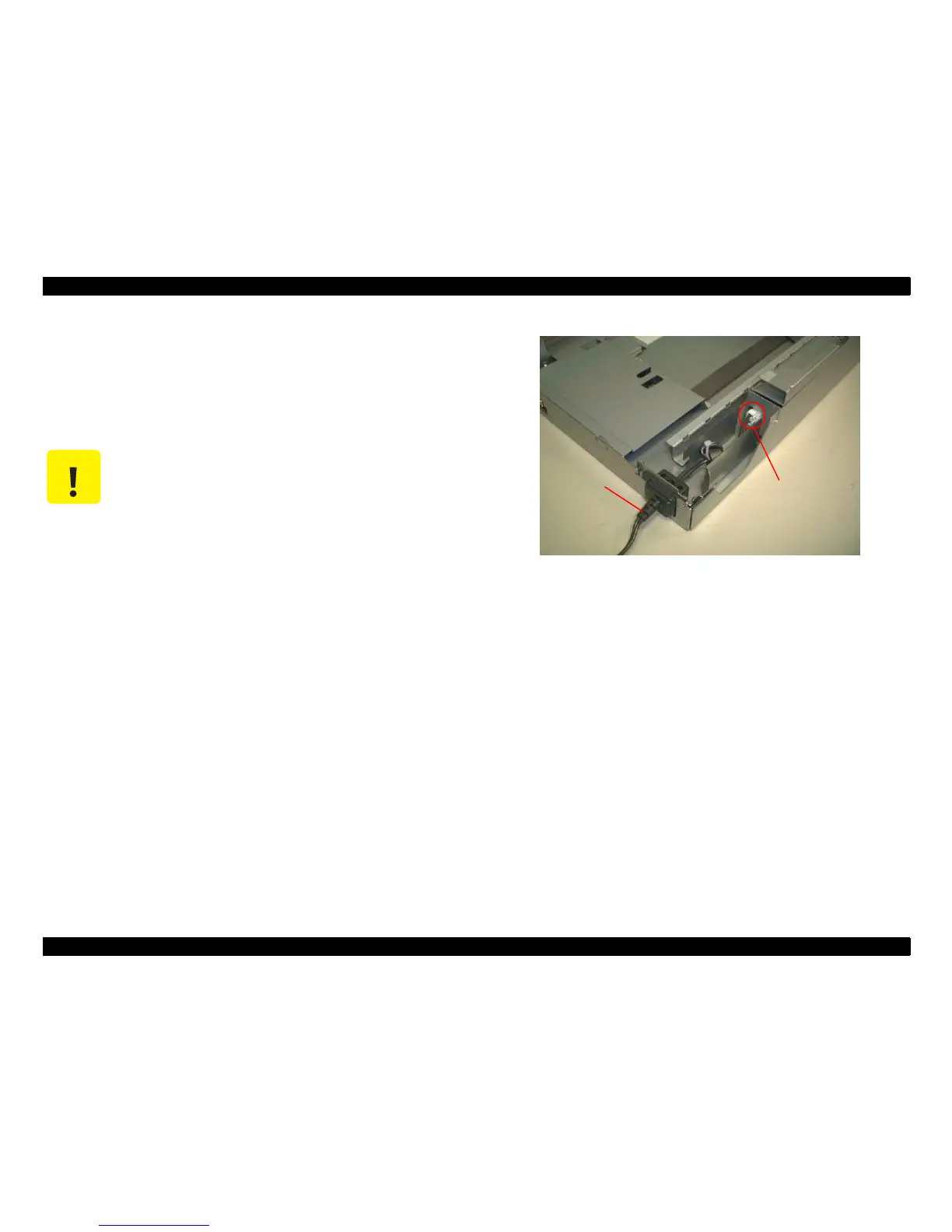

Figure 4-31. Connectors for the Power Supply Board
CAUTION
In the following steps, manually move the carriage
back and forth slowly if necessary.
Connector for the AC Cable
AC Cable
