32

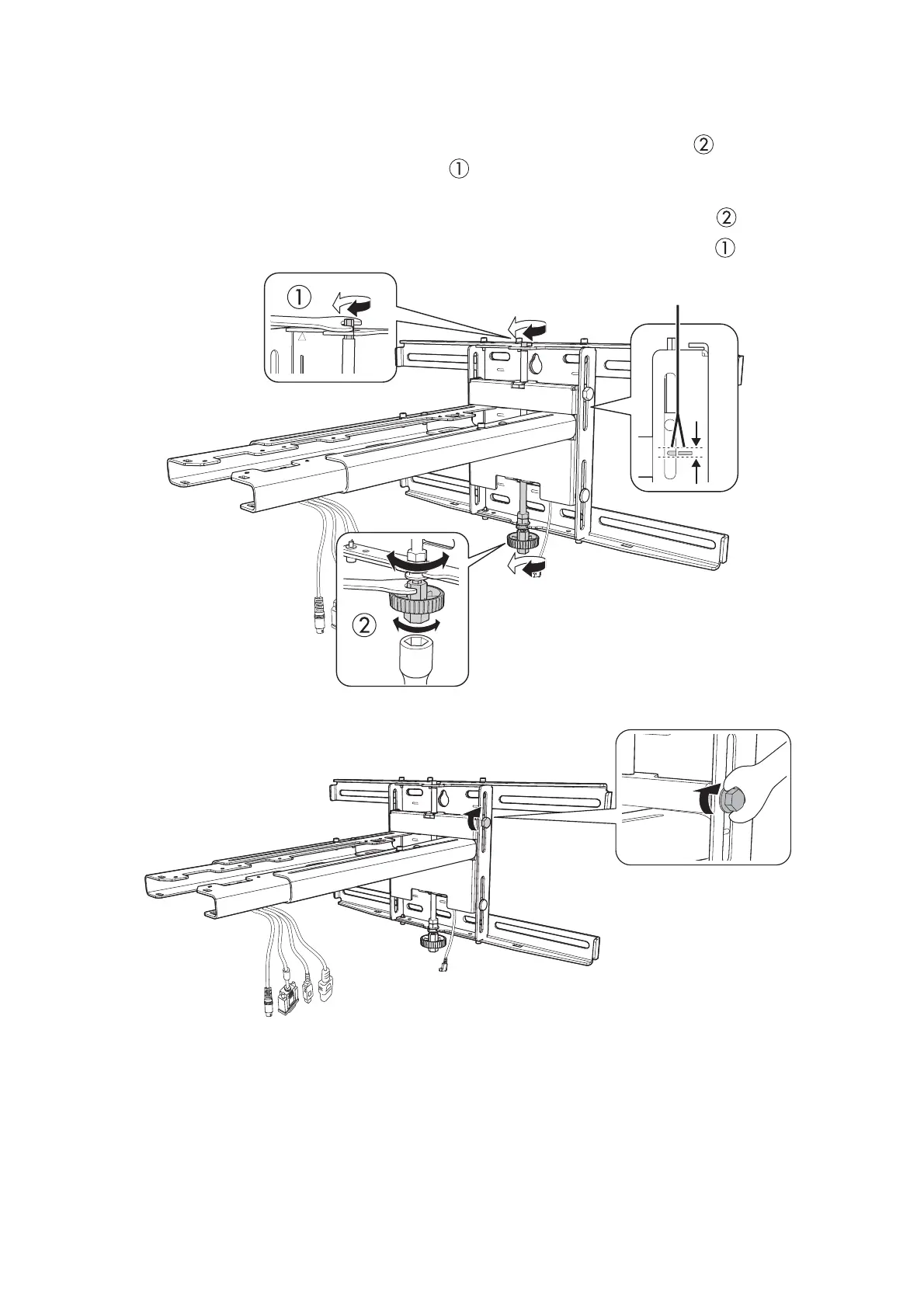

F Adjust the vertical slide position of the arm
1. Adjust the vertical slide with the M8 hexagon bolt at the bottom of the wall mount ( ), or the
hexagonal shaft at the top of the wall mount ( ). Start by aligning the notch on the arm with the
alignment mark on the wall plate as shown below.
Tightening the M8 hexagon bolt lowers the wall mount, and loosening the bolt raises it ( ).
Tightening the hexagonal shaft raises the wall mount, and loosening the shaft lowers it ( ).
2. Tighten the M6 × 20 mm hexagon shoulder bolt to secure the wall mount.
