8

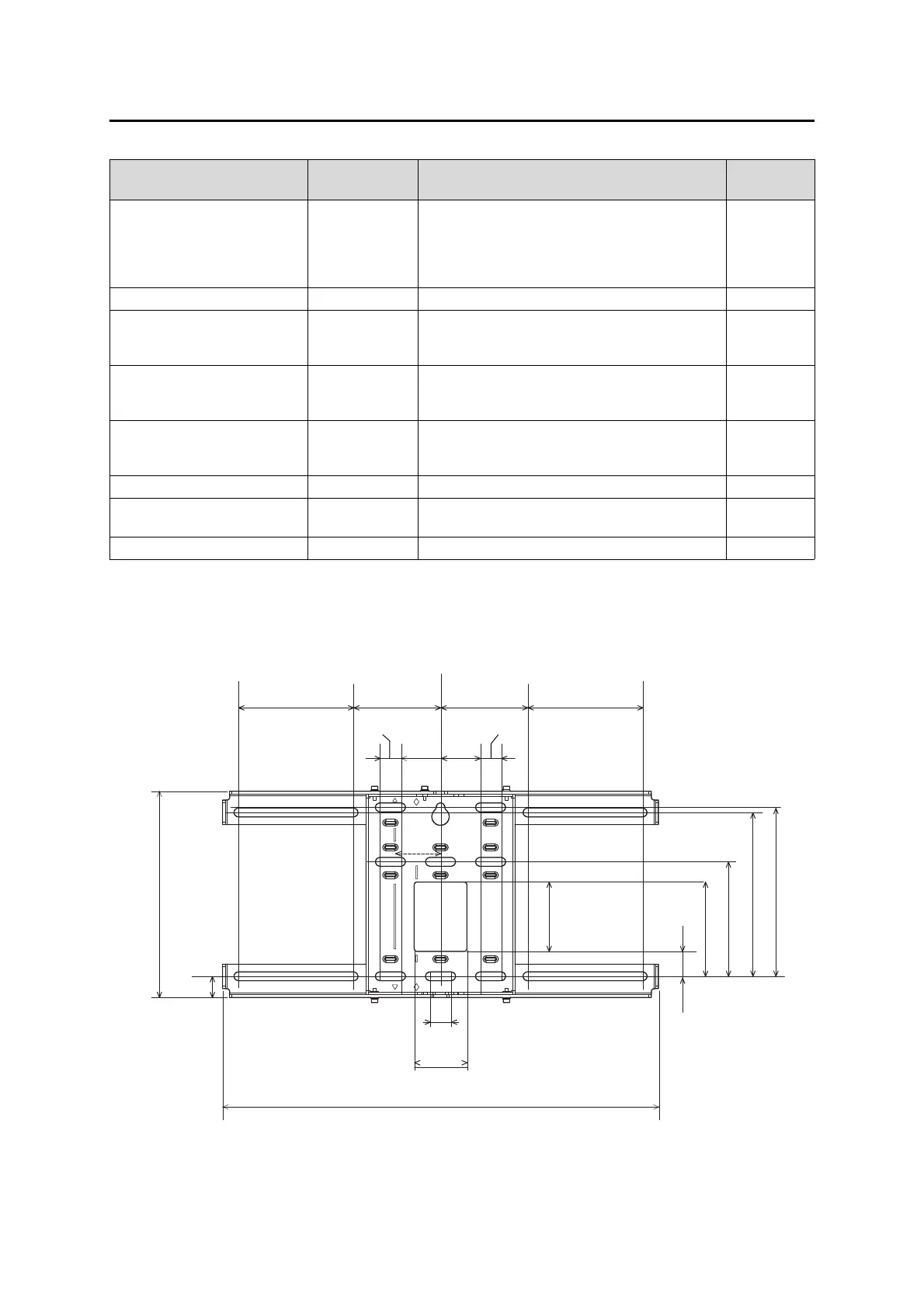

2 Specifications
Wall plate
The wall plate is in three pieces when shipped. Use the included M4 × 12 mm bolts (×6) to attach the separate
pieces together before mounting the projector. See page 25 for instructions.
Item Specification Additional information
Reference
page
Wall mount weight (including the
3-axis adjustment unit, slide plate,
wall plate, wall plate cover, and
end cap)
Approx. 15.9 lb
(7.2 kg)
Wall mount: 6.4 lb (2.9 kg)
3-axis adjustment unit: 2.2 lb (1.0 kg)
Slide plate: 1.3 lb (0.6 kg)
Wall plate: 4.4 lb (2.0 kg)
Wall plate cover and end cap: 1.5 lb (0.7 kg)
—
Maximum load capacity 20.9 lb (9.5 kg) — —
Vertical slide adjustment range ±1.5 in. (38 mm) — Refer to the
illustration
below
Horizontal slide adjustment range ±1.8 in. (45 mm) — Refer to the
illustration on
page 9
Forward/backward slide
adjustment range
0.5 to 13.8 in.
(13 to 350 mm)
Arm slide adjustment range: 0 to 10.4 in. (0 to 263 mm)
Adjustment from 3-axis adjustment unit installation
position: 3.4 in. (87 mm)
Refer to the
illustration on
page 9
Horizontal roll adjustment range ±3° Fine adjustments possible with adjustment dial
s p. 37
Horizontal rotation adjustment
range
±8° Fine adjustments possible with adjustment knob
s p. 38
Vertical tilt adjustment range ±3° Fine adjustments possible with adjustment dial
s p. 38
19.5 in. (496 mm)
5.2 in. (131 mm)
1.1 in.
(28.3 mm)
4.2 in. (107.3 mm)
5.1 in. (130.2 mm)
7.3 in. (186.4 mm)
7.6 in. (192.3 mm)
1.8 in.
(45 mm)
1.8 in.
(45 mm)
3.9 in. (99 mm) 3.9 in. (99 mm) 5.2 in. (131 mm)
3.1 in.
(79 mm)
0.9 in.
(24 mm)
2.4 in. (60 mm)
9.2 in. (234.4 mm)
0.9 in.
(24 mm)
0.9 in.
(24 mm)
0.9 in.
(24 mm)
