Epson BrightLink 697Ui Installation Guide

39
English

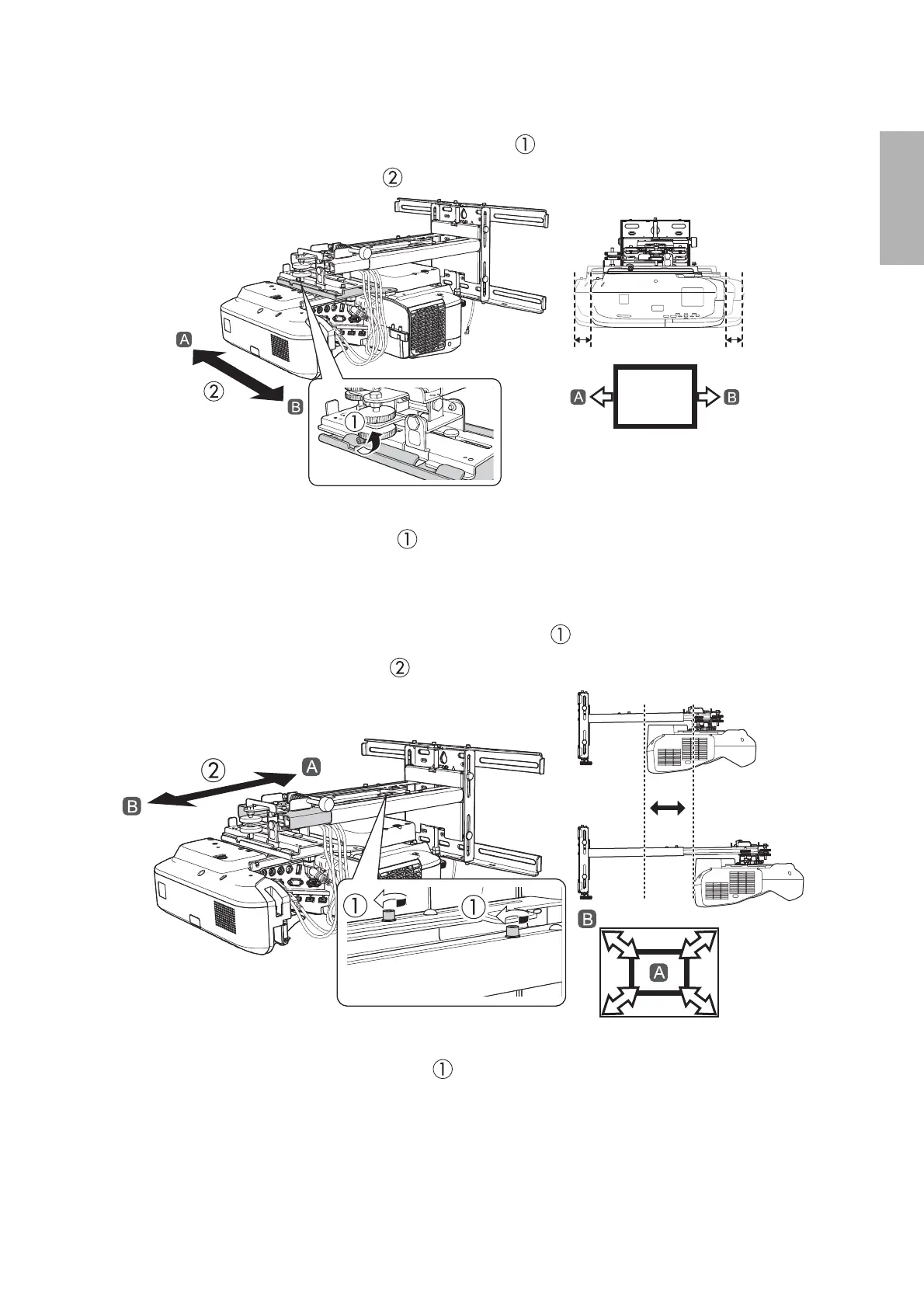

H Adjust the horizontal slide
1. Loosen the M4 × 12 mm hexagon socket head cap bolt ( ).
2. Adjust the slider for the slide plate ( ).
3. After you finish making all of the adjustments in steps
E to J, tighten the M4 × 12 mm hexagon
socket head cap bolt you loosened in .
I Adjust the forward/backward slide
1. Loosen the M4 × 12 mm hexagon socket head cap bolts (×2) ( ).
2. Adjust the slider for the wall mount ( ).
3. After you finish making all of the adjustments in steps
E to J, tighten the M4 × 12 mm hexagon
socket head cap bolts (×2) you loosened in .
