The adjust lever on the upper case must be set to the proper position for the paper
thickness, as shown in Table 1-4.
Table 1-4. Adjust Lever Settings
Paper
Lever Position Paper Thickness
Cut Sheets
Front
(0 position)
0 mm
Envelops
Rear
(+position)
0.62 mm
Also the paper select lever on the upper case must be set to the proper position for
the paper varieties shown in Table 1-5.
Table 1-5. Paper Select Lever Settings
Specifications for
the Medium
+
PF Mode
Cut Sheets
Envelopes
Postcards
^
Lever Position ^
ASF Feed
Thick paper (Rear)
NO OK
^
Thinner paper (Front) OK NO
Manual Feed
Thick paper (Rear)
OK OK
^
Thinner paper (Front) NO NO
Note: “OK” means paper can be used and “NO” means paper cannot.
Paper In
Paper Out
Manual Feed
Auto Feed
Hopper
Paper Select Lever
Thicker Paper
Thinner Paper

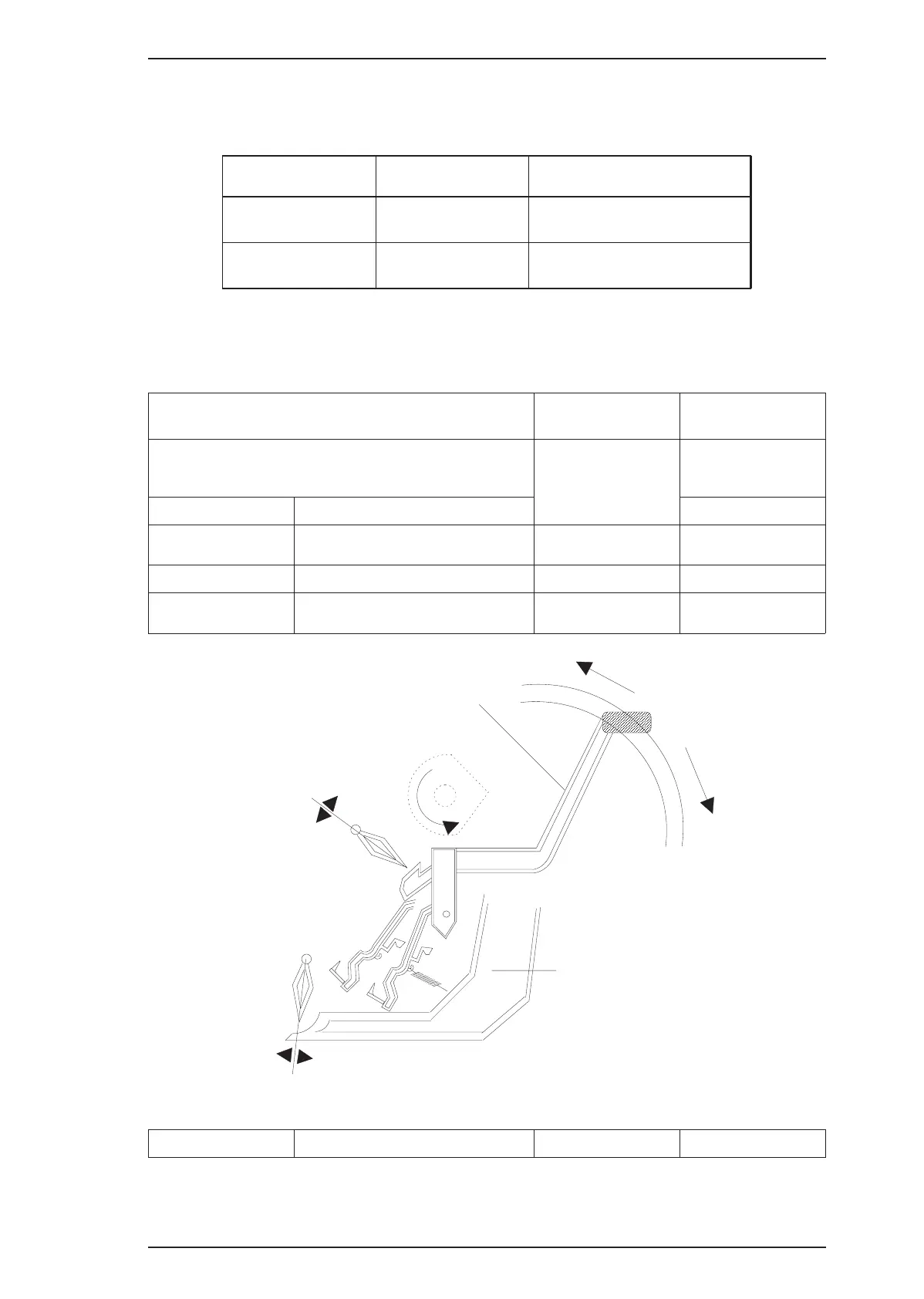

Figure 1-4. Paper Select Error
