Epson CBB - Paper Feed Motor Removal; Figure 3-20. Pin Position; Figure 3-21. Paper Feed Motor Removal

3.2.6.10 Paper Feed Motor Removal
1. Remove the printer mechanism (see Section 3.2.5).
2. Remove the pump unit. (see Section 3.2.6.9).
3.
Remove the 2 CBB (M3x10) screws securing the paper feed motor to the motor frame.
Pin
HOLE
Pin Holder
Pump Unit
Pin

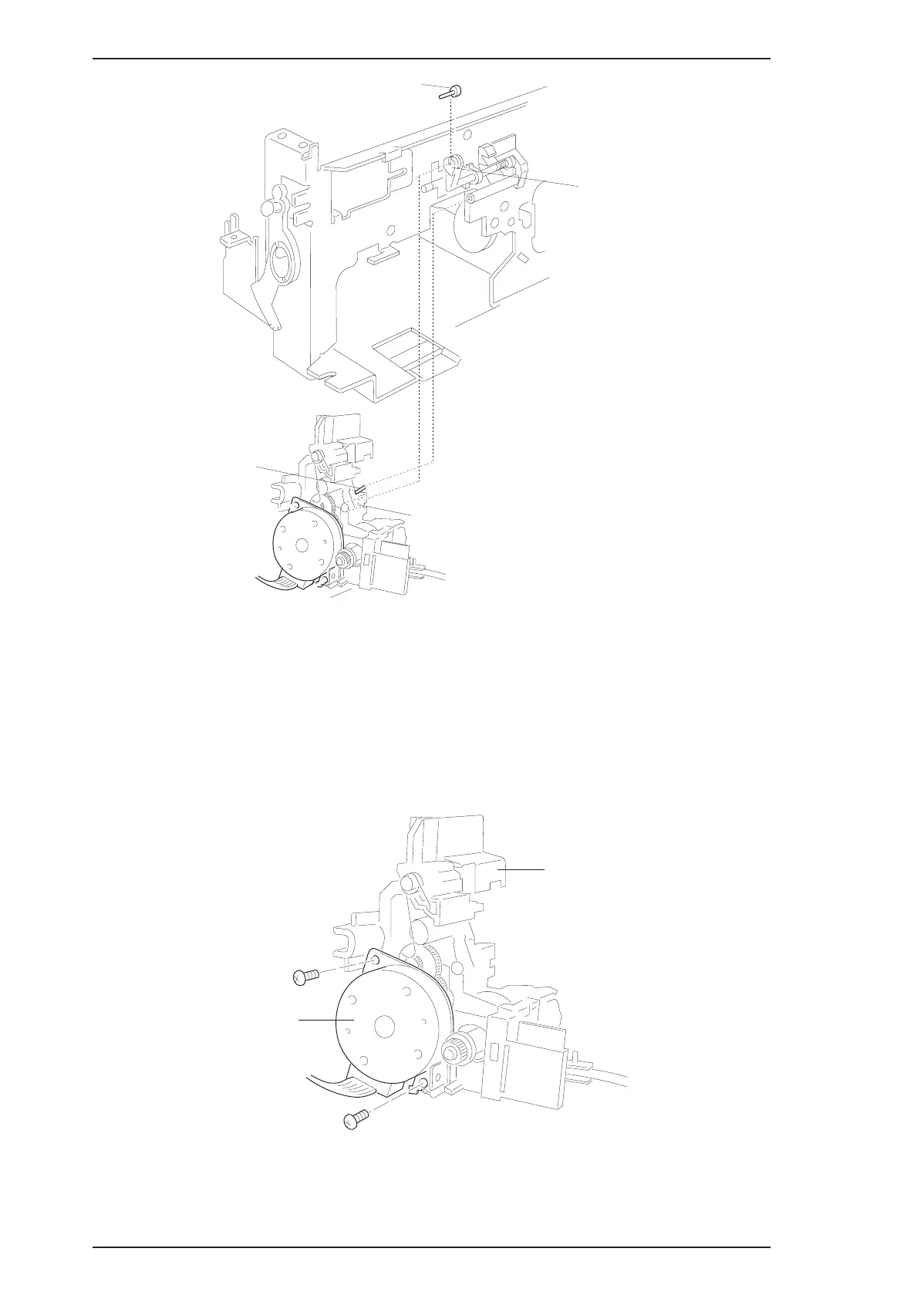

Figure 3-20. Pin Position
PF Motor
CBB(M3x10)
CBB(M3x10)
Pump Unit
Figure 3-21. Paper Feed Motor Removal
