8 DM-D500 Installation Guide
English
Assembling

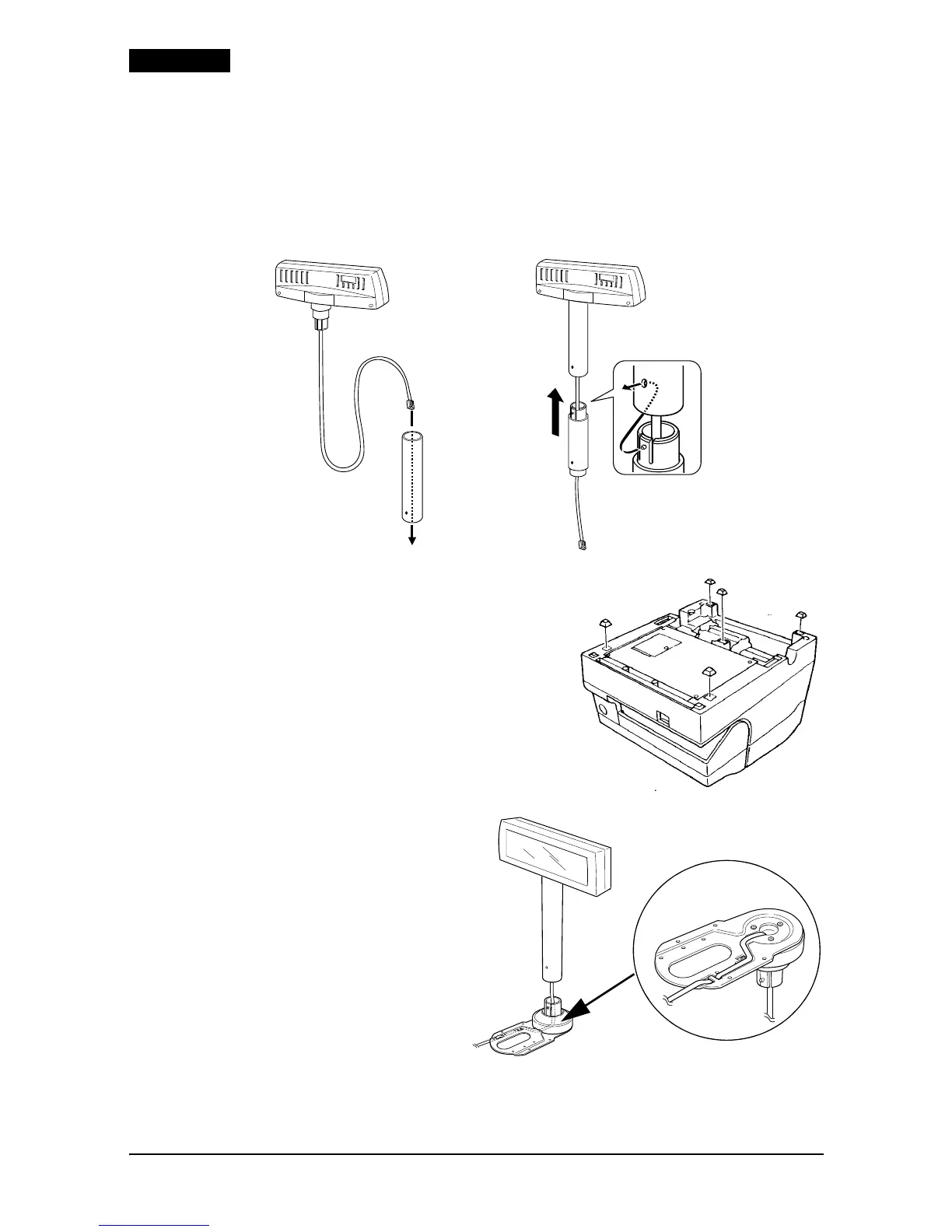

1. Pass the cable for the DM-D500 through support C, and attach
support
C to the DM-D500 as shown in illustration 13. When
using support
B for extension, insert the tab on support B into
the hole on support
C as shown in illustration 14 until you feel
it click.
2. Attach the rubber feet to the printer
as shown in illustration 15.
3. Pass the cable for the
DM-D500 through the
hole on fixing plate
A,
and fix the cable at the
bottom as shown in
illustration 16.
when using support B
for extension
13 14
15
16
To Next Page
