DM-D500 Installation Guide 9
English

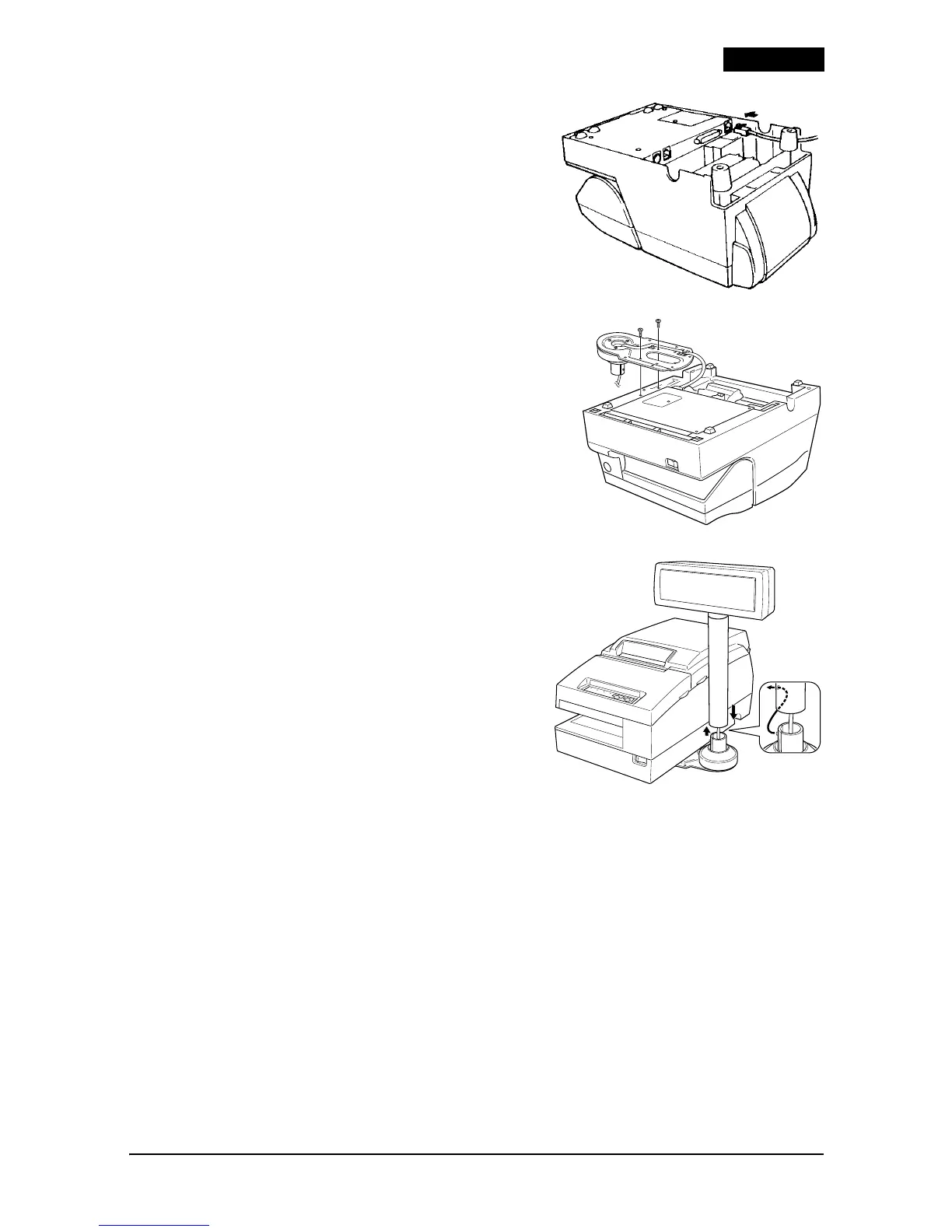

4. Connect the cable for the
DM-D500 to the DM connector
on the TM printer as shown in
illustration 17.
5. Adjust the length of the cable,
and secure fixing plate
A to the
printer with screws as shown in
illustration 18.
6. Store any excess cable in the
support, and attach the DM-D500
to fixing plate
A as shown in
illustration 19.
Attaching to the TM-H6000 Series or TM-U675
The DM-D500 can be attached directly to a TM-H6000 series or TM-
U675 printer using the “DM-D pole unit for TM printers (Type
A)”
(DP-502). You can attach fixing plate
A on either side of the
TM-H6000 series or TM-U675. After attaching it, you can slide the
display freely.
17
18
19
To Next Page
