Projector Parts and Functions
11
The following sections explain the projector parts and their functions.
All of the features in this guide are explained using illustrations of EB‑1795F
unless otherwise mentioned.
gg Related Links
• "Projector Parts - Front" p.11
• "Projector Parts - Rear" p.12
• "Projector Parts - Base" p.13
• "Projector Parts - Control Panel" p.13
• "Projector Parts - Remote Control" p.14

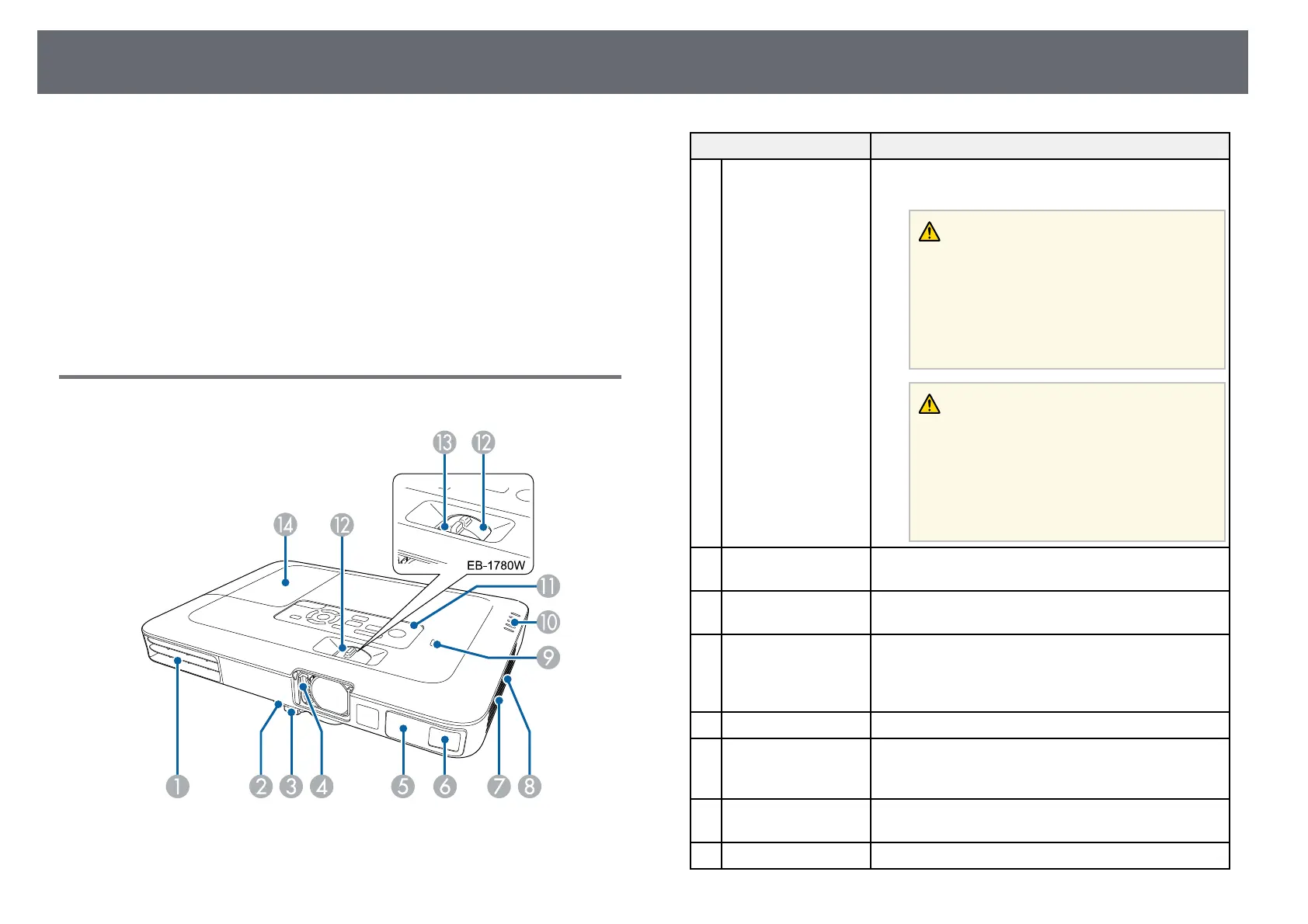

Projector Parts - Front
Name Function
A
Air exhaust vent Exhaust vent for air used to cool the projector
internally.
Warning
Do not look into the vents. If the lamp
explodes, gases may escape and small
fragments of glass may be scattered which
could cause an injury. Contact a doctor if any
fragments of broken glass are inhaled or get
into the eyes or mouth.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
B
Foot release lever Press the foot release lever to extend and retract the
front adjustable foot.
C
Front adjustable foot When setup on a surface such as a desk, extend the foot
to adjust the position of the image.
D
A/V Mute slide Slide the lever to open and close the A/V mute slide.
Close when not using the projector to protect the lens.
By closing during projection you can hide the image
and the sound.
E
Remote receiver Receives signals from the remote control.
F
Sensor
(EB‑1795F/EB‑1785W
/EB‑1781W)
Sensor for detecting the projected images.
G
Air intake vent (air
filter)
Takes in air to cool the projector internally.
H
Speaker Outputs audio.
To Next Page
