Illustrations in this section are of EB-1880.
The port name, location, and connector orientation differ depending on the source being connected.

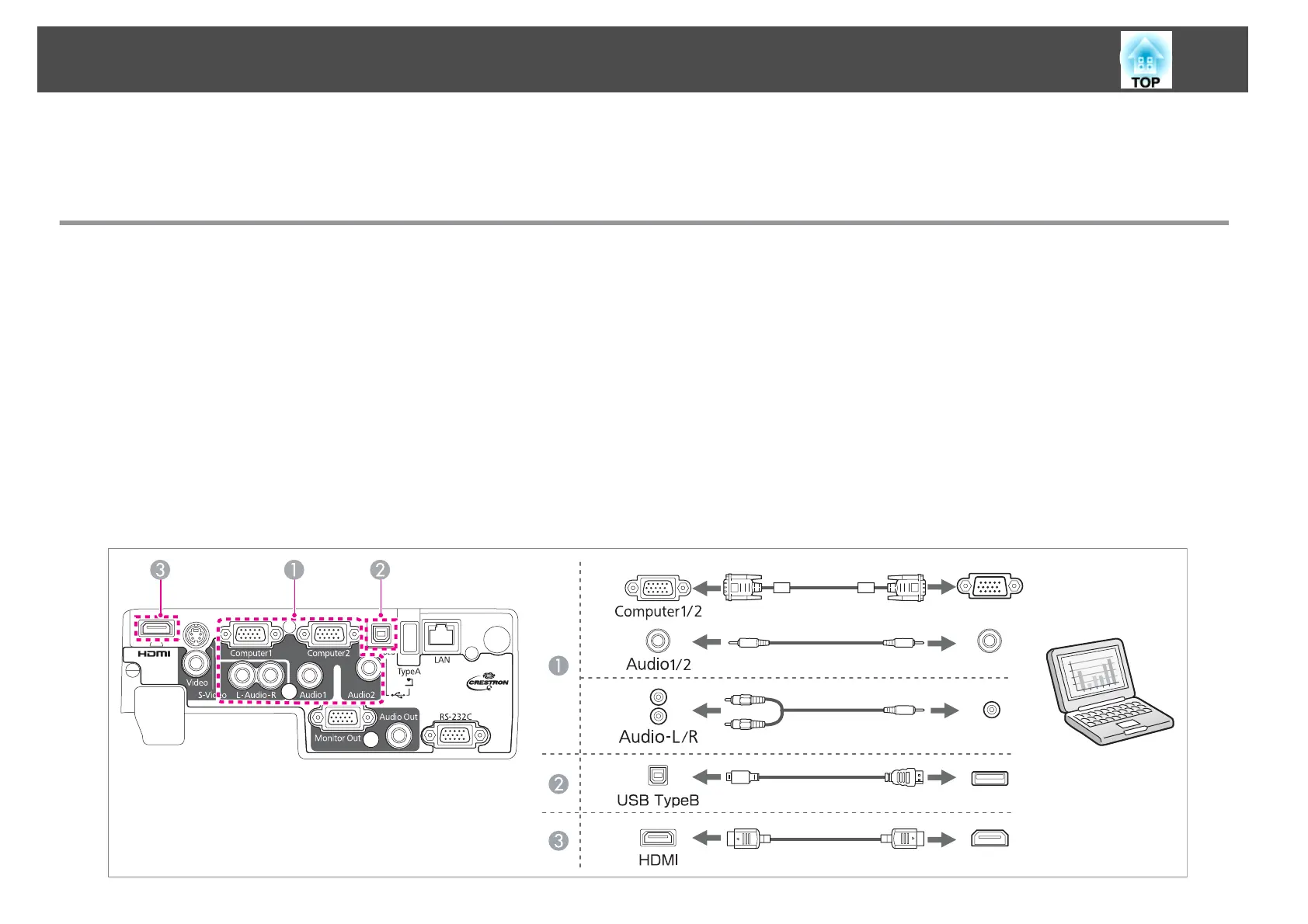

Connecting a Computer
To project images from a computer, connect the computer using one of the following methods.
A
When using the supplied computer cable
Connect the computer's display output port to the projector's Computer port.
You can output audio from the projector's speaker by connecting the audio output port on the computer to the projector's Audio Input port using a commercially available audio cable.
For EB-1880/EB-1870/EB-1850W, connect to the Audio1 or the Audio2 port, and for EB-1860/EB-1840W, connect to the Audio-L/R port.
B
When using a commercially available USB cable
Connect the computer's USB port to the projector's USB(TypeB) port.
You can send the computer's audio with the projected image.
C
When using a commercially available HDMI cable (EB-1880/EB-1870/EB-1850W only)
Connect the computer's HDMI port to the projector's HDMI port.
You can send the computer's audio with the projected image.
Connecting Equipment
22

Epson EB-1880 Specifications

Display

native resolution	1024 x 768 (XGA)
color light output	4000 lumens
white light output	4000 lumens (ISO 21118 standard)

Power

power consumption (normal mode)	363 W
power consumption (eco mode)	297 W
power supply voltage	100 – 240 V ± 10%, 50/60 Hz AC

Projection Lens

f-number	1.51 – 1.99
focal length	18.2 mm – 29.2 mm
zoom ratio	1.0 – 1.6

Operating Environment

operating temperature	5˚ to 35˚C
fan noise (normal mode)	39 dB
fan noise (eco mode)	35 dB

Lamp

lamp type	275 W UHE E-TORL
lamp life (normal mode)	3000 hours
lamp life (eco mode)	4000 hours

Weight and Dimensions

weight	3.3 kg
dimensions (including feet)	345 x 263 x 103 mm
dimensions (excluding feet)	345 x 263 x 93 mm
