Epson EB-1880 User Manual

d

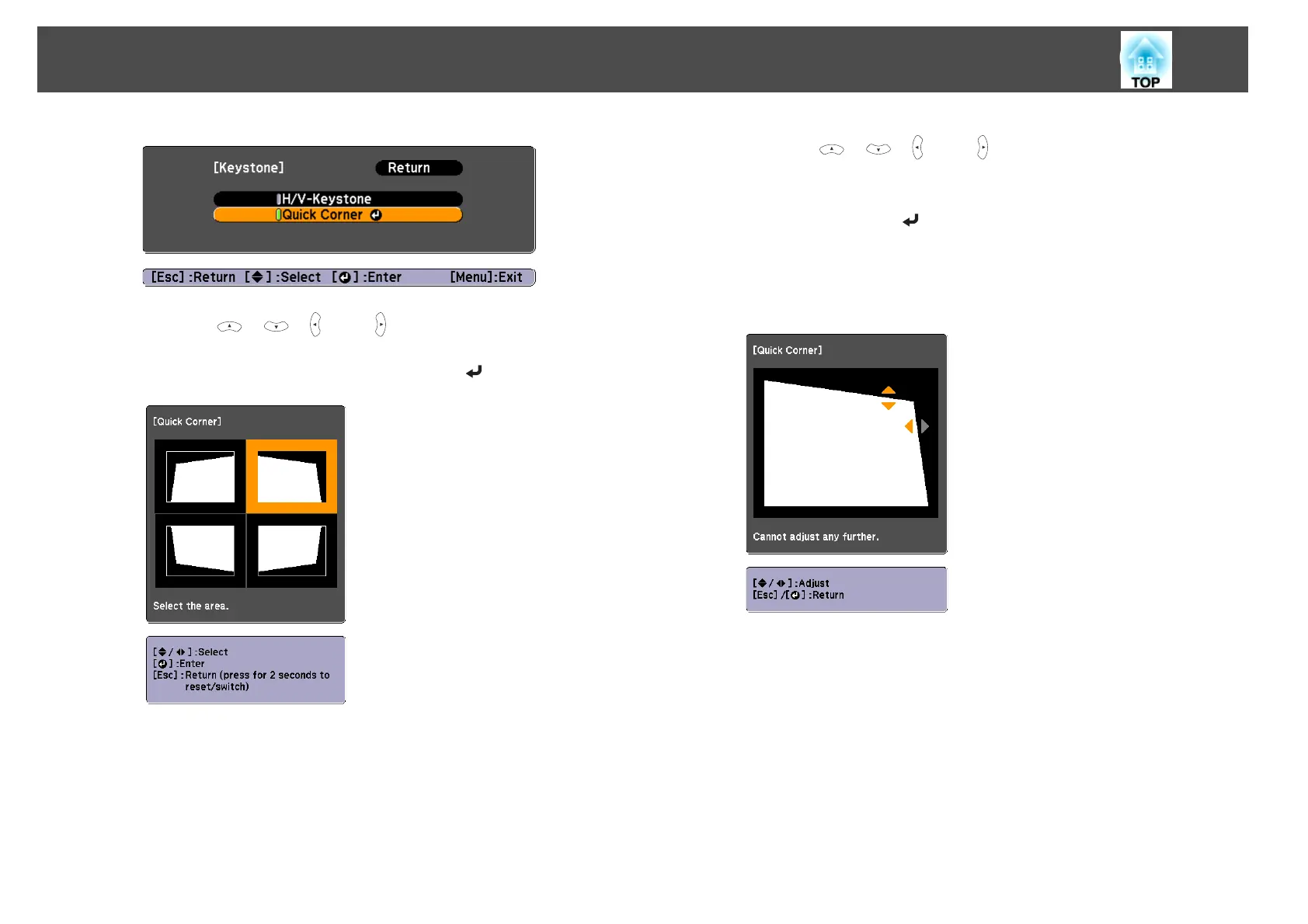

Using the [ ], [ ], [ ], and [ ] buttons on the remote control,
or the [
w], [v], [a], and [b] buttons on the control panel, select
the corner to correct, and then press the [
] button.
e
Using the [ ], [ ], [ ], and [ ] buttons on the remote control,
or the [
w], [v], [a], and [b] buttons on the control panel, correct
the position of the corner.
When you press the [
] button, the screen shown in step 4 is
displayed.
If the message "Cannot adjust any further." is displayed while
adjusting, you cannot adjust the shape any further in the direction
indicated by the gray triangle.
f
Repeat procedures 4 and 5 as needed to adjust any remaining
corners.
g
When you are done, press the [Esc] button to exit the correction
menu.
Because Keystone was changed to Quick Corner, the corner
selection screen shown in step 4 is displayed the next time you press
the [
w] or [v ] buttons on the control panel. Change Keystone to
H/V-Keystone if you want to perform horizontal and vertical
correction using the [
w
] or [
v
] buttons on the control panel.
s Settings - Keystone - H/V-Keystone p.79
Adjusting Projected Images
38

Epson EB-1880 Specifications

Display

native resolution	1024 x 768 (XGA)
color light output	4000 lumens
white light output	4000 lumens (ISO 21118 standard)

Power

power consumption (normal mode)	363 W
power consumption (eco mode)	297 W
power supply voltage	100 – 240 V ± 10%, 50/60 Hz AC

Projection Lens

f-number	1.51 – 1.99
focal length	18.2 mm – 29.2 mm
zoom ratio	1.0 – 1.6

Operating Environment

operating temperature	5˚ to 35˚C
fan noise (normal mode)	39 dB
fan noise (eco mode)	35 dB

Lamp

lamp type	275 W UHE E-TORL
lamp life (normal mode)	3000 hours
lamp life (eco mode)	4000 hours

Weight and Dimensions

weight	3.3 kg
dimensions (including feet)	345 x 263 x 103 mm
dimensions (excluding feet)	345 x 263 x 93 mm
