Projector Connections
30
a
• If the port on the device you connect has an unusual shape, use the
cable supplied with the device or an optional cable to connect to the
projector.
• The cable differs depending on the output signal from the connected
video devices.
• Some video devices are capable of outputting different types of
signals. See your video device manual to confirm what type of signals
can be output.
gg Related Links
• "Connecting to an HDMI Video Source" p.30
• "Connecting to a Composite Video Source" p.30

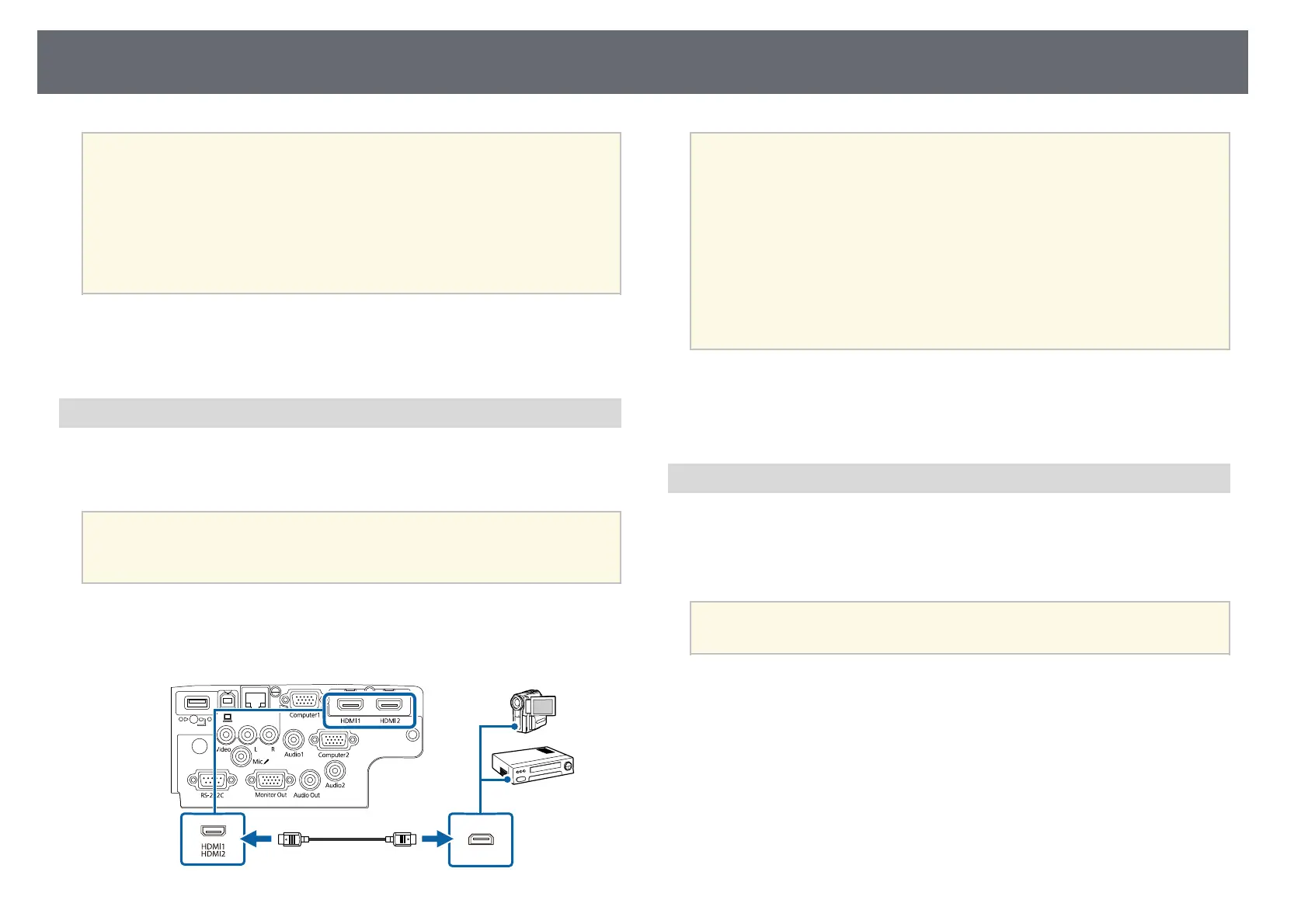

Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector
using an HDMI cable and send the image source's audio with the projected
image.
Attention
Do not turn on the video source before connecting it to the projector. Doing so
could damage the projector.
a
Connect the HDMI cable to your video source's HDMI output port.
b
Connect the other end to the projector's HDMI port.
a
If you have problems hearing audio through the HDMI connection,
connect one end of a commercially available 3.5 mm stereo mini-jack
audio cable to the projector's Audio port and the other end to your
video source's audio out port. Select the audio input port you
connected to in the projector's Extended menu.
s Extended > A/V Settings > Audio Settings > HDMI Audio
Output
s Extended > A/V Settings > Audio Settings > HDMI1 Audio
Output
s Extended > A/V Settings > Audio Settings > HDMI2 Audio
Output
gg Related Links
• "Projector Setup Settings - Extended Menu" p.134
• "List of Functions" p.10
Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the
projector using a RCA-style video or A/V cable.
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
a
Make sure the audio cable is labeled "No resistance".
a
Connect the cable with the yellow connector to your video source's
yellow video output port.

Epson EB-992F Specifications

General

Matrix size	0.61 \
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	1.76 - 2.86 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	2400 ANSI lumens
Lamp type	UHE
Lamp power	230 W
Light source type	Lamp
Service life of light source	6500 h
Service life of light source (economic mode)	17000 h
3D	No
Full HD	Yes
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
Throw ratio	1.32 - 2.14:1
Focal length range	18.2 - 29.2 mm
Aperture range (F-F)	1.51 - 1.99
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
RMS rated power	16 W
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, HDMI
Bundled software	EasyMP Multi PC Projection, Epson Projektor Management
HDMI connector type	Full-size
Serial interface type	RS-232C
USB 2.0 ports quantity	1
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
USB display function	3 in 1: Image / Mouse / Sound
Supported network protocols	PJLink
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	72 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Control4, Extron

Weight and Dimensions

Depth	282 mm
Width	309 mm
Height	90 mm
Weight	3100 g
Package depth	390 mm
Package width	385 mm
Package height	170 mm
Package weight	4592 g
