Epson EB-W52 Service Manual

EB-E01 series Product Description INTERNAL USE ONLY
SEIKO EPSON 11 Revision A
1.1 Product Description
This projector comes with this special features. Refer to these sections for more
details.
 Quick and Easy Setup
 Direct Power On feature to turn on the projector as soon as you plug it
in.
 Auto Power On feature to turn on the projector when the projector
detects an image signal from the port you specified as the Auto Power
On source.
 Home screen feature to easily select an input source and useful
functions.
 Automatic vertical keystone correction always displays a rectangular
screen (Auto V-Keystone).
 Horizontal correction slider to quickly correct the lateral strain of the
projected image. Sliding horizontal correction is convenient when the
projector cannot be parallel to the screen.
(Except EB-E01/E10)
 Easy Wireless Projection (EB-FH52/992F EH-TW750 only)
 Screen Mirroring allows a wireless connection between the projector
and a mobile device compatible with Miracast.
 Epson iProjection (Windows/Mac) to project up to four images at the
same time by splitting the projected screen. You can project images
from computers on the network, or from smartphones or tablet devices.
 Flexible Connectivity
 This projector can be connected to computers, video equipment,
smartphones, tablet terminals, and other devices.
 Slide Show Function (except EB-E01/E10)
 The images in a USB storage can be projected without using a
computer
 Equipped with USB terminal (Type A)
 Enhanced security functions
 Operation button lock function
 Security cable installation
 Remote password
 Sliding Lens Cover for Easy Projection And Storage
(other than EB-E01/E10)
 No cool-down period is needed.
 Auto Iris

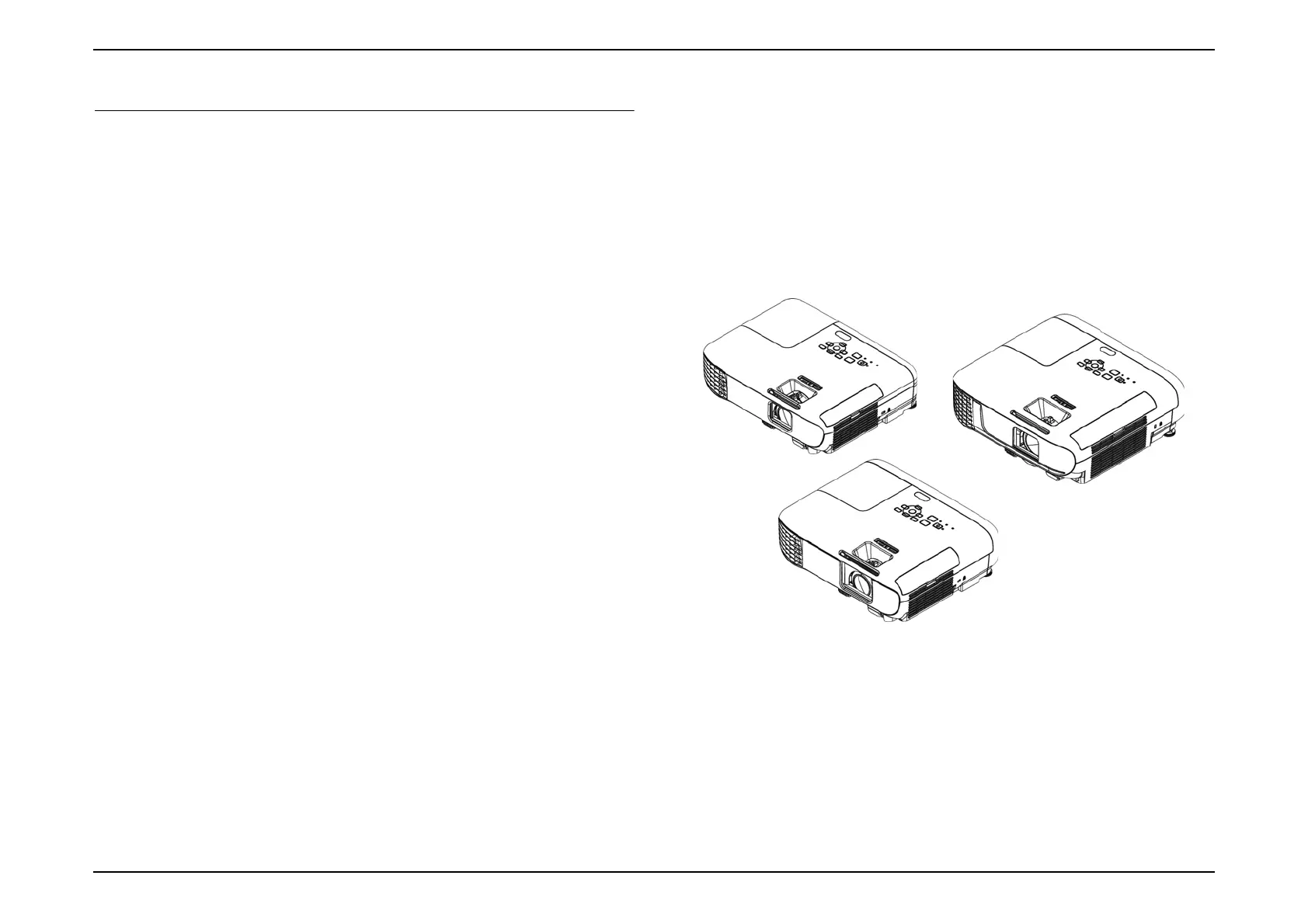

External View

Epson EB-W52 Specifications

General

Matrix size	0.59 \
Matrix type	3-panel (p-Si TFT active)
Native aspect ratio	16:10
Projection distance	1.68 - 2.02 m
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 320 \
Projector native resolution	WXGA (1280x800)
Keystone correction, horizontal	-30 - 30 °
RMS rated power	2 W
Focus	Manual
Throw ratio	1.3 - 1.56
Focal length range	16.9 - 20.28 mm
Product type	Standard throw projector
Product color	Black, White
Market positioning	Home cinema
Cable lock slot type	Kensington
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Built-in display	No
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Power consumption (typical)	327 W
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Noise level	37 dB
Noise level (economic mode)	28 dB

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	92 mm
Weight	2600 g
