Epson EB-W52 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 144 Revision A
3.5.1.2 Ground continuity check
 Testing apparatus
Multimeter (with sensitivity down to 0.1 Ω)
 Measurement range: Select "Ω"
 Tester lead wires:
• Black lead wire: Connect it to the "COM" terminal.
• Red lead wire: Connect it to the "V/Ω/Hz" terminal.
Standard/Judgment level
Should be no resistance (0.5 Ω or less)
 Testing procedure
1. Turn the tester on.

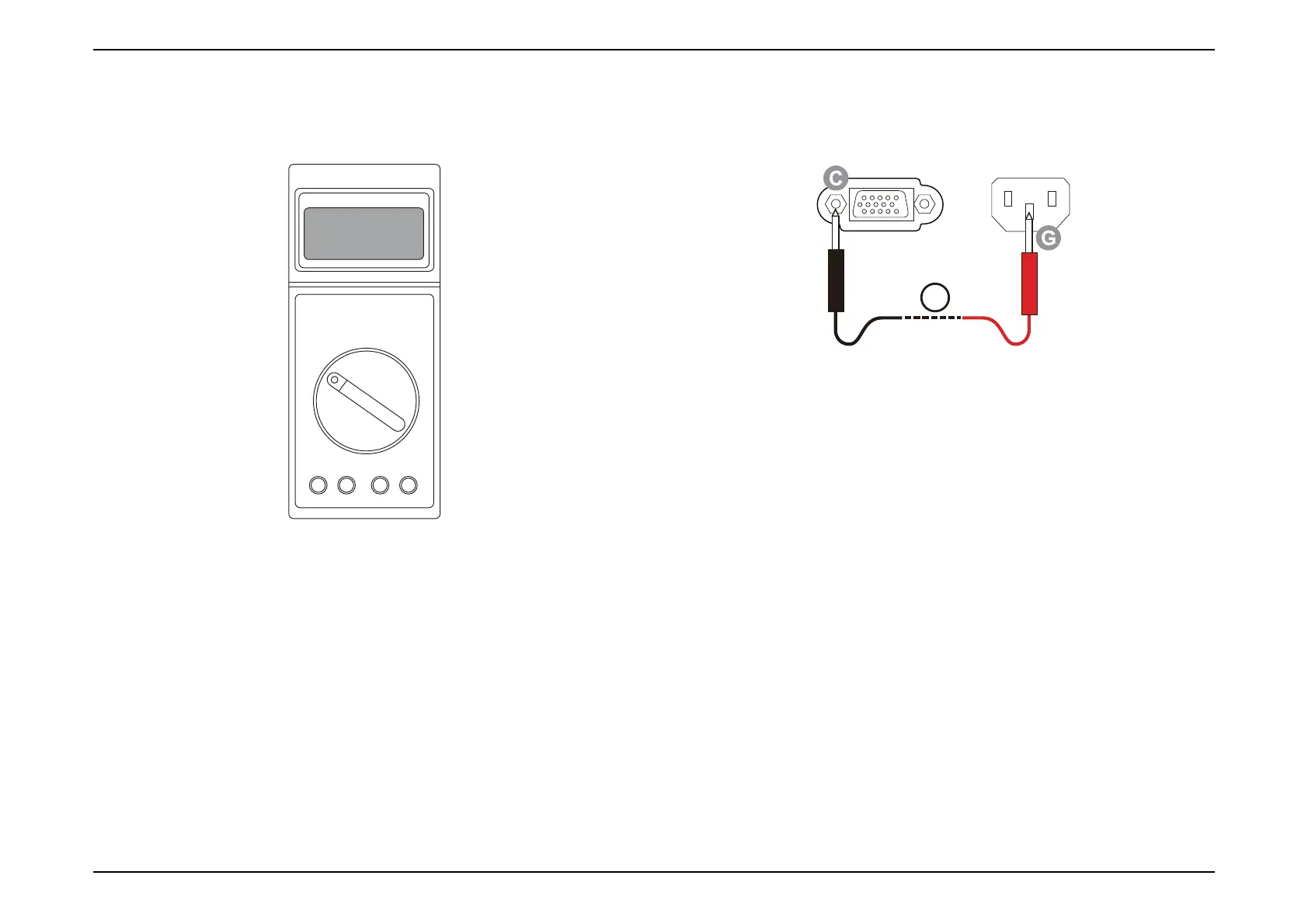

2. Check that the resistance between "C" of the Computer terminal and
"G" of the AC inlet of the projector (1) is 0.5 Ω or less.
 Measure EH-TW740 at the position in the figure below.
3.5.1.3 Illumination check
 Test conditions
Input a PC or video signal and check the illumination for about 5 minutes.
1. Judgment
Projector should operate normally with no smoke or fire.
1

Epson EB-W52 Specifications

General

Matrix size	0.59 \
Matrix type	3-panel (p-Si TFT active)
Native aspect ratio	16:10
Projection distance	1.68 - 2.02 m
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 320 \
Projector native resolution	WXGA (1280x800)
Keystone correction, horizontal	-30 - 30 °
RMS rated power	2 W
Focus	Manual
Throw ratio	1.3 - 1.56
Focal length range	16.9 - 20.28 mm
Product type	Standard throw projector
Product color	Black, White
Market positioning	Home cinema
Cable lock slot type	Kensington
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Built-in display	No
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Power consumption (typical)	327 W
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Noise level	37 dB
Noise level (economic mode)	28 dB

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	92 mm
Weight	2600 g
