Epson EB-W70 - Projector Parts - Rear; Projector Parts - Base

Projector Parts and Functions
10

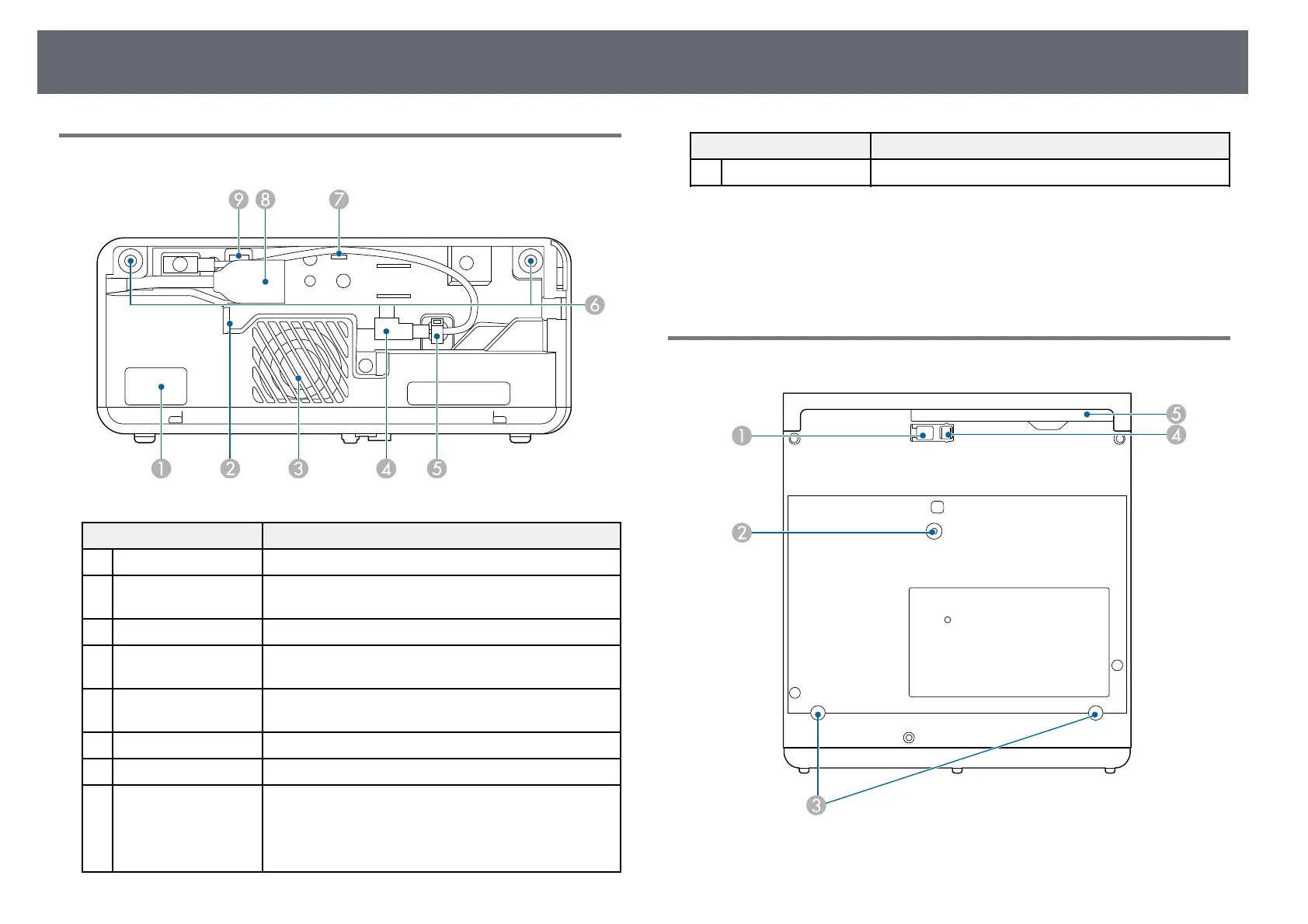

Projector Parts - Rear
Name Function
A
Remote receiver Receives signals from the remote control.
B
Air exhaust vent Exhaust vents for air used to cool the streaming media
player.
C
Speaker Outputs audio.
D
Power supply USB
cable
Connects to a streaming media player to power it.
E
Cable clamp Pass the power supply USB cable through here to
secure it.
F
Rear cover slots Slots to install the rear cover.
G
Cable hook Pass the power supply USB cable through here.
H
HDMI port with an
extension cable
Inputs video signals from a streaming media player or
other HDMI compatible video equipment.
This projector is compatible with HDCP.
You cannot remove this extension cable.
Name Function
I
Service port This port is not normally used.
gg Related Links
• "Remote Control Operation" p.24
• "Connecting to Video Sources" p.20
• "Connecting to a Streaming Media Player" p.18
Projector Parts - Base
