EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 102 Revision C
16. Remove the following parts from the Lower Case.
• Hexagonal nut x 3
• Lower Sheet
• Ring Plate (Boss)
• Ring Plate (Boss 2)
• RC Filter
• 3LCD Logo Plate

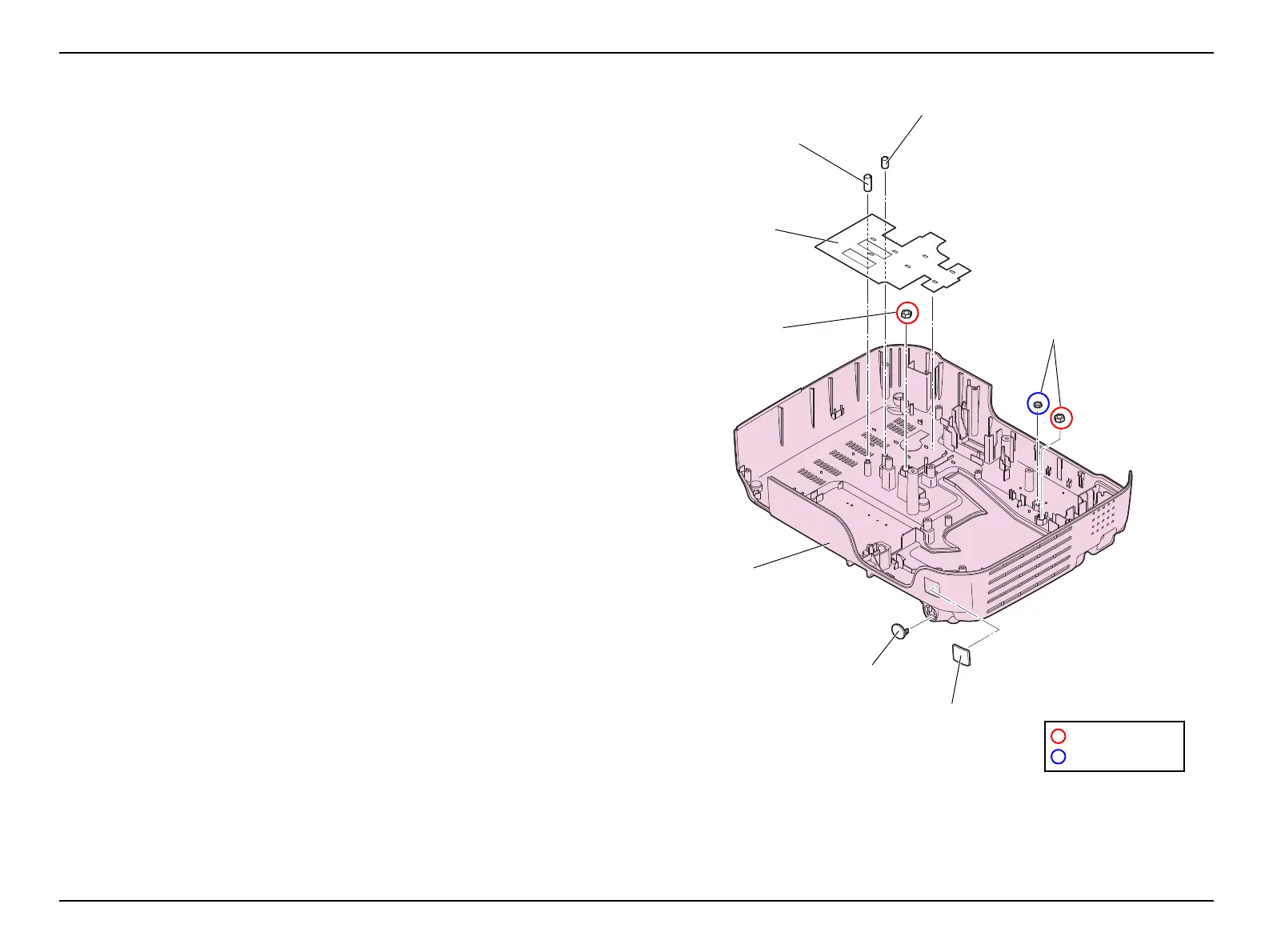

Figure 3-39.
Hexagonal nuts
Hexagonal nut
3LCD Logo Plate
RC Filter
6N-A,4,B/NI
H.N.-3,F/ZN-3C
Ring Plate (Boss)
Ring Plate (Boss 2)
Lower Sheet
Lower Case
