4.2.5 PBS MASK ASSY.2
1. Remove the LIGHT GUIDE,UPPER. (p.122)
2. Remove the two screws and remove the COVER,ML.
3. Remove the PBS MASK ASSY.2.
4. Remove the Spring,Mirror Fixing,FIF.

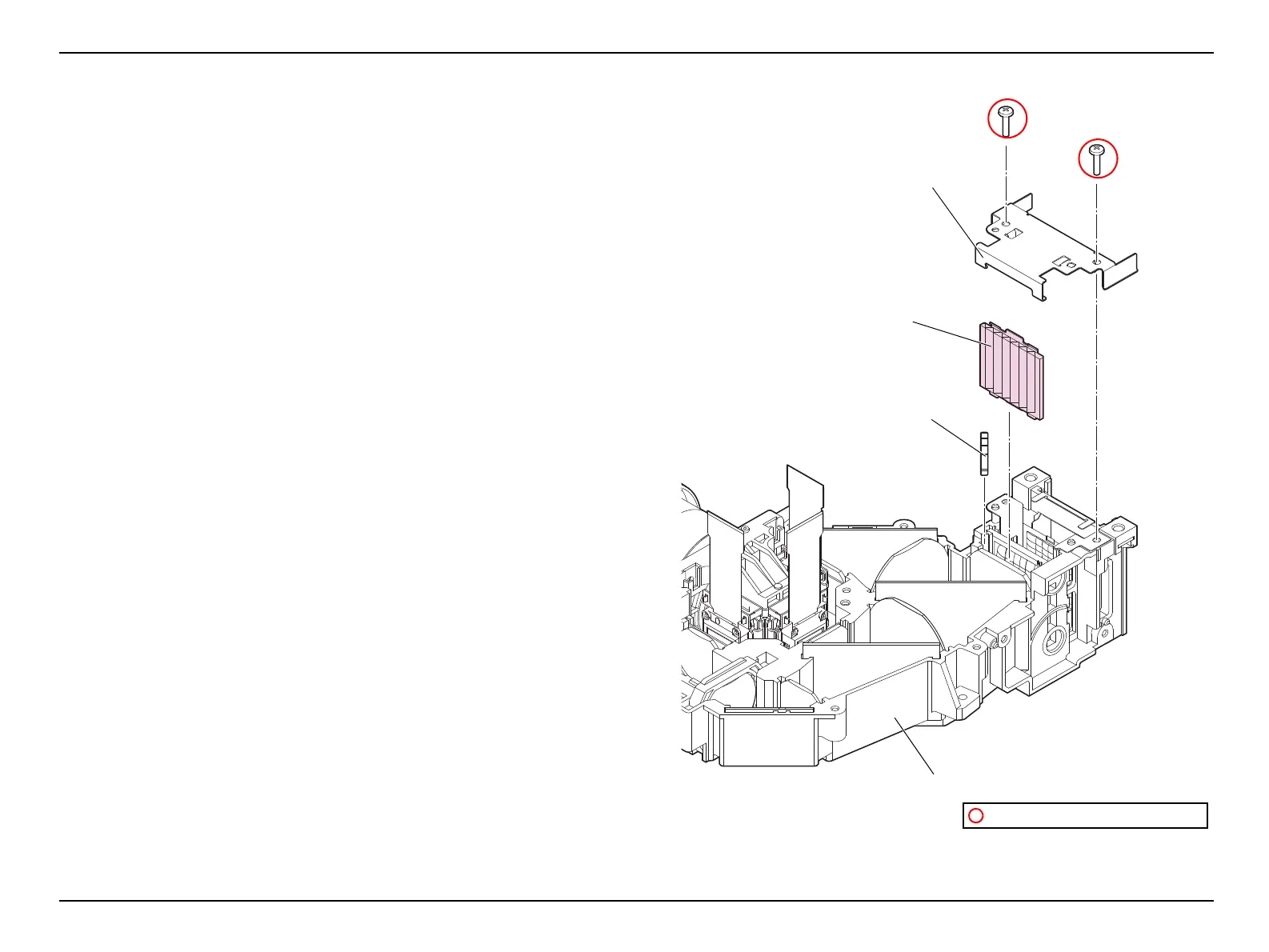

Figure 4-24.
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
PBS MASK ASSY.2
COVER,ML
LIGHT GUIDE,LOWER
Spring,Mirror Fixing,FIF
