EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480
Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 86 Revision C
3.3.9 Lamp Fan
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the MA Board (assembly). (p.74)
5. Remove the Optical Engine. (p.82)
6. Remove the Lamp Fan from the Lower Case.
7. Remove the INT Fan Cushion (x 2) from the Lamp Fan.

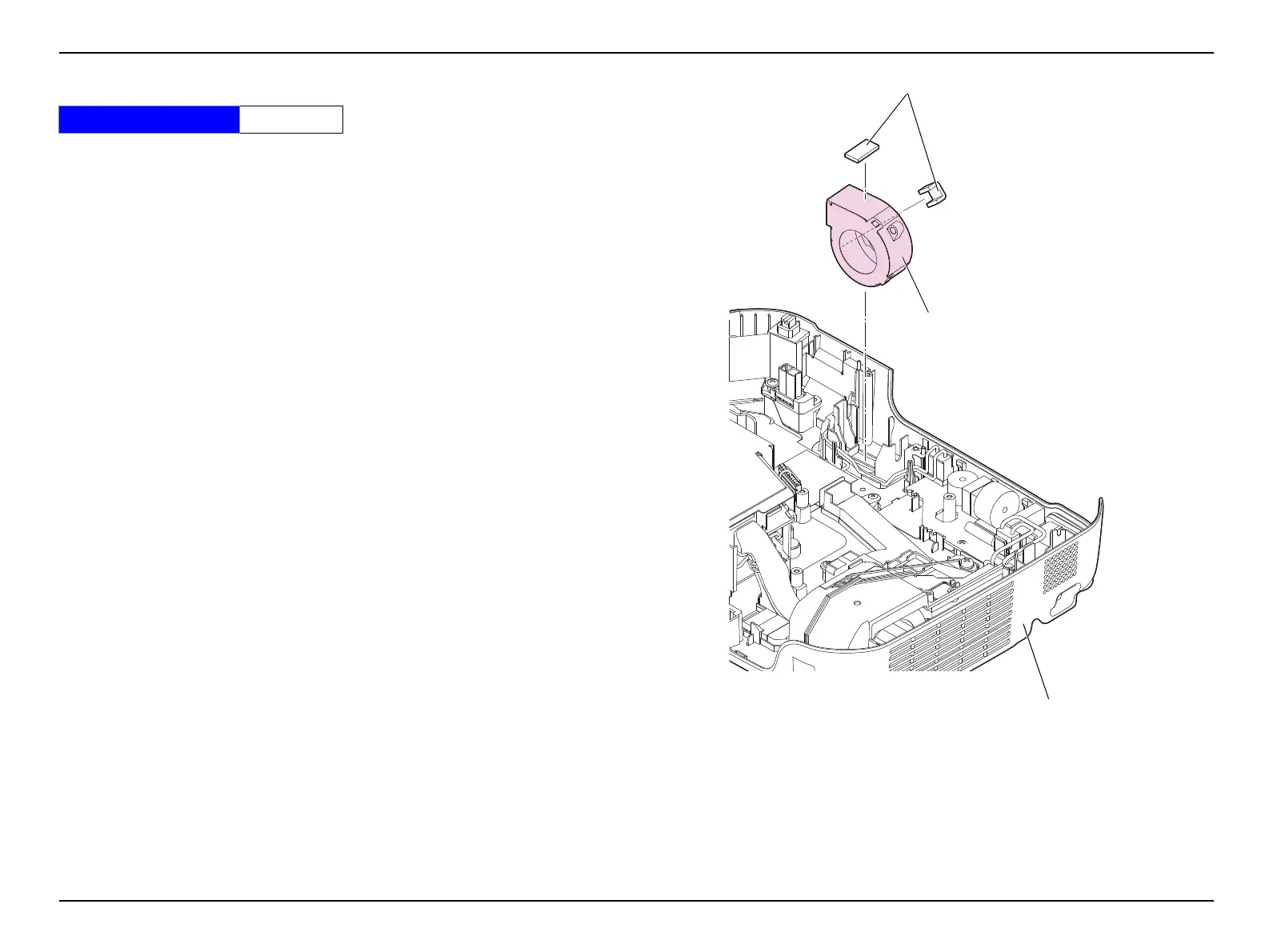

Figure 3-28.
Standard Operation Time 7 Min.
Lower Case
Lamp Fan
INT Fan Cushion
To Next Page
