3.3.12 INT Duct (assembly)
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the MA Board (assembly). (p.74)
5. Remove the Optical Engine. (p.82)
6. Remove the Lamp Fan. (p.86)
7. Remove the EX Duct (assembly). (p.87)
8. Remove the BA Power Supply (assembly). (p.89)
9. Remove the screw ( ).
10. Release the hook ( ) and remove the LV Duct 2.
11. Release the three hooks ( ) of the LV Duct Cover and remove the LV Duct
Cover.
12. Remove the six screws ( )( ) and remove the INT Duct (assembly).

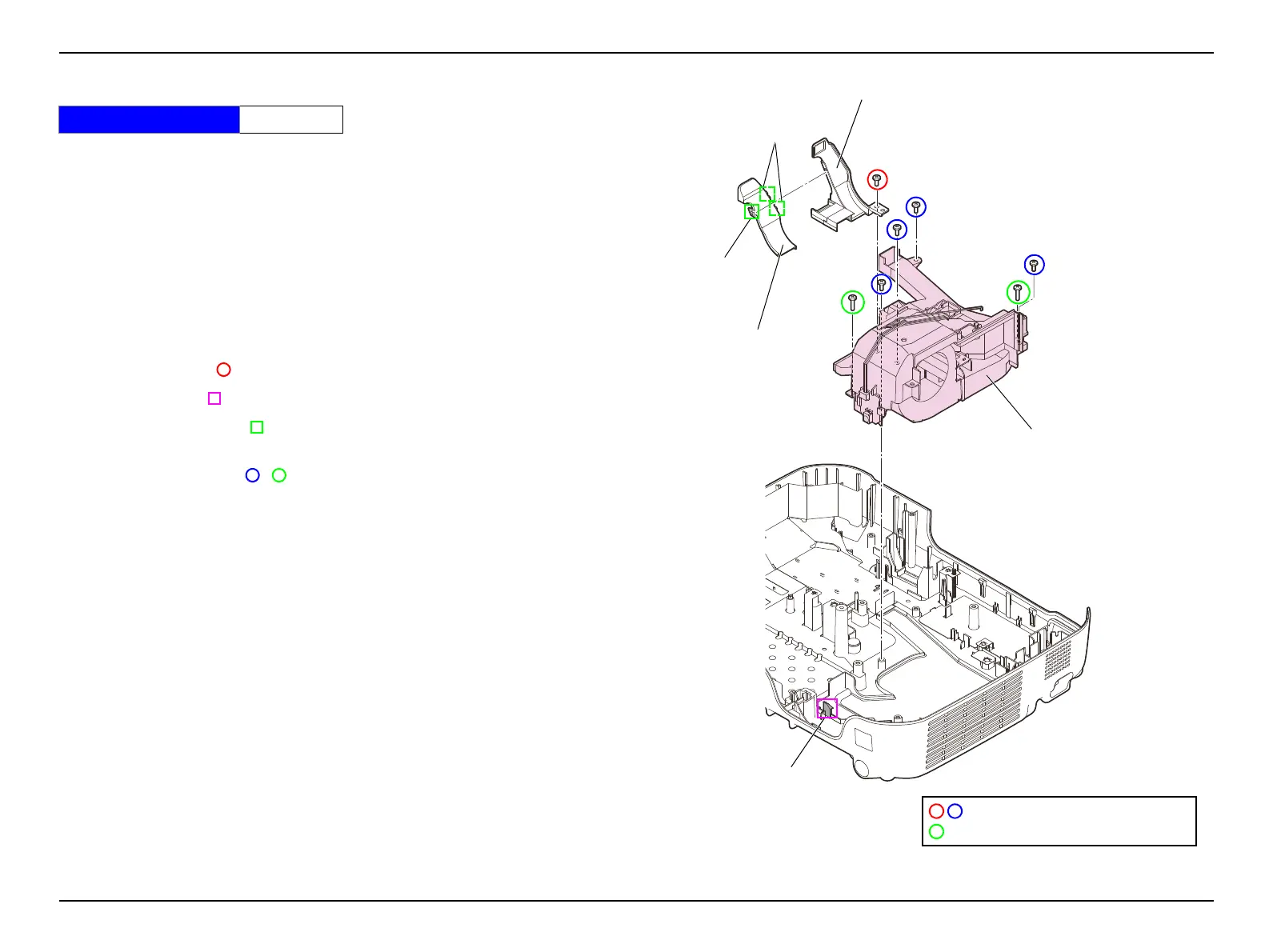

Figure 3-35.
Standard Operation Time 15 Min.
Hooks
Hook
LV Duct Cover
LV Duct 2
C.B.P-TITE SCREW,2.5X6,F/ZN-3C
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
INT Duct (assembly)
Hook
