Epson EB-X11 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 55 Revision C

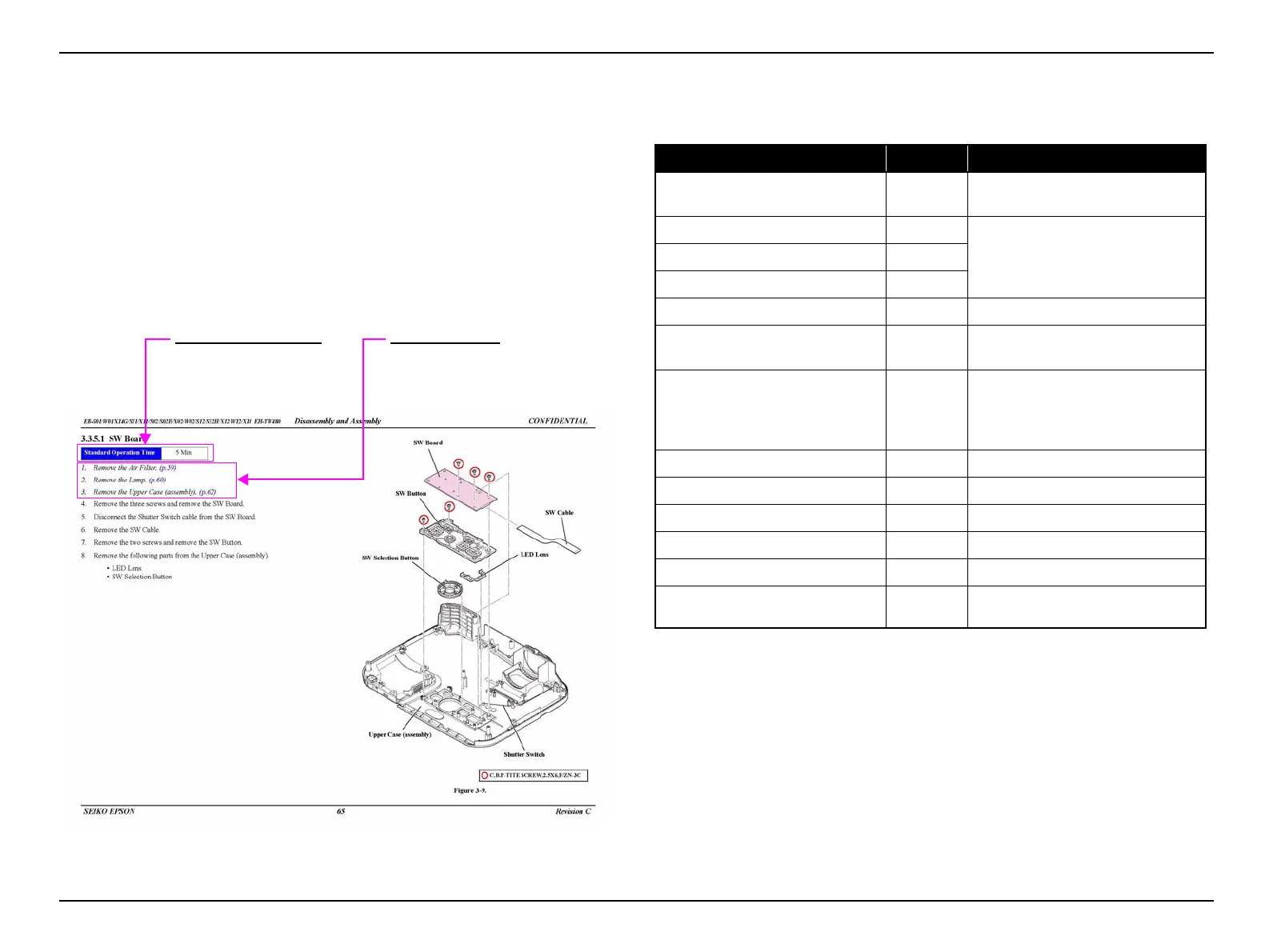

3.1.4 Standard Operation Time
The standard operation time for each operation is provided at the beginning of each
part. Use the time as a guideline for actual operation.
 Basis for the standard operation time
 A service employee would have sufficient knowledge for the target product’s
structure, and be able to disassemble/reassemble the product without any
reference to guide books.
 Each operation time is the total time of disassembling/removing the target part
following the given shortest procedure, and reassembling it.
 Guide to the standard operation time
3.1.5 Tools
The following table indicates the tools recommended for the use of disassembly,
reassembly and adjustment.
Note : *
1
q.s.: Sufficient quantity
*
2
Specified Lubricant: G-78 (AQUADRY W-0082)
Standard Operation Time:
The total time to disassemble/
reassemble the target part
following the shortest
procedure.
Shortest Procedure:
The shortest way to remove the
target part.
Tool Name Qt. Application
Phillips screwdriver No. 00 (8 cm) 1
Disassembling the focus ring and the
zoom ring
Phillips screwdriver No. 0 (8 cm) 1
Disassembling the outer cases and
inner components
Phillips screwdriver No. 1 (10 cm) 1
Phillips screwdriver No. 2 (10 cm) 1
Hexagonal box screwdriver (5 mm) 1 Removing the computer interface
Tweezers 1
Removing the Air Filter Cover Band
and disassembling the Front Foot
Heat-resistant tape q.s.*
1
Securing cables.
Use commercially available Polyimide
tape generally called “KAPTON®
TAPE”.
Brush 1 Cleaning away dust
Vacuum cleaner 1 Cleaning away dust
Lens cleaner q.s.*
1
Cleaning the projection lens
Gloves 1 pair
---
Anti-static wrist band 1
---
Lubricant *
2
q.s.*
1
Lubricating the shutter and its frame.
(See Shutter Switch (p.70))

Epson EB-X11 Specifications

General

Matrix size	0.55 \
Projection distance	1.8 - 2.17 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2080 ANSI lumens
Aspect ratio	4:3
RS-232 ports	1
Dimensions (WxDxH)	295 x 228 x 77 mm
Connectivity technology	Wired
F-number (relative aperture)	1.58
Focus	Manual
Offset	8:1 %
Throw ratio	1.48 - 1.77:1
Optical zoom	1.2 x
Focal length range	16.9 - 20.28 mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-A, USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	2
Full HD	Yes
Supported video modes	1080i
Supported graphics resolutions	1024 x 768 (XGA), 1920 x 1080 (HD 1080)
RMS rated power	2 W
Image formats supported	BMP, GIF, JPG, PNG
Noise level	37 dB
Preset modes	Cinema, Dynamic, Presentation, sRGB
Country of origin	China
Noise level (economic mode)	29 dB
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Pallet width	800 mm
Pallet height	2178 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	358 mm
Package width	357 mm
Package height	156 mm
Package weight	3500 g
