EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480
Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 69 Revision C
3.3.5.2 HK Assy (EB-X11/S12/S12H/X12/W12/X14 EH-TW480
only)
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)

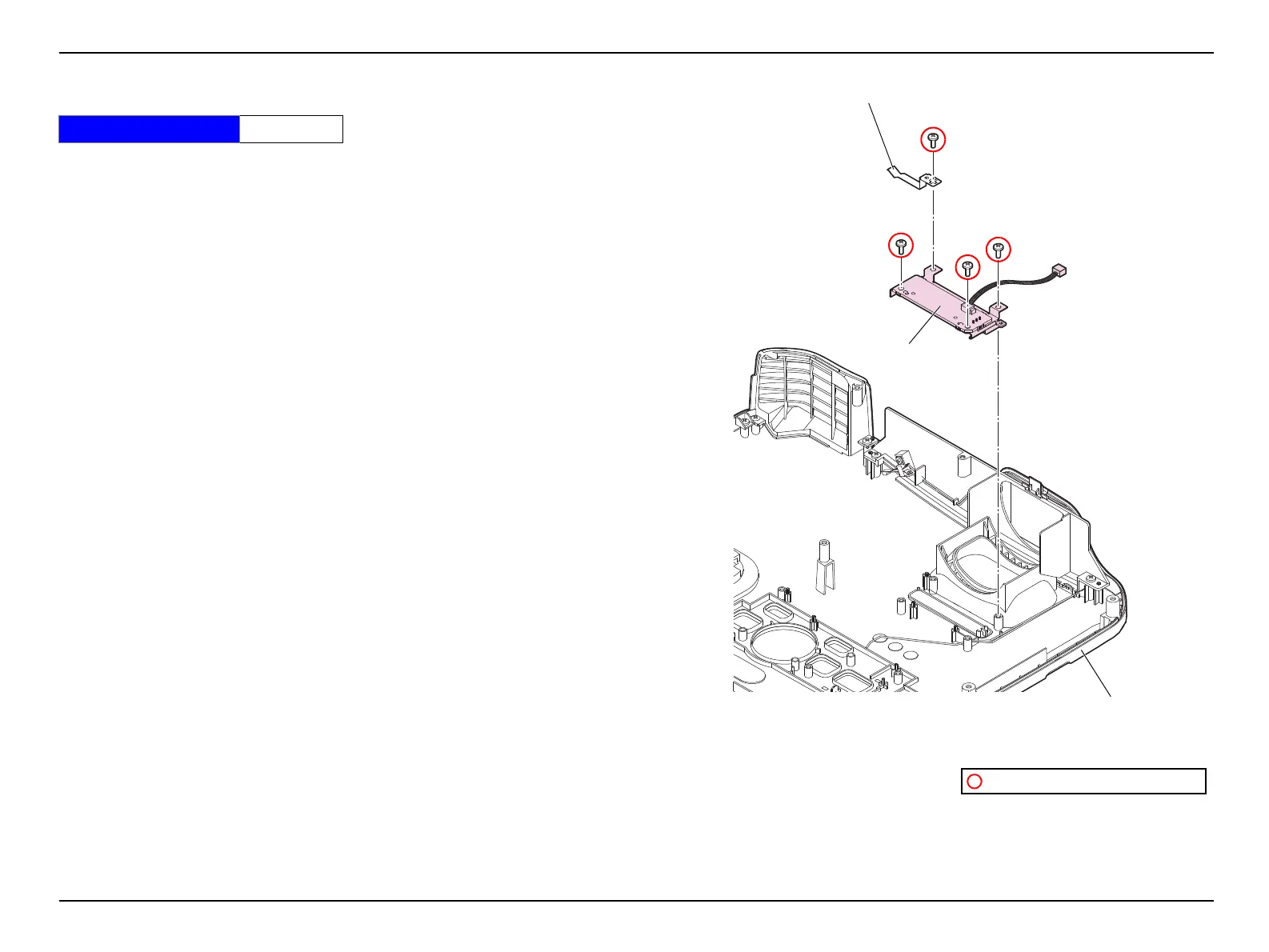

4. Remove the four screws and remove the HK Insulation Plate and HK Assy.
Figure 3-10.
Standard Operation Time 5 Min.
C.B.P-TITE SCREW,2.5X6,F/ZN-3C
HK Assy
Upper Case (assembly)
HK Insulation Plate
To Next Page
