 Obtaining the DR data
1. Obtain the corresponding DR data referring to the Technical Information
TI08-30e.
 Saving the data to the PC
2. Save the DR data file to the following folder in the PC.
C:\IRIS\DRDATA\
 Replacing it with a good MA Board
3. Prepare a good MA Board belonging to the same model group, and replace
the boards.
 Turning on the projector
4. Turn the projector ON.
 Connect the projector to the PC
5. Connect the projector to the PC using an RS-232C cable.
(Continued to the next page)
 Writing the DR data
6. Start up the CAT.
7. Select the group from [SETUP] - [SELECT MODEL] menu, by referring to
the number; *** and sax, that can be found in a file name;
“H***_xx_yyy_zzzzz_zzzzzz_zzzzzz.bin” of supplied DR data.

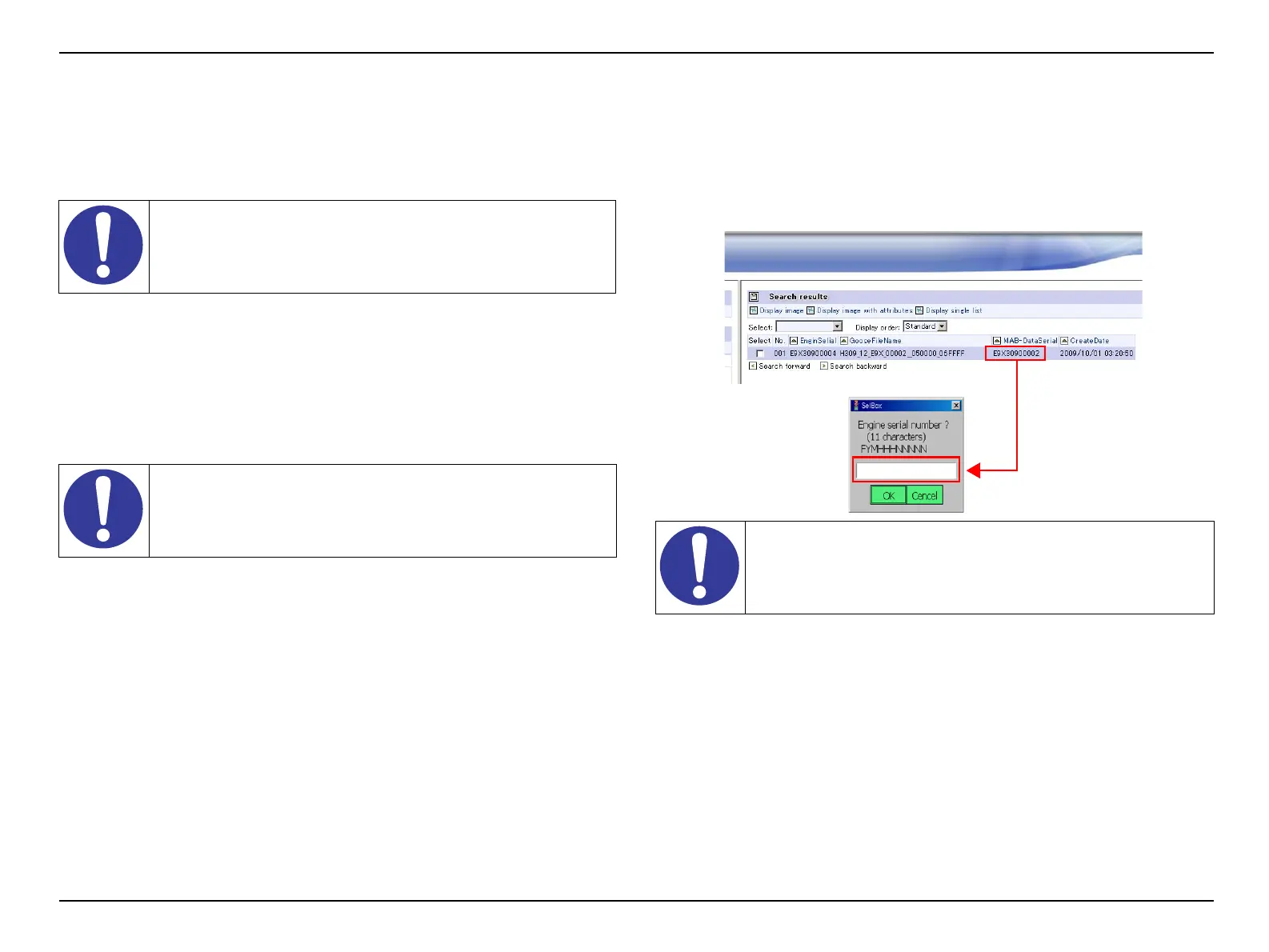

8. Enter serial number (11digits) that has been displayed in MAB-DataSerial
column as a result of retrieval. And then, execute RESTORE.
 Image/Operation check
9. Restart the projector (Power OFF - Power ON) once, and confirm there is no
problem in the projected image and operation.
 RESTORE cannot operate correctly if the DR data is not saved
in the specified folder.
 Do not change the name of the DR data file.
Refer to the user’s manual for communication configuration.
The DR data is not stored on a brand-new MA Board, and due to
this, “$$$$$$$$” appear on the menu screen when trying to restore
the DR data, but a restore operation itself can be completed
normally.
