Epson EB-X11 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Maintenance CONFIDENTIAL
SEIKO EPSON 123 Revision C

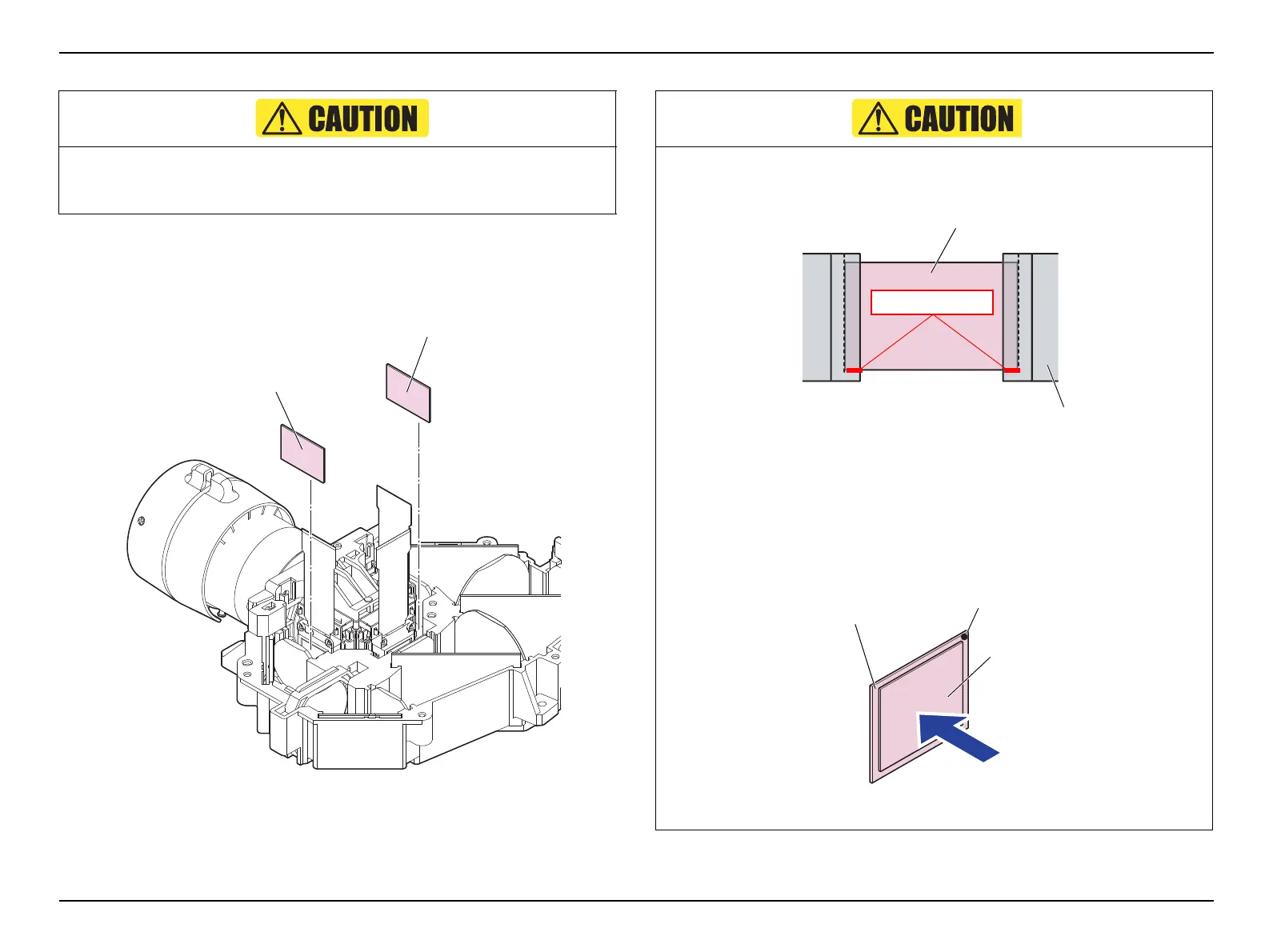

2. Remove the N POLARIZER UNIT;B.
3. Remove the N POLARIZER UNIT;R.
Figure 4-5.
When reassembling the LIGHT GUIDE,UPPER, make sure to re-install the N
POLARIZER ADJUST ASSY;G;AS into the correct location taking care not to
damage it or mis-align the adjusted parts.
N POLARIZER UNIT;B
N POLARIZER UNIT;R
 Insert the N POLARIZER UNIT;B and N POLARIZER UNIT;R without
any gap between the bottom of them and the Lower Light Guide Assy.
Figure 4-6.
 Install the N POLARIZER UNIT;B taking care in the following instructions.
• Black marking on the top right as seen from the incidence side.
• Hold the edges of the N POLARIZER UNIT;B, and make sure not to
touch the polarizer surface.
Figure 4-7.
LIGHT GUIDE,LOWER
No gap in between
N POLARIZER UNIT;B/R
N POLARIZER UNIT;B
Black Marking
Incidence side
The side with the polarizer
attached

Epson EB-X11 Specifications

General

Matrix size	0.55 \
Projection distance	1.8 - 2.17 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2080 ANSI lumens
Aspect ratio	4:3
RS-232 ports	1
Dimensions (WxDxH)	295 x 228 x 77 mm
Connectivity technology	Wired
F-number (relative aperture)	1.58
Focus	Manual
Offset	8:1 %
Throw ratio	1.48 - 1.77:1
Optical zoom	1.2 x
Focal length range	16.9 - 20.28 mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-A, USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	2
Full HD	Yes
Supported video modes	1080i
Supported graphics resolutions	1024 x 768 (XGA), 1920 x 1080 (HD 1080)
RMS rated power	2 W
Image formats supported	BMP, GIF, JPG, PNG
Noise level	37 dB
Preset modes	Cinema, Dynamic, Presentation, sRGB
Country of origin	China
Noise level (economic mode)	29 dB
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Pallet width	800 mm
Pallet height	2178 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	358 mm
Package width	357 mm
Package height	156 mm
Package weight	3500 g
