EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480
Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 65 Revision C

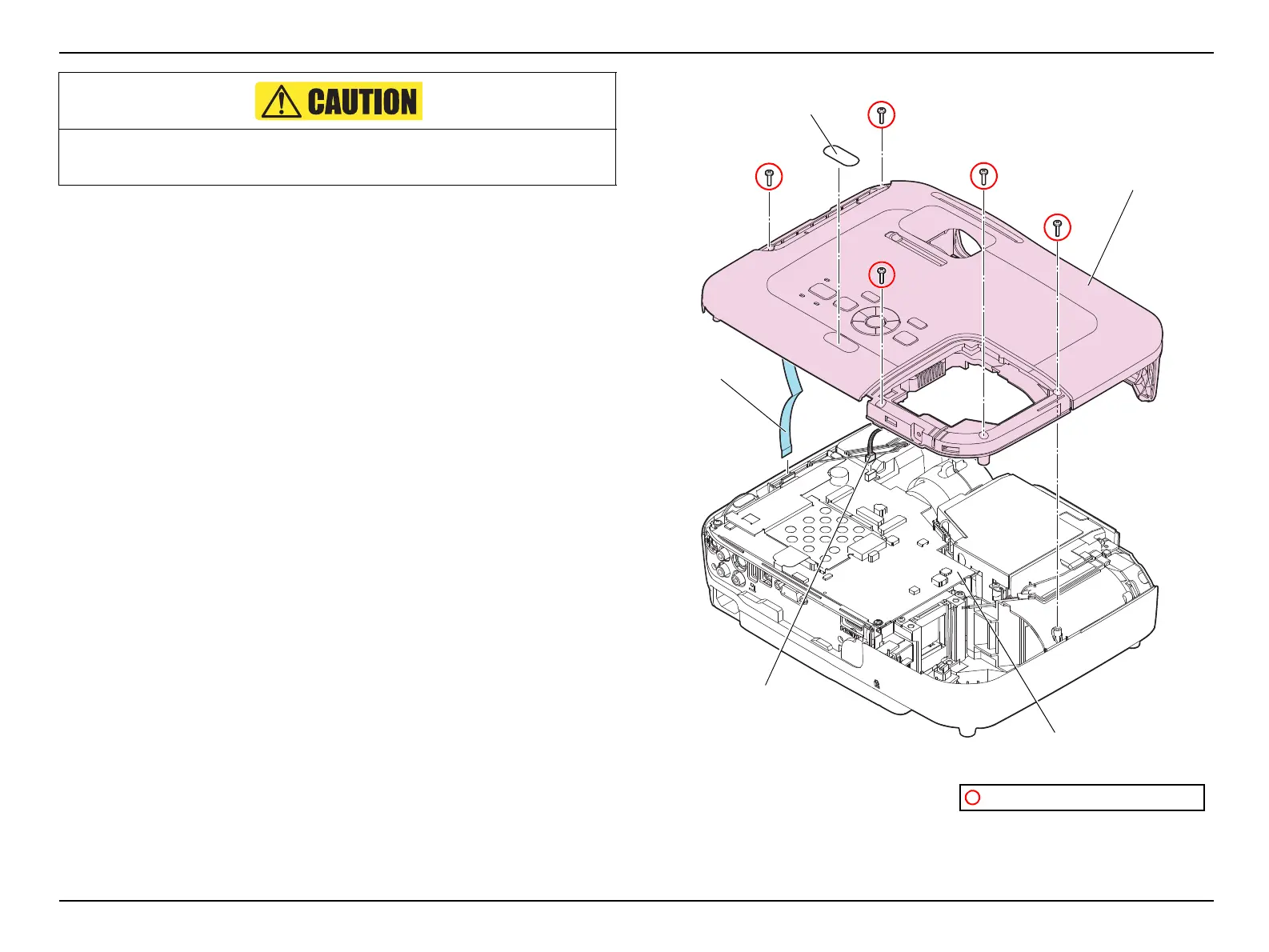

4. Remove the five screws on top (Upper Case side).
5. Disconnect the SW Cable and the cable of HK Assy from the MA Board, and
remove the Upper Case (assembly).
6. Remove the Model Plate from the Upper Case (assembly).
Figure 3-8.
In the next step, make sure not to pull away the Upper Case (assembly) too far
because the cables are connected to the case.
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
Upper Case (assembly)
MA Board
SW Cable
Cable (HK Assy)
Model Plate
To Next Page
