Introduction
8

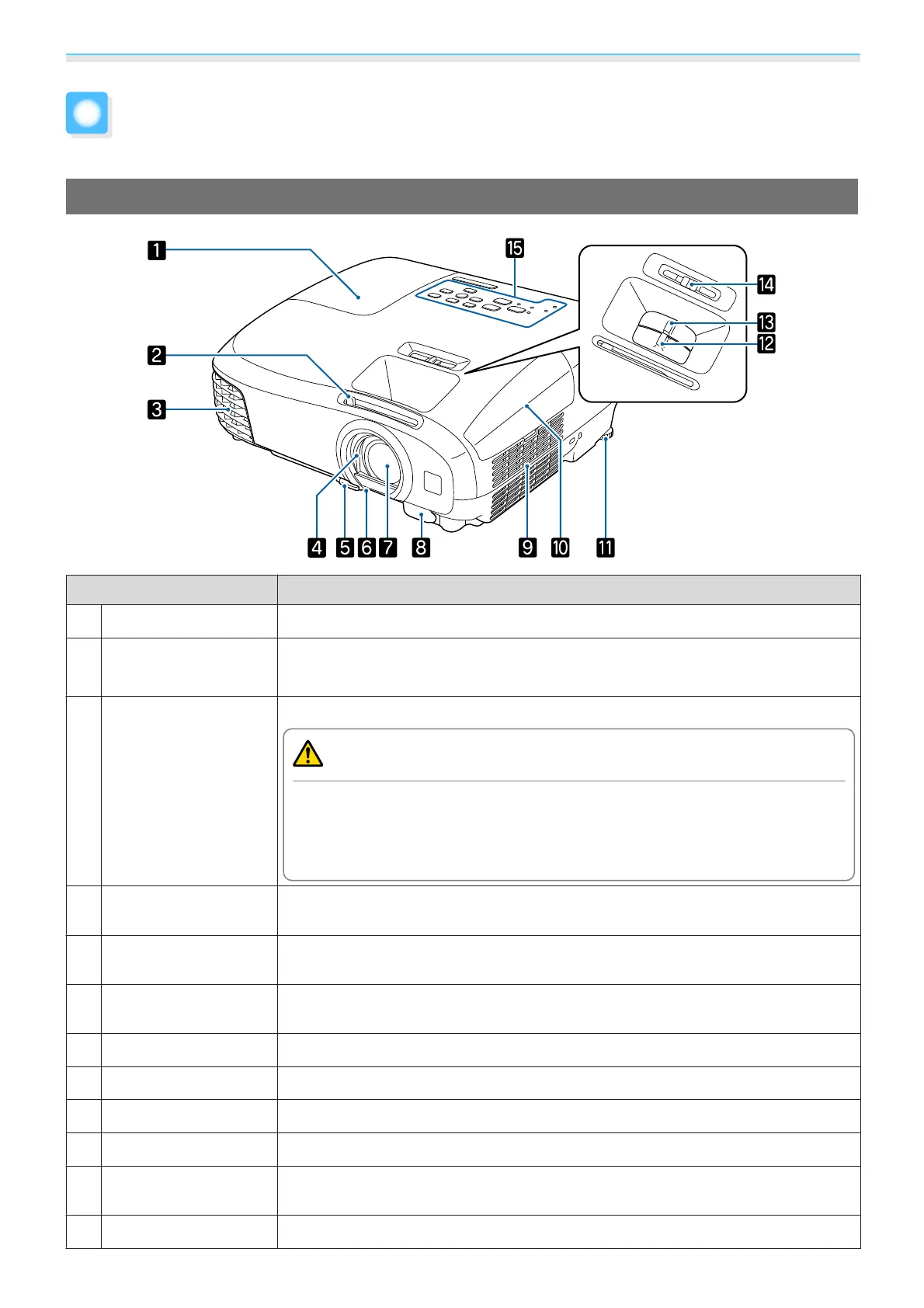

Part Names and Functions
Front/Top
Name Function
a
Lamp cover
Open when replacing the projector's lamp. s p.92
b
A/V mute slide lever
Slide the knob to open and close the lens cover.
Close during projection to delete audio and video.
s p.32
c
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands near the air exhaust vent,
and do not place objects that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could cause burns, warping, or
accidents to occur.
d
Lens cover
Close when not using the projector to protect the lens from being scratched or
soiled.
s p.28
e
Foot release lever
Press the foot release lever to extend and retract the front adjustable foot.
s p.29
f
Front adjustable foot
When set up on a surface such as a table, extend the foot to adjust the height of
the image.
s p.29
g
Lens
Images are projected from here.
h
Remote receiver
Receives signals from the remote control. s p.25
i
Air intake vent
Intake vent for air used to cool the projector internally.
j
Air filter cover
When replacing the air filter, open this cover and remove the air filter. s p.92
k
Rear foot
When set up on a surface such as a table, extend the foot to adjust horizontal tilt.
s p.30
l
Focus ring
Adjusts the image focus. s p.29
To Next Page
