EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 104 Revision A

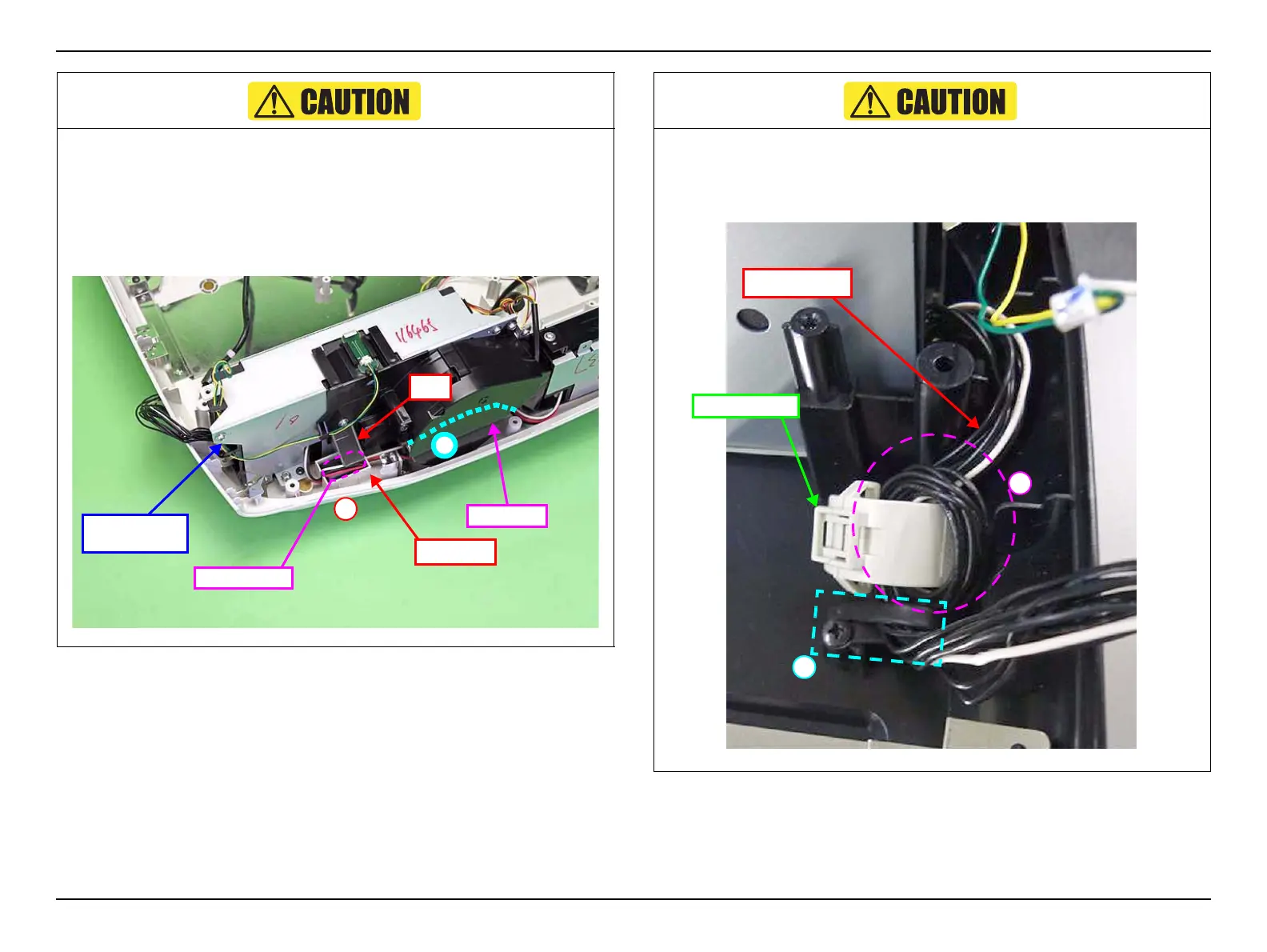

Route the Power Supply (assembly) cable and secure the ferrite core as shown in
the figure.
1. Set the ferrite core into the fixing hole and secure it with the rib (1) of the Power
Supply (assembly).
2. Route the Power Supply (assembly) cable under the fan of the Power Supply
(assembly) (2).
Power Supply
(assembly)
1
Rib
Fixing hole
Ferrite Core
2
PS Fan
Route the PS Unit cable as follows.
1. Route the cable through the ferrite core (1) two times.
2. Secure the cable with the Cable Clip.
1
Ferrite Core
PS Unit cable
2
